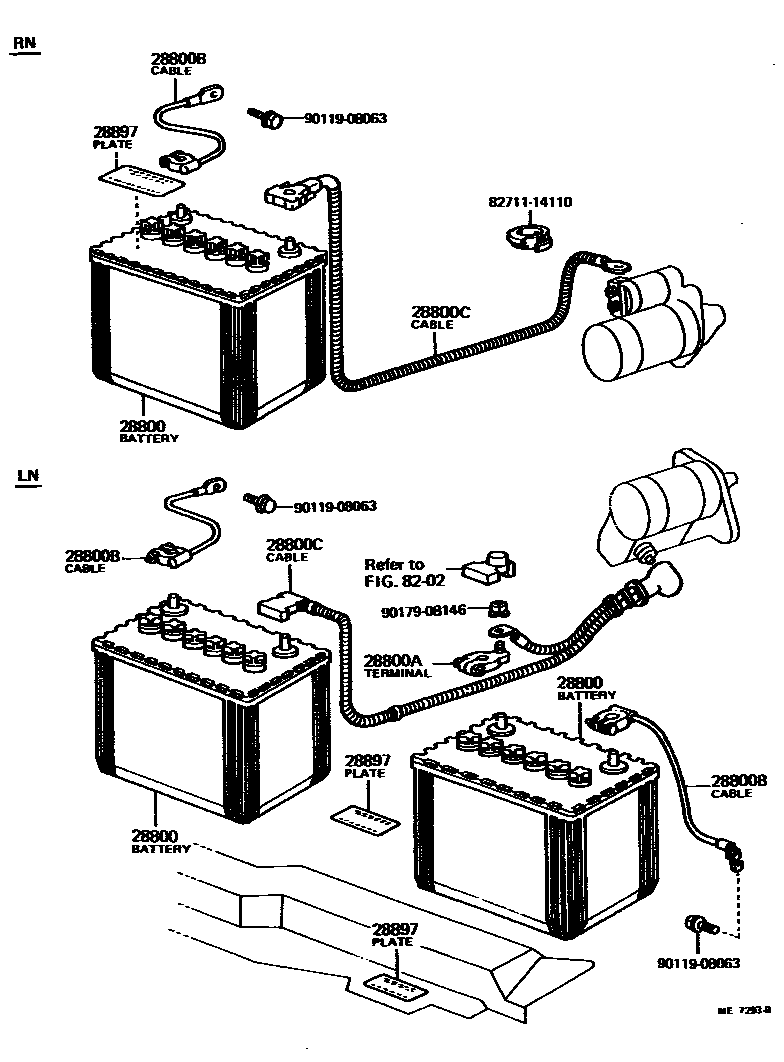

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i22R..RN34..4F..USA..CBU;22R..RN44..(4F,4FC)..(DLX,STD)..USA..CBU198210-198307

55D23R,55D23R(TAIL GATE=2-LATCH)

main28800-14030i22R..RN3#,4#..USA198208-198307

50D20R,50D20R-MF

main28800-15010i22R..RN3#,4#..USA198208-198307

55D23R,55D23R-MF

main28800-27030i22R..RN3#,4#..USA198008-198208

N50-MF(50AH)

main28800-30082i22R..RN34..4F..USA..CBU;22R..RN44..(4F,4FC)..(DLX,STD)..USA..CBU198205-198307

48D26R,N50(TAIL-GATE=2-LATCH)

main28800-33111i22R..RN3#,4#..CND198008-198208

55D26R,N50Z(60AH)

main28800-34010i20R..RN3#,4#..USA197808-198008

N50(50AH)

main28800-38010i22R..RN3#,4#..USA198008-198208

N50Z-MF(60AH)

main28800-54100iL..LN40198101-198307

NX110-5,GS(65AH)

main28800-54110iL..LN40198101-198307

NX110-5L,GS(65AH)

main28800-54120iL..LN40198101-198307

NX110-5,YUASA(65AH)

main28800-54130iL..LN40198101-198307

NX110-5L,YUASA(65AH)

28800ATERMINAL, BATTERY POSITIVE

main90982-05005iL..LN40198101-198307

28800BCABLE, BATTERY TO GROUND

main90982-02008iL..LN40198101-198307

RH BATTERY

main90982-02009iL..LN40198101-198307

LH BATTERY

main90982-02156i20R,22R..RN3#,4#197808-198307

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01260i20R..RN32,42..USA197808-198008

main90982-01290i20R..RN32,42197808-198008

W/12V 1.4KW STARTER

main90982-01326i20R..RN37197808-198008

W/12V 1.4KW STARTER

main90982-01387iL..LN40198101-198307

main90982-01391i22R..RN34,44198008-198108

main90982-01399i22R..RN38,48198011-198307

main90982-01402i22R..RN34,44198108-198307

28897PLATE, BATTERY CAUTION

main28897-38010i20R,22R..RN3#,4#..CND197810-198307

main28897-45010i20R..RN3#,4#..USA197808-198008

main28897-54010iL..LN40..CND198101-198307

BATTERY

main28897-54020iL..LN40..CND198101-198307

LH RADIATOR SUPPORT

main28897-54030iL..LN40..USA198101-198307

LH RADIATOR SUPPORT

8202WIRING & CLAMP

→ Go to FIG 82-02

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9011908063

main90119-08063

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
