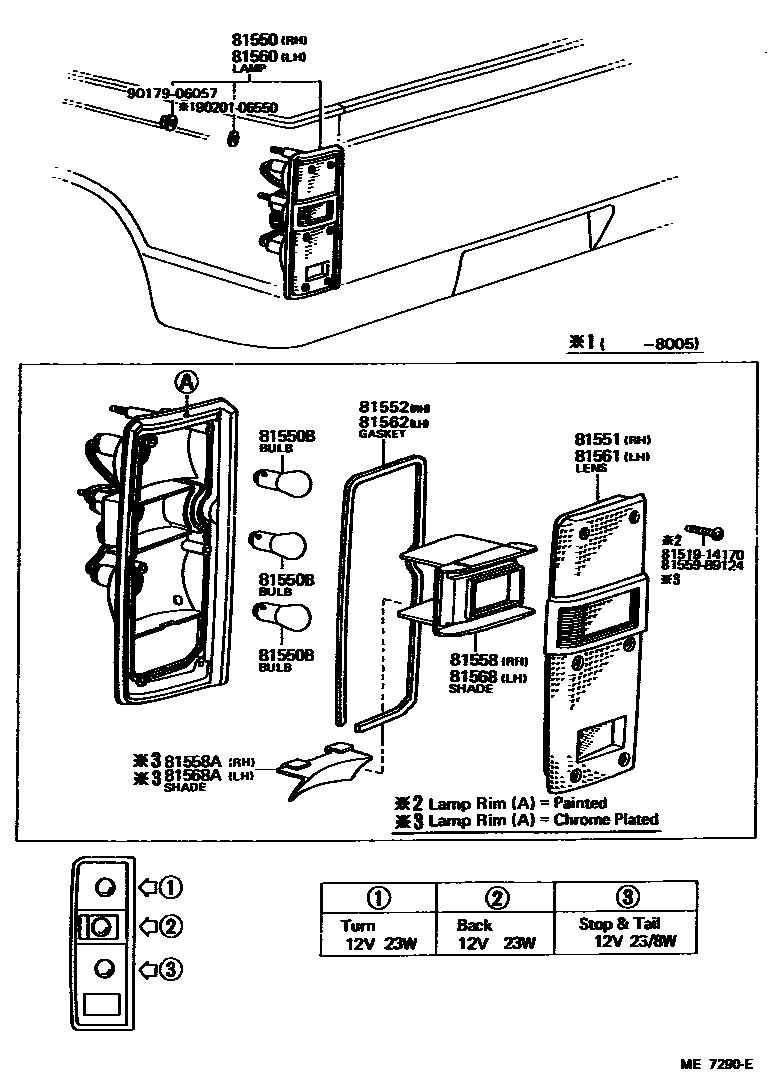

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39505iRN3#,42197808-198008

main81550-39625iLN40,RN3#,4#198008-198307

LAMP RIM(A)=PAINTED

main81550-39785iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4iLN40,RN3#,4#197808-198307

12V 23W,12V 23W

main99132-21230×2iLN40,RN3#,4#197808-198307

12V 23/8W,12V 23/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-89122iLN40,RN3#,4#197808-198307

LAMP RIM(A)=PAINTED

main81551-89123iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-89122iLN40,RN3#,4#197808-198307

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-89122iLN40,RN3#,4#197808-198307

LAMP RIM(A)=PAINTED

main81557-89124iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-89123iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

81560LAMP ASSY, REAR COMBINATION, LH

main81560-39475iRN3#,42197808-198008

main81560-39585iLN40,RN3#,4#198008-198307

LAMP RIM(A)=PAINTED

main81560-39745iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

81561LENS, REAR COMBINATION LAMP, LH

main81561-89122iLN40,RN3#,4#197808-198307

LAMP RIM(A)=PAINTED

main81561-89123iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89122iLN40,RN3#,4#197808-198307

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-89122iLN40,RN3#,4#197808-198307

LAMP RIM(A)=PAINTED

main81557-89124iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81567-89120iRN44..5F..SR5..CBU198301-198307

LAMP RIM(A)=CHROME PLATED

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124

9017906057

main90179-06057

9020106550

main90201-06550

15 parts on this diagram · 1 diagram in section
