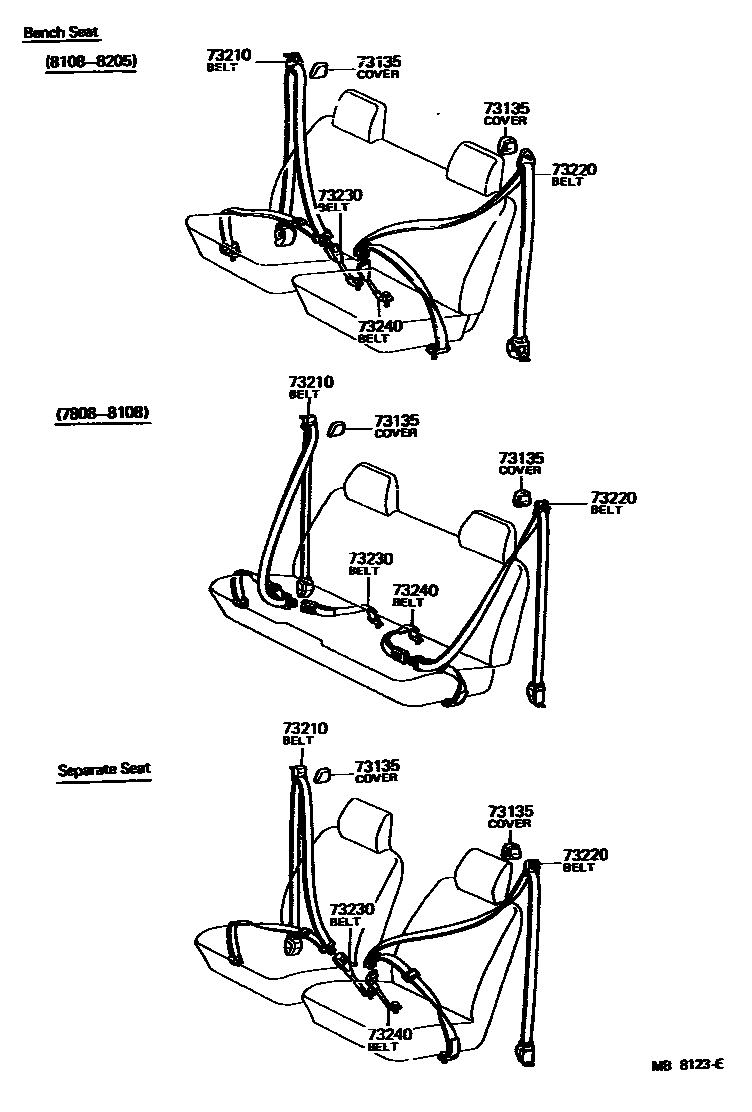

SEAT BELT

0001 1 0002 1

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-89101-01iLN40,RN3#,4#197808-198307

BLACK,BLACK

main73135-89101-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

main73135-89101-05iLN40,RN3#,4#197808-198307

BEIGE,BEIGE

main73135-89101-06iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,DARK BROWN,BROWN

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-89103-01iRN3#,4#197808-198011

BLACK,BLACK

main73210-89103-04iRN3#,4#197808-198011

BLUE,BLUE

main73210-89103-05iRN3#,4#197808-198011

BEIGE,BEIGE

main73210-89112-01iLN40,RN3#,4#198011-198108

BLACK,BLACK

main73210-89112-04iLN40,RN3#,4#198011-198108

BLUE,BLUE

main73210-89112-05iLN40,RN3#,4#198011-198108

BEIGE,BEIGE

main73210-89113-01iLN40,RN3#,4#198108-198307

BLACK,BLACK

main73210-89113-04iLN40,RN3#,4#198108-198307

BLUE,BLUE

main73210-89113-05iLN40,RN3#,4#198108-198307

BEIGE,BEIGE

main73210-89113-06iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN,BROWN

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-89103-01iRN3#,4#197808-198011

BLACK,BLACK

main73210-89103-04iRN3#,4#197808-198011

BLUE,BLUE

main73210-89103-05iRN3#,4#197808-198011

BEIGE,BEIGE

main73210-89112-01iLN40,RN3#,4#198011-198108

BLACK,BLACK

main73210-89112-04iLN40,RN3#,4#198011-198108

BLUE,BLUE

main73210-89112-05iLN40,RN3#,4#198011-198108

BEIGE,BEIGE

main73210-89113-01iLN40,RN3#,4#198108-198307

BLACK,BLACK

main73210-89113-04iLN40,RN3#,4#198108-198307

BLUE,BLUE

main73210-89113-05iLN40,RN3#,4#198108-198307

BEIGE,BEIGE

main73210-89113-06iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN,BROWN

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-89105-01iRN44..4FC..SR5;RN3#,4#..DLX,STD197808-198011

BLACK,BLACK

main73230-89105-04iRN44..4FC..SR5;RN3#,4#..DLX,STD197808-198011

BLUE,BLUE

main73230-89105-05iRN44..4FC..SR5;RN3#,4#..DLX,STD197808-198011

BEIGE,BEIGE

main73230-89106-01iRN42..DLX..HVY197808-198011

BLACK,BLACK

main73230-89106-01iRN38,48198008-198011

SEPARATE SEAT,BLACK,BLACK

main73230-89106-04iRN32,42..SR5197808-197901

BLUE,BLUE

main73230-89106-05iRN32,42..SR5197808-197901

BEIGE,BEIGE

main73230-89106-14iRN44..HVY;RN34,44..5F..SR5197901-198011

BLUE,BLUE

main73230-89106-14iRN44..HVY;RN34,44..5F..SR5198008-198011

SEPARATE SEAT,BLUE,BLUE

main73230-89106-15iRN44..HVY;RN34,44..5F..SR5197901-198011

BEIGE,BEIGE

main73230-89106-15iRN44..HVY;RN34,44..5F..SR5198008-198011

SEPARATE SEAT,BEIGE,BEIGE

main73230-89114-01iRN44..4FC..SR5;LN40,RN3#,4#..DLX,STD198011-198108

BLACK,BLACK

main73230-89114-04iRN44..4FC..SR5;LN40,RN3#,4#..DLX,STD198011-198108

BLUE,BLUE

main73230-89114-05iRN44..4FC..SR5;LN40,RN3#,4#..DLX,STD198011-198108

BEIGE,BEIGE

main73230-89115-01iRN44..HVY;RN34,44..5F..SR5198011-198108

SEPARATE SEAT,BLACK,BLACK

main73230-89115-01iRN44..HVY;RN34,44..5F..SR5198011-198108

BLACK,BLACK

main73230-89115-04iRN38,48198011-198108

BLUE,BLUE

main73230-89115-04iRN44..HVY;RN34,44..5F..SR5198011-198108

SEPARATE SEAT,BLUE,BLUE

main73230-89115-05iRN38,48198011-198108

SEPARATE SEAT,BEIGE,BEIGE

main73230-89115-05iRN44..HVY;RN34,44..5F..SR5198011-198108

BEIGE,BEIGE

main73230-89116-01iLN40,RN3#,4#198108-198205

BLACK,BLACK

main73230-89116-14iLN40,RN3#,4#198108-198205

BLUE,BLUE

main73230-89116-15iLN40,RN3#,4#198108-198205

BEIGE,BEIGE

main73230-89118-01iLN40,RN34,44..(DLX,STD)..(3QT,HLF)198205-198307

BLACK,BLACK

main73230-89118-14iRN44..STD..HVY198205-198307

BLUE,BLUE

main73230-89118-15iRN44..STD..HVY198205-198307

BEIGE,BEIGE

main73230-89120-01iLN40,RN34,44..SR5198205-198307

BLACK,BLACK

main73230-89120-06iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN,BROWN

main73230-89120-14iRN38,48198205-198307

BLUE,BLUE

main73230-89120-15iLN40,RN34,44..SR5198205-198307

BEIGE,BEIGE

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-89104-01iRN44..4FC..SR5;RN3#,4#..DLX,STD197808-198011

BLACK,BLACK

main73240-89104-04iRN44..4FC..SR5;RN3#,4#..DLX,STD197808-198011

BLUE,BLUE

main73240-89104-05iRN44..4FC..SR5;RN3#,4#..DLX,STD197808-198011

BEIGE,BEIGE

main73240-89105-01iRN32,42..SR5197808-198011

BLACK,BLACK

main73240-89105-01iRN38,48198008-198011

SEPARATE SEAT,BLACK,BLACK

main73240-89105-04iRN32,42..SR5197808-197901

BLUE,BLUE

main73240-89105-05iRN32,42..SR5197808-197901

BEIGE,BEIGE

main73240-89105-14iRN44..HVY;RN34,44..5F..SR5197901-198011

BLUE,BLUE

main73240-89105-14iRN44..HVY;RN34,44..5F..SR5198008-198011

SEPARATE SEAT,BLUE,BLUE

main73240-89105-15iRN38,48197901-198011

BEIGE,BEIGE

main73240-89105-15iRN38,48198008-198011

SEPARATE SEAT,BEIGE,BEIGE

main73240-89111-01iRN44..4FC..SR5;LN40,RN3#,4#..DLX,STD198011-198108

BLACK,BLACK

main73240-89111-04iRN44..4FC..SR5;LN40,RN3#,4#..DLX,STD198011-198108

BLUE,BLUE

main73240-89111-05iRN44..4FC..SR5;LN40,RN3#,4#..DLX,STD198011-198108

BEIGE,BEIGE

main73240-89112-01iRN38,48198011-198108

BLACK,BLACK

main73240-89112-01iRN44..HVY;RN34,44..5F..SR5198011-198108

SEPARATE SEAT,BLACK,BLACK

main73240-89112-04iRN44..HVY;RN34,44..5F..SR5198011-198108

BLUE,BLUE

main73240-89112-04iRN44..HVY;RN34,44..5F..SR5198011-198108

SEPARATE SEAT,BLUE,BLUE

main73240-89112-05iRN44..HVY;RN34,44..5F..SR5198011-198108

BEIGE,BEIGE

main73240-89112-05iRN44..HVY;RN34,44..5F..SR5198011-198108

SEPARATE SEAT,BEIGE,BEIGE

main73240-89113-01iLN40,RN3#,4#198108-198205

BLACK,BLACK

main73240-89113-14iLN40,RN3#,4#198108-198205

BLUE,BLUE

main73240-89113-15iLN40,RN3#,4#198108-198205

BEIGE,BEIGE

main73240-89115-01iRN44..STD..HVY198205-198307

BLACK,BLACK

main73240-89115-14iRN44..STD..HVY198205-198307

BLUE,BLUE

main73240-89115-15iRN44..STD..HVY198205-198307

BEIGE,BEIGE

main73240-89116-01iRN38,48198205-198307

BLACK,BLACK

main73240-89116-06iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN,BROWN

main73240-89116-14iRN44..DLX..HVY198205-198307

BLUE,BLUE

main73240-89116-15iRN38,48198205-198307

BEIGE,BEIGE

5 parts on this diagram · 2 diagrams in section
