EPC Data

SEAT & SEAT TRACK

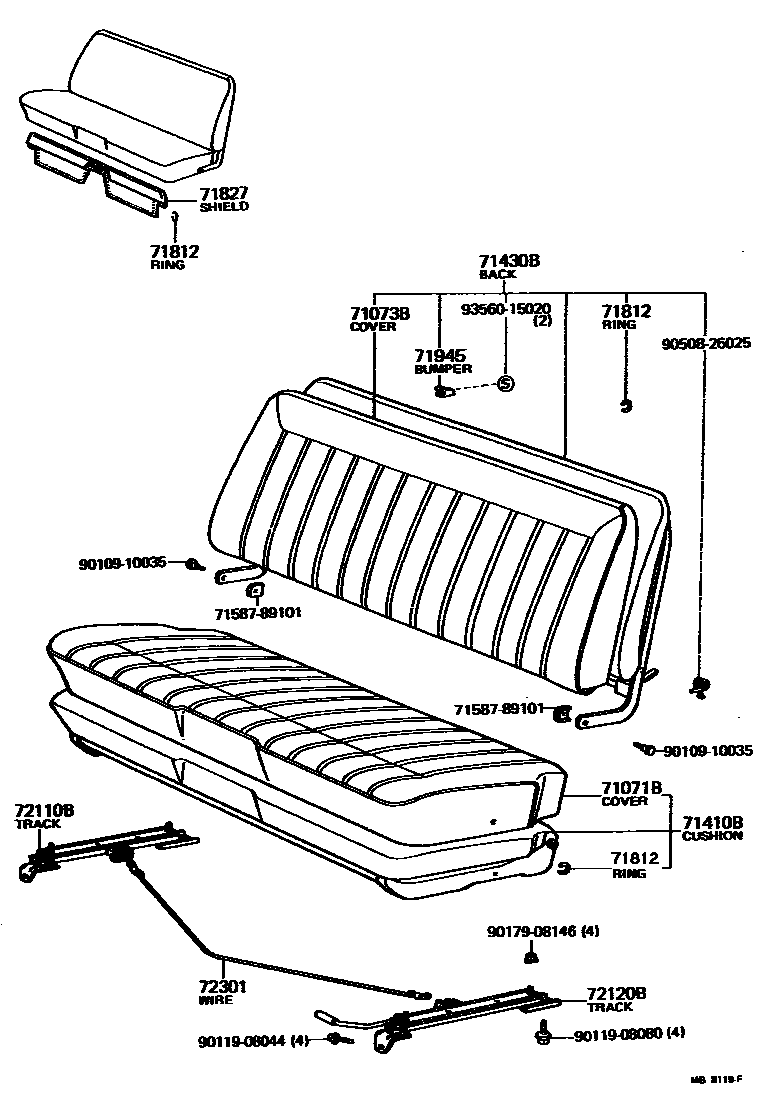

Parts diagram
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71071-89153-01i197808-198008
PF,BLACK,BLACK
main71071-89153-04i197808-198008
PF,BLUE,BLUE
main71071-89153-05i197808-198008
PF,BEIGE,BEIGE
main71071-89154-01i197808-198008
VL,BLACK,BLACK
main71071-89154-04i197808-198008
VL,BLUE,BLUE
main71071-89154-05i197808-198008
VL,BEIGE,BEIGE
main71071-89155-01i197808-198008
PF,BLACK,BLACK
main71071-89155-04i197808-198008
PF,BLUE,BLUE
main71071-89155-05i197808-198008
PF,BEIGE,BEIGE
main71071-89156-01i197808-198008
VL,BLACK,BLACK
main71071-89156-04i197808-198008
VL,BLUE,BLUE
main71071-89156-05i197808-198008
VL,BEIGE,BEIGE
main71071-89168-01i198008-198108
PF,RH,BLACK,BLACK
main71071-89168-04i198008-198108
PF,RH,BLUE,BLUE
main71071-89168-05i198008-198108
PF,RH,BEIGE,BEIGE
main71071-89169-01i198008-198108
VL,RH,BLACK,BLACK
main71071-89169-04i198008-198108
VL,RH,BLUE,BLUE
main71071-89169-05i198008-198108
VL,RH,BEIGE,BEIGE
main71071-89170-01i198008-198108
VL,RH,BLACK,BLACK
main71071-89170-04i198008-198108
VL,RH,BLUE,BLUE
main71071-89170-05i198008-198108
VL,RH,BEIGE,BEIGE
main71071-89180-01i198108-198202
GARNET,RH,BLACK,BLACK
main71071-89180-04i198108-198202
GARNET,RH,BLUE,BLUE
main71071-89180-05i198108-198202
GARNET,RH,BEIGE,BEIGE
main71071-89181-01i198108-198205
BARLEY,RH,BLACK,BLACK
main71071-89181-04i198108-198205
BARLEY,RH,BLUE,BLUE
main71071-89181-05i198108-198205
BARLEY,RH,BEIGE,BEIGE
main71071-89191-01i198202-198205
GARNET,RH,BLACK,BLACK
main71071-89191-04i198202-198205
GARNET,RH,BLUE,BLUE
main71071-89191-05i198202-198205
GARNET,RH,BEIGE,BEIGE
main71071-89197-01i198205-198307
GARNET,BLACK,BLACK
main71071-89197-04i198205-198307
GARNET,BLUE,BLUE
main71071-89197-05i198205-198307
GARNET,BEIGE,BEIGE
main71071-89198-01i198205-198208
BARLEY,BLACK,BLACK
main71071-89198-04i198205-198208
BARLEY,BLUE,BLUE
main71071-89198-05i198205-198208
BARLEY,BEIGE,BEIGE
main71071-89200-03i198208-198307
BARLEY,GRAY,GRAY
main71071-89200-04i198208-198307
BARLEY,BLUE,BLUE
main71071-89200-05i198208-198307
BARLEY,BEIGE,BEIGE
main71071-89204i198208-198307
FB
main71071-95126-01i197901-197908
K-TY,BLACK,BLACK
main71071-95126-04i197901-197908
K-TY,BLUE,BLUE
main71071-95126-05i197901-197908
K-TY,BEIGE,BEIGE
main71071-95133-01i197901-198008
VL,BLACK,BLACK
main71071-95133-04i197901-198008
VL,BLUE,BLUE
main71071-95133-05i197901-198008
VL,BEIGE,BEIGE
main71071-95137-01i197908-198008
KNITTED CLOTH & VL,BLACK,BLACK
main71071-95137-04i197908-198008
KNITTED CLOTH & VL,BLUE,BLUE
main71071-95137-05i197908-198008
KNITTED CLOTH & VL,BEIGE,BEIGE
main71071-95140-01i198008-198108
VL,RH,BLACK,BLACK
main71071-95140-04i198008-198108
VL,RH,BLUE,BLUE
main71071-95140-05i198008-198108
VL,RH,BEIGE,BEIGE
main71071-95141-01i198008-198108
KNITTED CLOTH & VL,RH,BLACK,BLACK
main71071-95141-04i198008-198108
KNITTED CLOTH & VL,RH,BLUE,BLUE
main71071-95141-05i198008-198108
KNITTED CLOTH & VL,RH,BEIGE,BEIGE
main71071-95150-01i198108-198202
BARLEY,RH,BLACK,BLACK
main71071-95150-04i198108-198202
BARLEY,RH,BLUE,BLUE
main71071-95150-05i198108-198202
BARLEY,RH,BEIGE,BEIGE
main71071-95162-01i198202-198208
BARLEY,RH,BLACK,BLACK
main71071-95162-04i198202-198208
BARLEY,RH,BLUE,BLUE
main71071-95162-05i198202-198208
BARLEY,RH,BEIGE,BEIGE
main71071-95165-03i198208-198307
BARLEY,RH,GRAY,GRAY
main71071-95165-04i198208-198307
BARLEY,RH,BLUE,BLUE
main71071-95165-05i198208-198307
BARLEY,RH,BEIGE,BEIGE
main71072-89103-01i198008-198108
PF,LH,BLACK,BLACK
main71072-89103-04i198008-198108
PF,LH,BLUE,BLUE
main71072-89103-05i198008-198108
PF,LH,BEIGE,BEIGE
main71072-89104-01i198008-198108
VL,LH,BLACK,BLACK
main71072-89104-04i198008-198108
VL,LH,BLUE,BLUE
main71072-89104-05i198008-198108
VL,LH,BEIGE,BEIGE
main71072-89105-01i198008-198108
VL,LH,BLACK,BLACK
main71072-89105-04i198008-198108
VL,LH,BLUE,BLUE
main71072-89105-05i198008-198108
VL,LH,BEIGE,BEIGE
main71072-89106-01i198108-198202
GARNET,LH,BLACK,BLACK
main71072-89106-04i198108-198202
GARNET,LH,BLUE,BLUE
main71072-89106-05i198108-198202
GARNET,LH,BEIGE,BEIGE
main71072-89107-01i198108-198205
BARLEY,LH,BLACK,BLACK
main71072-89107-04i198108-198205
BARLEY,LH,BLUE,BLUE
main71072-89107-05i198108-198205
BARLEY,LH,BEIGE,BEIGE
main71072-89108-01i198202-198205
GARNET,LH,BLACK,BLACK
main71072-89108-04i198202-198205
GARNET,LH,BLUE,BLUE
main71072-89108-05i198202-198205
GARNET,LH,BEIGE,BEIGE
main71072-95120-01i198008-198108
VL,LH,BLACK,BLACK
main71072-95120-04i198008-198108
VL,LH,BLUE,BLUE
main71072-95120-05i198008-198108
VL,LH,BEIGE,BEIGE
main71072-95121-01i198008-198108
KNITTED CLOTH & VL,LH,BLACK,BLACK
main71072-95121-04i198008-198108
KNITTED CLOTH & VL,LH,BLUE,BLUE
main71072-95121-05i198008-198108
KNITTED CLOTH & VL,LH,BEIGE,BEIGE
main71072-95122-01i198108-198202
BARLEY,LH,BLACK,BLACK
main71072-95122-04i198108-198202
BARLEY,LH,BLUE,BLUE
main71072-95122-05i198108-198202
BARLEY,LH,BEIGE,BEIGE
main71072-95123-01i198202-198208
BARLEY,LH,BLACK,BLACK
main71072-95123-04i198202-198208
BARLEY,LH,BLUE,BLUE
main71072-95123-05i198202-198208
BARLEY,LH,BEIGE,BEIGE
main71072-95124-03i198208-198307
BARLEY,LH,GRAY,GRAY
main71072-95124-04i198208-198307
BARLEY,LH,BLUE,BLUE
main71072-95124-05i198208-198307
BARLEY,LH,BEIGE,BEIGE
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
main71073-89168-01i197808-198008
PF,BLACK,BLACK
main71073-89168-04i197808-198008
PF,BLUE,BLUE
main71073-89168-05i197808-198008
PF,BEIGE,BEIGE
main71073-89169-01i197808-198008
VL,BLACK,BLACK
main71073-89169-04i197808-198008
VL,BLUE,BLUE
main71073-89169-05i197808-198008
VL,BEIGE,BEIGE
main71073-89182-01i198008-198108
VL,BLACK,BLACK
main71073-89182-04i198008-198108
VL,BLUE,BLUE
main71073-89182-05i198008-198108
VL,BEIGE,BEIGE
main71073-89183-01i198008-198108
VL,BLACK,BLACK
main71073-89183-04i198008-198108
VL,BLUE,BLUE
main71073-89183-05i198008-198108
VL,BEIGE,BEIGE
main71073-89186-01i198008-198108
PF,BLACK,BLACK
main71073-89186-04i198008-198108
PF,BLUE,BLUE
main71073-89186-05i198008-198108
PF,BEIGE,BEIGE
main71073-89197-01i198108-198202
GARNET,BLACK,BLACK
main71073-89197-04i198108-198202
GARNET,BLUE,BLUE
main71073-89197-05i198108-198202
GARNET,BEIGE,BEIGE
main71073-89198-01i198108-198205
BARLEY,BLACK,BLACK
main71073-89198-04i198108-198205
BARLEY,BLUE,BLUE
main71073-89198-05i198108-198205
BARLEY,BEIGE,BEIGE
main71073-89208-01i198202-198205
GARNET,BLACK,BLACK
main71073-89208-04i198202-198205
GARNET,BLUE,BLUE
main71073-89208-05i198202-198205
GARNET,BEIGE,BEIGE
main71073-89214-01i198205-198307
GARNET,BLACK,BLACK
main71073-89214-04i198205-198307
GARNET,BLUE,BLUE
main71073-89214-05i198205-198307
GARNET,BEIGE,BEIGE
main71073-89215-01i198205-198208
BARLEY,BLACK,BLACK
main71073-89215-04i198205-198208
BARLEY,BLUE,BLUE
main71073-89215-05i198205-198208
BARLEY,BEIGE,BEIGE
main71073-89217-03i198208-198307
BARLEY,GRAY,GRAY
main71073-89217-04i198208-198307
BARLEY,BLUE,BLUE
main71073-89217-05i198208-198307
BARLEY,BEIGE,BEIGE
main71073-89221i198306-198307
HAWAII SPEC,FB
main71073-95134-01i197901-198008
VL,BLACK,BLACK
main71073-95134-04i197901-198008
VL,BLUE,BLUE
main71073-95134-05i197901-198008
VL,BEIGE,BEIGE
main71073-95135-01i197901-197908
K-TY,BLACK,BLACK
main71073-95135-04i197901-197908
K-TY,BLUE,BLUE
main71073-95135-05i197901-197908
K-TY,BEIGE,BEIGE
main71073-95141-01i197908-198008
KNITTED CLOTH & VL,BLACK,BLACK
main71073-95141-04i197908-198008
KNITTED CLOTH & VL,BLUE,BLUE
main71073-95141-05i197908-198008
KNITTED CLOTH & VL,BEIGE,BEIGE
main71073-95142-01i198008-198108
VL,BLACK,BLACK
main71073-95142-04i198008-198108
VL,BLUE,BLUE
main71073-95142-05i198008-198108
VL,BEIGE,BEIGE
main71073-95143-01i198008-198108
KNITTED CLOTH & VL,BLACK,BLACK
main71073-95143-04i198008-198108
KNITTED CLOTH & VL,BLUE,BLUE
main71073-95143-05i198008-198108
KNITTED CLOTH & VL,BEIGE,BEIGE
main71073-95155-01i198108-198202
BARLEY,BLACK,BLACK
main71073-95155-04i198108-198202
BARLEY,BLUE,BLUE
main71073-95155-05i198108-198202
BARLEY,BEIGE,BEIGE
main71073-95165-01i198202-198208
BARLEY,BLACK,BLACK
main71073-95165-04i198202-198208
BARLEY,BLUE,BLUE
main71073-95165-05i198202-198208
BARLEY,BEIGE,BEIGE
main71073-95168-03i198208-198307
BARLEY,GRAY,GRAY
main71073-95168-04i198208-198307
BARLEY,BLUE,BLUE
main71073-95168-05i198208-198307
BARLEY,BEIGE,BEIGE
71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
main71410-89138-01i197808-198008
PF,BLACK,BLACK
main71410-89138-04i197808-198008
PF,BLUE,BLUE
main71410-89138-05i197808-198008
PF,BEIGE,BEIGE
main71410-89139-01i197808-198008
VL,BLACK,BLACK
main71410-89139-04i197808-198008
VL,BLUE,BLUE
main71410-89139-05i197808-198008
VL,BEIGE,BEIGE
main71410-89140-01i197808-198008
PF,BLACK,BLACK
main71410-89140-04i197808-198008
PF,BLUE,BLUE
main71410-89140-05i197808-198008
PF,BEIGE,BEIGE
main71410-89141-01i197808-198008
VL,BLACK,BLACK
main71410-89141-04i197808-198008
VL,BLUE,BLUE
main71410-89141-05i197808-198008
VL,BEIGE,BEIGE
main71410-89148-01i198008-198108
PF,BLACK,BLACK
main71410-89148-04i198008-198108
PF,BLUE,BLUE
main71410-89148-05i198008-198108
PF,BEIGE,BEIGE
main71410-89149-01i198008-198108
VL,BLACK,BLACK
main71410-89149-04i198008-198108
VL,BLUE,BLUE
main71410-89149-05i198008-198108
VL,BEIGE,BEIGE
main71410-89150-01i198008-198108
VL,BLACK,BLACK
main71410-89150-04i198008-198108
VL,BLUE,BLUE
main71410-89150-05i198008-198108
VL,BEIGE,BEIGE
main71410-89158-01i198108-198202
GARNET,BLACK,BLACK
main71410-89158-04i198108-198202
GARNET,BLUE,BLUE
main71410-89158-05i198108-198202
GARNET,BEIGE,BEIGE
main71410-89159-01i198108-198205
BARLEY,BLACK,BLACK
main71410-89159-04i198108-198205
BARLEY,BLUE,BLUE
main71410-89159-05i198108-198205
BARLEY,BEIGE,BEIGE
main71410-89164-01i198205-198307
GARNET,BLACK,BLACK
main71410-89164-04i198205-198307
GARNET,BLUE,BLUE
main71410-89164-05i198205-198307
GARNET,BEIGE,BEIGE
main71410-89165-01i198205-198208
BARLEY,BLACK,BLACK
main71410-89165-04i198205-198208
BARLEY,BLUE,BLUE
main71410-89165-05i198205-198208
BARLEY,BEIGE,BEIGE
main71410-89171-03i198208-198307
BARLEY,GRAY,GRAY
main71410-89171-04i198208-198307
BARLEY,BLUE,BLUE
main71410-89171-05i198208-198307
BARLEY,BEIGE,BEIGE
main71410-89174-01i198202-198205
GARNET,BLACK,BLACK
main71410-89174-04i198202-198205
GARNET,BLUE,BLUE
main71410-89174-05i198202-198205
GARNET,BEIGE,BEIGE
main71410-89177i198306-198307
HAWAII SPEC,FB
main71410-95125-01i197901-198008
VL,BLACK,BLACK
sub71511-95117
sub71521-89105
sub71610-95112
main71410-95125-04i197901-198008
VL,BLUE,BLUE
sub71511-95117
sub71521-89105
sub71610-95112
main71410-95125-05i197901-198008
VL,BEIGE,BEIGE
sub71511-95117
sub71521-89105
sub71610-95112
main71410-95126-01i197901-197908
K-TY,BLACK,BLACK
sub71511-95117
sub71521-95111
sub71610-95112
main71410-95126-04i197901-197908
K-TY,BLUE,BLUE
sub71511-95117
sub71521-95111
sub71610-95112
main71410-95126-05i197901-197908
K-TY,BEIGE,BEIGE
sub71511-95117
sub71521-95111
sub71610-95112
main71410-95135-01i197908-198008
KNITTED CLOTH & VL,BLACK,BLACK
main71410-95135-04i197908-198008
KNITTED CLOTH & VL,BLUE,BLUE
main71410-95135-05i197908-198008
KNITTED CLOTH & VL,BEIGE,BEIGE
main71410-95138-01i198008-198108
VL,BLACK,BLACK
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95138-04i198008-198108
VL,BLUE,BLUE
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95138-05i198008-198108
VL,BEIGE,BEIGE
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95139-01i198008-198108
KNITTED CLOTH & VL,BLACK,BLACK
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95139-04i198008-198108
KNITTED CLOTH & VL,BLUE,BLUE
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95139-05i198008-198108
KNITTED CLOTH & VL,BEIGE,BEIGE
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95143-01i198108-198202
BARLEY,BLACK,BLACK
main71410-95143-04i198108-198202
BARLEY,BLUE,BLUE
main71410-95143-05i198108-198202
BARLEY,BEIGE,BEIGE
main71410-95153-01i198202-198208
BARLEY,BLACK,BLACK
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95153-04i198202-198208
BARLEY,BLUE,BLUE
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95153-05i198202-198208
BARLEY,BEIGE,BEIGE
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95155-03i198208-198307
BARLEY,GRAY,GRAY
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95155-04i198208-198307
BARLEY,BLUE,BLUE
sub71511-95120
sub71512-95113
sub71610-95119
main71410-95155-05i198208-198307
BARLEY,BEIGE,BEIGE
sub71511-95120
sub71512-95113
sub71610-95119
71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)
main71430-89135-01i197808-198008
PF,BLACK,BLACK
main71430-89135-04i197808-198008
PF,BLUE,BLUE
main71430-89135-05i197808-198008
PF,BEIGE,BEIGE
main71430-89136-01i197808-198008
VL,BLACK,BLACK
main71430-89136-04i197808-198008
VL,BLUE,BLUE
main71430-89136-05i197808-198008
VL,BEIGE,BEIGE
main71430-89145-01i198008-198108
VL,BLACK,BLACK
main71430-89145-04i198008-198108
VL,BLUE,BLUE
main71430-89145-05i198008-198108
VL,BEIGE,BEIGE
main71430-89146-01i198008-198108
VL,BLACK,BLACK
main71430-89146-04i198008-198108
VL,BLUE,BLUE
main71430-89146-05i198008-198108
VL,BEIGE,BEIGE
main71430-89147-01i198008-198108
PF,BLACK,BLACK
main71430-89147-04i198008-198108
PF,BLUE,BLUE
main71430-89147-05i198008-198108
PF,BEIGE,BEIGE
main71430-89156-01i198108-198202
GARNET,BLACK,BLACK
main71430-89156-04i198108-198202
GARNET,BLUE,BLUE
main71430-89156-05i198108-198202
GARNET,BEIGE,BEIGE
main71430-89157-01i198108-198205
BARLEY,BLACK,BLACK
main71430-89157-04i198108-198205
BARLEY,BLUE,BLUE
main71430-89157-05i198108-198205
BARLEY,BEIGE,BEIGE
main71430-89164-01i198205-198307
GARNET,BLACK,BLACK
main71430-89164-04i198205-198307
GARNET,BLUE,BLUE
main71430-89164-05i198205-198307
GARNET,BEIGE,BEIGE
main71430-89165-01i198205-198208
BARLEY,BLACK,BLACK
main71430-89165-04i198205-198208
BARLEY,BLUE,BLUE
main71430-89165-05i198205-198208
BARLEY,BEIGE,BEIGE
main71430-89170-03i198208-198307
BARLEY,GRAY,GRAY
main71430-89170-04i198208-198307
BARLEY,BLUE,BLUE
main71430-89170-05i198208-198307
BARLEY,BEIGE,BEIGE
main71430-89173-01i198202-198205
GARNET,BLACK,BLACK
main71430-89173-04i198202-198205
GARNET,BLUE,BLUE
main71430-89173-05i198202-198205
GARNET,BEIGE,BEIGE
main71430-89176i198208-198307
FB
main71430-95132-01i197901-198008
VL,BLACK,BLACK
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95132-04i197901-198008
VL,BLUE,BLUE
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95132-05i197901-198008
VL,BEIGE,BEIGE
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95133-01i197901-197908
K-TY,BLACK,BLACK
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95133-04i197901-197908
K-TY,BLUE,BLUE
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95133-05i197901-197908
K-TY,BEIGE,BEIGE
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95138-01i197908-198008
KNITTED CLOTH & VL,BLACK,BLACK
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95138-04i197908-198008
KNITTED CLOTH & VL,BLUE,BLUE
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95138-05i197908-198008
KNITTED CLOTH & VL,BEIGE,BEIGE
sub71505-95110
sub71630-95113
sub93560-15020
main71430-95139-01i198008-198108
VL,BLACK,BLACK
sub71505-89105
sub71630-95116
sub93560-15020
main71430-95139-04i198008-198108
VL,BLUE,BLUE
sub71505-89105
sub71630-95116
sub93560-15020
main71430-95139-05i198008-198108
VL,BEIGE,BEIGE
sub71505-89105
sub71630-95116
sub93560-15020
main71430-95140-01i198008-198108
KNITTED CLOTH & VL,BLACK,BLACK
sub71505-89105
sub71630-95116
sub93560-15020
main71430-95140-04i198008-198108
KNITTED CLOTH & VL,BLUE,BLUE
sub71505-89105
sub71630-95116
sub93560-15020
main71430-95140-05i198008-198108
KNITTED CLOTH & VL,BEIGE,BEIGE
sub71505-89105
sub71630-95116
sub93560-15020
main71430-95146-01i198108-198202
BARLEY,BLACK,BLACK
main71430-95146-04i198108-198202
BARLEY,BLUE,BLUE
main71430-95146-05i198108-198202
BARLEY,BEIGE,BEIGE
main71430-95152-01i198202-198208
BARLEY,BLACK,BLACK
sub71505-89122
sub71630-95116
sub93560-15025
main71430-95152-04i198202-198208
BARLEY,BLUE,BLUE
sub71505-89122
sub71630-95116
sub93560-15025
main71430-95152-05i198202-198208
BARLEY,BEIGE,BEIGE
sub71505-89122
sub71630-95116
sub93560-15025
main71430-95154-03i198208-198307
BARLEY,GRAY,GRAY
sub71505-89122
sub71630-95116
sub93560-15025
main71430-95154-04i198208-198307
BARLEY,BLUE,BLUE
sub71505-89122
sub71630-95116
sub93560-15025
main71430-95154-05i198208-198307
BARLEY,BEIGE,BEIGE
sub71505-89122
sub71630-95116
sub93560-15025
71812CLIP (FOR FRONT SEAT CUSHION COVER)
main90468-18071i198108-198208
sub90468-18008
71827SHIELD, FRONT SEAT CUSHION
main71811-89101-01i197808-198008
BLACK,BLACK
main71811-89101-04i197808-198008
BLUE,BLUE
main71811-89101-05i197808-198008
BEIGE,BEIGE
main71811-89102-01i198108-198307
RH,BLACK,BLACK
main71811-89102-04i198108-198307
RH,BLUE,BLUE
main71811-89102-05i197808-198008
RH,BEIGE,BEIGE
main71811-89102-06i198108-198307
RH,BROWN,BROWN
main71811-89103-01i198208-198307
RH,BLACK,BLACK
main71811-89103-04i198208-198307
RH,BLUE,BLUE
main71811-89103-06i198208-198307
RH,BROWN,BROWN
main71812-89101-01i198108-198307
LH,BLACK,BLACK
main71812-89101-04i198108-198307
LH,BLUE,BLUE
main71812-89101-05i198008-198108
LH,BEIGE,BEIGE
main71812-89101-06i198108-198307
LH,BROWN,BROWN
main71812-89102-01i198208-198307
LH,BLACK,BLACK
main71812-89102-04i198208-198307
LH,BLUE,BLUE
main71812-89102-06i198208-198307
LH,BROWN,BROWN
71945BUMPER, SEATBACK
main71739-89101×2i198208-198307
main71739-89103×2i198008-198307
main71739-89104×2i198008-198108
SEPARATE SEAT
main71739-89105×2i198208-198307
main71739-89106×2i198108-198208
SEPARATE SEAT
72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
main72110-89132i197808-198108
main72110-95111i197901-198307
72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
main72120-89127i197808-198008
main72120-89131i197901-197902
main72120-89134i198108-198307
main72120-95112i197902-198008
main72120-95113i198008-198307
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-89102i197808-198008
main72301-89103i197808-198008
main72301-89104i198008-198108
main72301-95110i197901-198008
main72301-95112i198008-198307
7158789101PROTECTOR, FRONT SEATBACK EDGE
main71587-89101
9010910035
main90109-10035
9011908044
main90119-08044
9011908080
main90119-08080
9017908146
main90179-08146
9050826025
main90508-26025
9356015020
main93560-15020

17 parts on this diagram · 6 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
