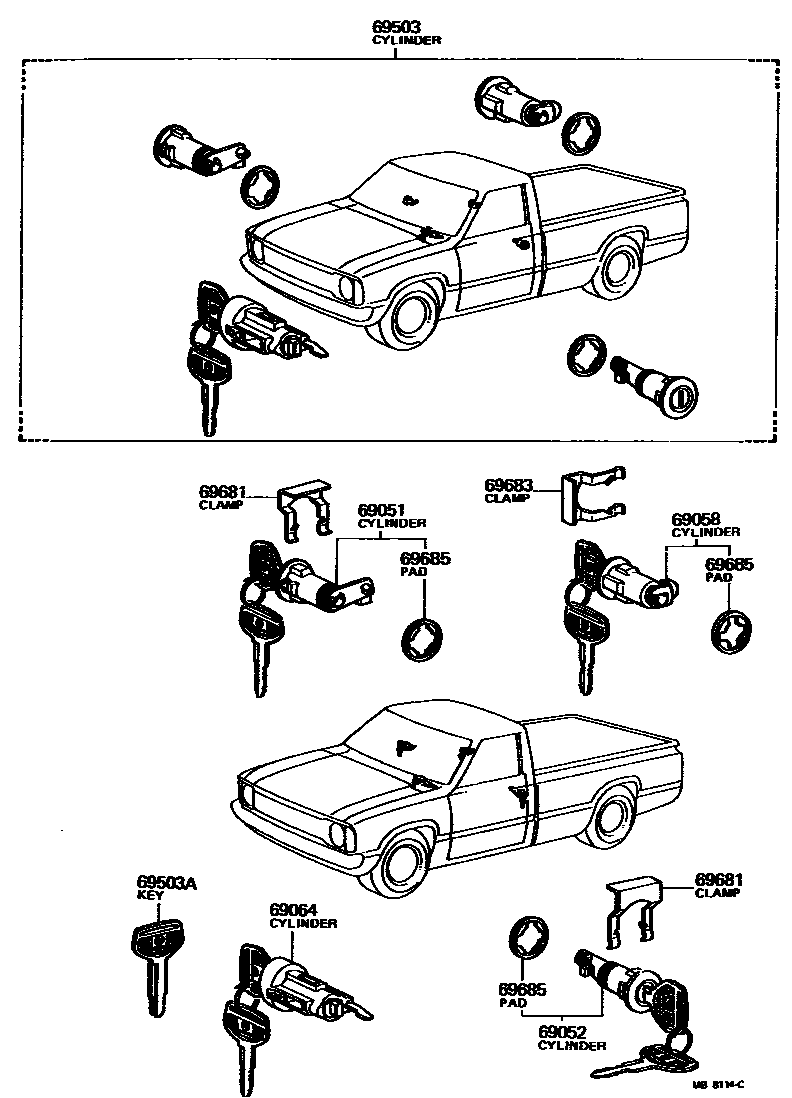

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-89106iLN40,RN3#,4#197808-198108

sub69051-19085

main69051-89107iLN40,RN3#,4#198108-198208

sub69051-89109

main69051-89109iLN40,RN3#,4#198208-198307

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-89106iLN40,RN3#,4#197808-198108

sub69052-19085

main69052-89107iLN40,RN3#,4#198108-198208

sub69052-89109

main69052-89109iLN40,RN3#,4#198208-198307

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89101iLN40,RN3#,4#..CBU197808-198208

main69058-89103iLN40,RN3#,4#..CBU198208-198307

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12011iLN40,RN3#,4#197808-198208

W/*STL

main69057-14010iRN37,38,47,48;RN32,34,42,44..SR5197901-198208

W/*TIS & *STL

sub69057-22020

main69057-89101iLN40,RN3#,4#197808-198108

W/O *STL

main69057-89104iLN40,RN3#,4#198208-198307

W/*STL

main69057-90A04iRN38,48;RN44..HVY;LN40,RN34,44..SR5198302-198307

W/*TIS & *STL

sub69057-90A05

69503CYLINDER SET, LOCK

main69005-89105iLN40,RN3#,4#..CBU197808-198108

W/O *STL

main69005-89106iLN40,RN3#,4#..CBU197808-198108

W/*STL

main69005-89107iLN40,RN3#,4#..IV197808-198108

W/O *STL

main69005-89108iLN40,RN3#,4#..IV197808-198108

W/*STL

main69005-89117iLN40,RN3#,4#..CBU198108-198208

W/*STL

main69005-89123iLN40,RN3#,4#..IV198108-198208

W/*STL

main69005-89129iRN44..HVY;RN34,44..SR5..IV198108-198208

W/*TIS

main69005-89130iRN34,44..SR5..CBU198108-198208

W/*TIS

main69005-89133iLN40,RN3#,4#..CBU198208-198307

W/*STL

main69005-89134iLN40,RN3#,4#..IV198208-198307

W/*STL

main69005-89135iRN44..HVY;LN40,RN34,44..SR5..IV198208-198307

W/*TIS

main69005-89136iLN40,RN34,44..SR5..CBU198208-198307

W/*TIS

main69005-95110iRN37,38,47,48..IV197901-198108

W/*TIS

main69005-95111iRN37,38,47,48..CBU197901-198108

W/*TIS & *STL

69503AKEY, BLANK

main90999-00066iLN40,RN3#,4#197808-198307

MASTER KEY

sub90999-00085

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20010iRN3#,42197808-197907

sub69681-20040

main69681-20040iRN3#,42197907-198307

main69681-89102iLN40,RN32,34,42,44198004-198307

69683CLAMP, FUEL LOCK CYLINDER

main69681-20010iRN37;RN32,42..CND197808-197907

sub69681-20040

main69681-20040iRN37,38,47,48..CBU197907-198307

main69681-89102iLN40,RN32,34,42,44..CBU198004-198307

69685PAD, LOCK CYLINDER

main69513-12020iLN40,RN3#,4#..CBU198208-198307

FUEL LOCK

main69685-12010iLN40,RN3#,4#197808-198307

DOOR LOCK

main69685-95400iLN40,RN3#,4#..CBU197808-198208

FUEL LOCK

9 parts on this diagram · 1 diagram in section
