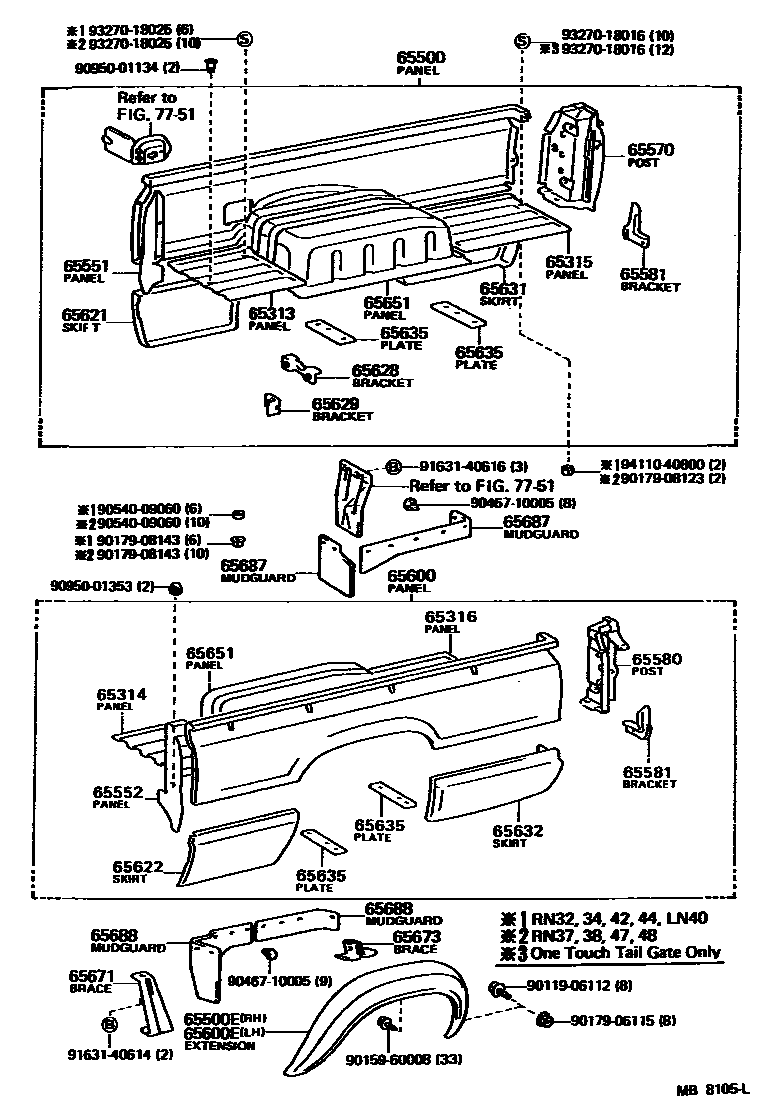

REAR BODY SIDE PANEL

65313PANEL, FLOOR FRONT CORNER, RH

main65313-89109iRN3#197808-198307

main65313-89111iLN40,RN4#..3QT,HLF197808-198307

65314PANEL, FLOOR FRONT CORNER, LH

main65314-89111iRN3#197808-198307

main65314-89113iLN40,RN4#..3QT,HLF197808-198307

65315PANEL, FLOOR REAR CORNER, RH

main65315-89106iRN37,38197911-198108

main65315-89107iRN47,48197911-198108

main65315-89109iRN32,34197911-198108

main65315-89110iLN40,RN42,44..3QT,HLF197911-198108

65316PANEL, FLOOR REAR CORNER, LH

main65316-89106iRN3#197808-197911

main65316-89107iRN42197808-197911

main65316-89109iRN32,34197911-198108

main65316-89110iLN40,RN42,44..3QT,HLF197911-198108

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89124iRN32..CBU197808-198008

main65500-89130iRN42..CBU197808-198008

main65500-89142iRN34..CBU198008-198108

main65500-89143iLN40,RN44..CBU198008-198108

main65500-89154iRN34..CBU198108-198307

main65500-89155iLN40,RN44..CBU198108-198307

main65500-89158iRN34..STD..USA..CBU198205-198307

W/TWO LATCH TAIL GATE

main65500-89159iRN44..STD..HLF..CBU198205-198307

W/TWO LATCH TAIL GATE

main65500-89161iRN44..5F..SR5198301-198307

MOJAVE PACKAGE

main65500-95144iRN37..CBU197901-198008

main65500-95165iRN38..CBU198008-198108

main65500-95166iRN48..CBU198008-198108

main65500-95F09iRN38..CBU198108-198307

main65500-95F10iRN48..CBU198108-198307

65500EEXTENSION, REAR WHEEL OPENING, RH

main61681-95110-01iRN37,38,47,48197901-198307

BLACK,BLACK

main61681-95110-02iRN37197901-198008

RED,RED/MAROON

main61681-95110-03iRN38,48198108-198307

DARK GRAY,GRAY

main61681-95110-04iRN37,38,47,48197901-198208

MIDIUM BLUE,BLUE

main61681-95110-05iRN37,38,47,48197908-198108

BEIGE,BEIGE

main61681-95110-06iRN37197901-197908

ORANGE,BROWN

main61681-95110-08iRN37197901-197908

WHITE,IVORY

main61681-95110-09iRN37,38,47,48197901-198208

YELLOW,YELLOW

main61681-95110-14iRN38,48198208-198307

BLUE,BLUE

main61681-95110-15iRN38,48198108-198208

BEIGE,BEIGE

main61681-95110-17iRN37197901-197906

PURE GREEN,GREEN

main61681-95110-18iRN37,38,47,48197908-198208

WHITE,IVORY

main61681-95110-19iRN38,48198208-198307

YELLOW,YELLOW

main61681-95110-22iRN38,48198008-198307

RED,RED/MAROON

main61681-95110-28iRN38,48198208-198307

WHITE,IVORY

main61681-95110-29iRN38,48198208-198307

LIGHT YELLOW,YELLOW

main61681-95110-32iRN38,48198208-198307

TERRA COTTA,RED/MAROON

65551PANEL, FRONT END POST INNER, RH

main65551-89105iRN3#,42197808-198008

main65551-89107iLN40,RN34,44..3QT,HLF198008-198108

65552PANEL, FRONT END POST INNER, LH

main65552-89105iRN3#,42197808-198008

main65552-89107iLN40,RN34,44..3QT,HLF198008-198108

65570POST ASSY, SIDE PANEL REAR END, RH

main65550-89106iLN40,RN3#,4#..CBU197808-198108

main65550-89109iLN40,RN3#,4#..CBU198108-198307

main65550-89110iRN34,44..STD..HLF..USA..CBU198205-198307

W/TWO LATCH TAIL GATE

65580POST ASSY, SIDE PANEL REAR END, LH

main65560-89106iLN40,RN3#,4#..CBU197808-198108

main65560-89109iLN40,RN3#,4#..CBU198108-198307

main65560-89110iRN34,44..STD..HLF..USA..CBU198205-198307

W/TWO LATCH TAIL GATE

65581BRACKET, REAR END POST

main65565-89102iLN40,RN3#,4#..CBU198108-198307

RH

main65566-89102iLN40,RN3#,4#..CBU198108-198307

LH

main65581-89101iRN3#,42..3QT,HLF197808-197911

RH

main65581-89102iLN40,RN3#,4#..CBU197911-198108

RH

main65582-89101iRN3#,42..3QT,HLF197808-197911

LH

main65582-89102iLN40,RN3#,4#..CBU197911-198108

LH

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89127iRN32..CBU197808-198008

main65600-89133iRN42..CBU197808-198008

main65600-89145iRN34..CBU198008-198108

main65600-89146iLN40,RN44..CBU198008-198108

main65600-89157iRN34..CBU198108-198307

main65600-89158iLN40,RN44..CBU198108-198307

main65600-89161iRN34..STD..USA..CBU198205-198307

W/TWO LATCH TAIL GATE

main65600-89162iRN44..STD..HLF..CBU198205-198307

W/TWO LATCH TAIL GATE

main65600-89164iRN44..5F..SR5198301-198307

MOJAVE PACKAGE

main65600-95148iRN37..CBU197901-198008

main65600-95165iRN38..CBU198008-198108

main65600-95166iRN48..CBU198008-198108

main65600-95F09iRN38..CBU198108-198307

main65600-95F10iRN48..CBU198108-198307

65600EEXTENSION, REAR WHEEL OPENING, LH

main61682-95110-01iRN37,38,47,48197901-198307

BLACK,BLACK

main61682-95110-02iRN37197901-198008

RED,RED/MAROON

main61682-95110-03iRN38,48198108-198307

DARK GRAY,GRAY

main61682-95110-04iRN37,38,47,48197901-198208

MIDIUM BLUE,BLUE

main61682-95110-05iRN37,38,47,48197908-198108

BEIGE,BEIGE

main61682-95110-06iRN37197901-197908

ORANGE,BROWN

main61682-95110-08iRN37197901-197908

WHITE,IVORY

main61682-95110-09iRN37,38,47,48197901-198208

YELLOW,YELLOW

main61682-95110-14iRN38,48198208-198307

BLUE,BLUE

main61682-95110-15iRN38,48198108-198208

BEIGE,BEIGE

main61682-95110-17iRN37197901-197906

PURE GREEN,GREEN

main61682-95110-18iRN37,38,47,48197908-198208

WHITE,IVORY

main61682-95110-19iRN38,48198208-198307

YELLOW,YELLOW

main61682-95110-22iRN38,48198008-198307

RED,RED/MAROON

main61682-95110-28iRN38,48198208-198307

WHITE,IVORY

main61682-95110-29iRN38,48198208-198307

LIGHT YELLOW,YELLOW

main61682-95110-32iRN38,48198208-198307

TERRA COTTA,RED/MAROON

65621SKIRT, SIDE PANEL, FRONT RH

main65621-89108iRN32,34197808-198307

main65621-89110iLN40,RN42,44..3QT,HLF197808-198307

main65621-95119iRN37,38197901-198307

main65621-95120iRN47,48197901-198307

65622SKIRT, SIDE PANEL, FRONT LH

main65622-89108iRN32,34197808-198307

main65622-89110iLN40,RN42,44..3QT,HLF197808-198307

main65622-95118iRN37,38197901-198307

main65622-95119iRN47,48197901-198307

65628BRACKET, FUEL INLET HOSE PROTECTOR, UPPER

main65628-89104iLN40,RN3#,4#..3QT,HLF197808-198307

65629BRACKET, FUEL INLET HOSE PROTECTOR, SIDE

main65629-89104iLN40,RN3#,4#..3QT,HLF197808-198307

65631SKIRT, SIDE PANEL, REAR RH

main65623-89104iRN32,34..CBU197808-198307

main65623-89108iLN40,RN42,44..CBU197808-198307

main65623-95114iRN37,38..CBU197901-198307

main65623-95115iRN47,48..CBU197901-198307

65632SKIRT, SIDE PANEL, REAR, LH

main65624-89104iRN32,34..CBU197808-198307

main65624-89108iLN40,RN42,44..CBU197808-198307

main65624-95115iRN37,38..CBU197901-198307

main65624-95116iRN47,48..CBU197901-198307

65635PLATE, REAR WHEEL HOUSE

main65631-95115×2iRN38,48..CBU198107-198307

FR

main65635-95112×2iRN38,48..CBU198107-198307

RR

65651PANEL, WHEEL HOUSE

main65605-95110iRN37197901-198008

RH

main65605-95112iRN38,48198008-198307

RH

main65606-95110iRN37197901-198008

LH

main65606-95112iRN38,48198008-198307

LH

main65651-89105iRN32,42197808-198008

RH

main65651-89106iLN40,RN34,44..3QT,HLF198008-198307

RH

main65652-89106iRN32,42197808-198008

LH

main65652-89107iLN40,RN34,44..3QT,HLF198008-198307

LH

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-89103×2iLN40,RN3#,4#..3QT,HLF197808-198307

65673BRACE, SIDE PANEL SKIRT, REAR

main65608-89104iLN40,RN32,34,42,44..3QT,HLF197808-198307

RH

main65609-89102iLN40,RN32,34,42,44..3QT,HLF197808-198307

LH

main65673-95115iRN37198002-198008

RH

main65673-95117iRN38,48198008-198307

RH

main65674-95117iRN37198002-198008

LH

main65674-95118iRN38,48198008-198307

LH

65687MUDGUARD, WHEEL HOUSE, RH

main65675-95112iRN37,38,47,48197901-198307

FR

main65677-95110iRN37,38,47,48197901-198307

RR

65688MUDGUARD, WHEEL HOUSE, LH

main65676-95110iRN37,38,47,48197901-198307

FR

main65678-95110iRN37,38,47,48197901-198307

RR

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011906112

main90119-06112

9015960008

main90159-60008

9017906115

main90179-06115

9017908123

main90179-08123

9017908143

main90179-08143

9046710005

main90467-10005

9054009060

main90540-09060

9095001134

main90950-01134

9095001353

main90950-01353

9163140614

main91631-40614

9163140616

main91631-40616

9327018016

main93270-18016

9327018025

main93270-18025

9411040800

main94110-40800

40 parts on this diagram · 1 diagram in section
