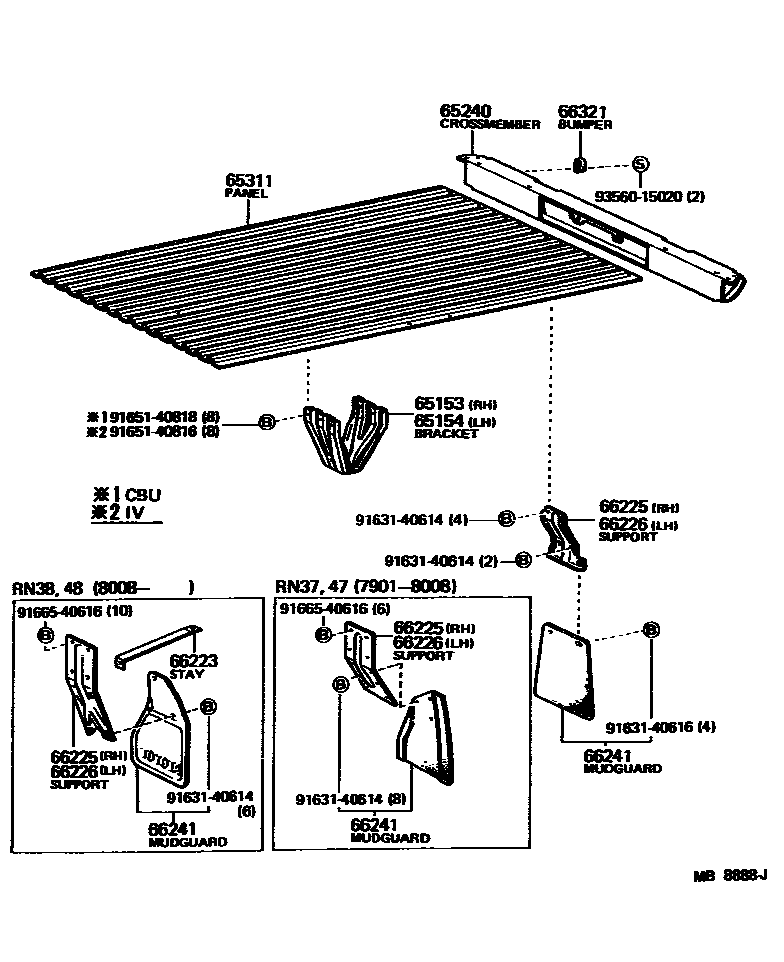

REAR BODY FLOOR & FENDER

65153BRACKET, MOUNTING, NO.1 RH

main65103-95111iRN37,38..CBU197901-198307

main65103-95112iRN47,48..CBU197901-198307

main65153-89107iLN40,RN42,44..CBU197808-198307

main65153-89108iRN32,34..CBU197808-198307

65154BRACKET, MOUNTING, NO.1 LH

main65103-95111iRN37,38..CBU197901-198307

main65103-95112iRN47,48..CBU197901-198307

main65153-89107iLN40,RN42,44..CBU197808-198307

main65153-89108iRN32,34..CBU197808-198307

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-89108iLN40,RN32,34,42,44..CBU197808-198108

main65240-89115iLN40,RN34,44..CBU198108-198307

main65240-95121iRN37,38,47,48..CBU197901-198108

main65240-95130iRN38,48..CBU198108-198307

65311PANEL, FLOOR, CENTER

main65311-89109iRN3#..CBU197808-198307

main65311-89112iRN42,44..3QT197901-198307

main65311-89113iLN40,RN4#..HLF..CBU197808-198307

66223STAY, REAR FENDER REAR PLATE

main66299-95111iRN38,48198008-198307

66225SUPPORT, REAR MUDGUARD, RH

main66225-89103iRN32,42197808-197906

main66225-89104iRN32,42197906-198307

main76647-95110iRN37197901-198008

main76647-95116iRN38,48198008-198307

66226SUPPORT, REAR MUDGUARD, LH

main66225-89103iRN32,42197808-197906

main66225-89104iLN40,RN34,44..3QT,HLF197906-198307

main76647-95110iRN37197901-197902

main76648-95111iRN37197902-198008

main76648-95116iRN38,48198008-198307

66241MUDGUARD, REAR

main66241-39016iLN40,RN32,34,42,44197808-198307

main76625-39015iRN37197901-198008

RH

main76625-39035iRN38,48198008-198307

RH

main76626-39015iRN37197901-198008

LH

main76626-39035iRN38,48198008-198307

LH

66321BUMPER, GATE RUBBER

main65739-89101iLN40,RN3#,4#..3QT,HLF198101-198307

main66321-89106iRN3#,4#197808-198101

9163140614

main91631-40614

9163140616

main91631-40616

9165140816

main91651-40816

9165140818

main91651-40818

9166540616

main91665-40616

9356015020

main93560-15020

15 parts on this diagram · 1 diagram in section
