FRAME

0001 1 0002 1

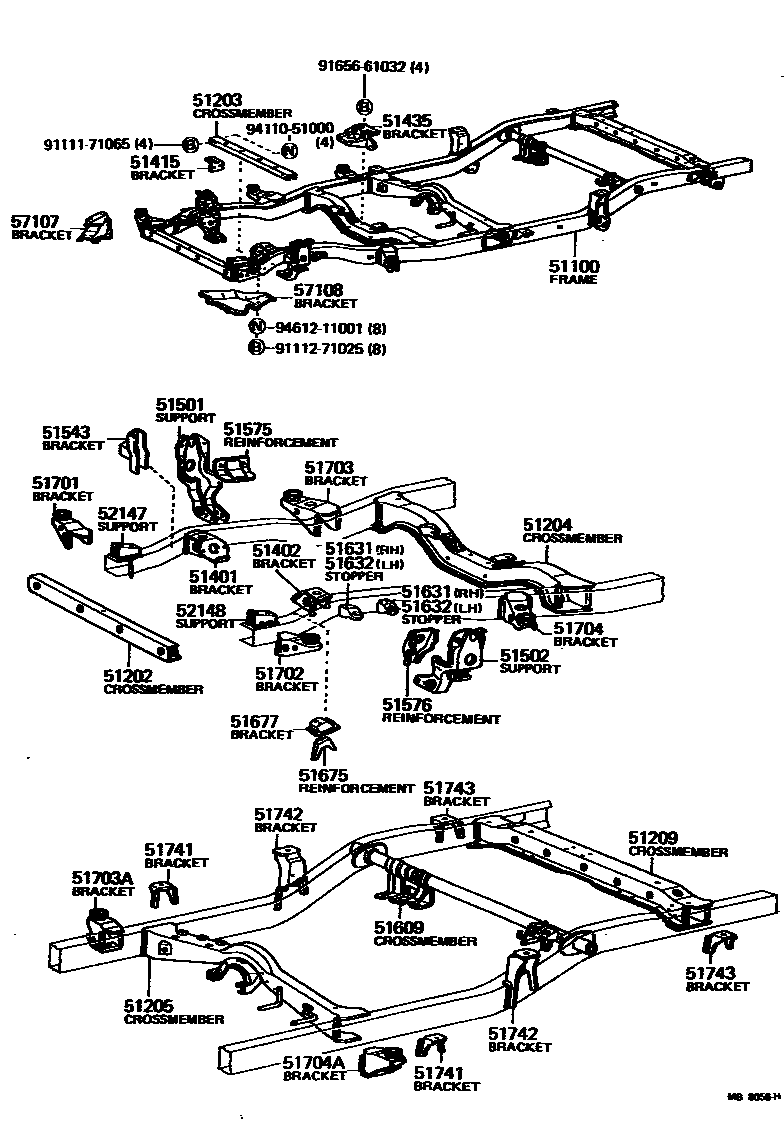

51100FRAME ASSY

main51001-35860iRN32,34197808-198108

main51001-35861iRN34198108-198208

main51001-35862iRN34198208-198307

main51001-35870iRN42,44..HLF197808-198108

main51001-35871iRN44..HLF198108-198208

main51001-35872iRN44..HLF198208-198307

main51001-3D080iRN37197901-197905

sub46301-35101

sub46410-35181

main51001-3D081iRN37197905-198001

main51001-3D082iRN37,38198001-198307

main51001-3D092iRN47,48198001-198307

main51001-3D180iRN42,44..3QT197901-198108

main51001-3D181iRN44..3QT198108-198208

main51001-3D182iRN44..3QT198208-198307

main51001-3D290iRN42..HVY197908-198008

main51001-3D291iRN44..HVY198008-198108

main51001-3D292iRN44..HVY198108-198208

main51001-3D293iRN44..HVY198208-198307

main51001-3D410iLN40198101-198108

main51001-3D411iLN40198108-198208

main51001-3D412iLN40198208-198307

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-35070iLN40,RN32,34,42,44197808-198307

main51201-35080iRN37,38,47,48197901-198307

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35110iLN40,RN32,34,42,44197808-198307

sub51202-35160

main51202-35130iRN37,38,47,48197901-198108

main51202-35131iRN38,48198108-198307

sub51202-35151

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-35170iRN32,34,42,44197808-198307

main51203-35230iLN40198101-198307

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35130iRN32,34197808-198307

main51204-35140iRN42..3QT,HLF197808-198008

main51204-35150iRN37197901-197905

main51204-35151iRN37,38197905-198108

main51204-35152iRN38198108-198307

main51204-35161iRN47,48197905-198108

main51204-35162iRN48198108-198307

main51204-35190iRN42..HVY197908-198008

main51204-35210iLN40198108-198307

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51209-35080iLN40,RN3#,4#197808-198307

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35140iRN32,34,42,44197808-198307

main51401-35150iRN37,38,47,48197901-198307

main51401-35160iLN40198101-198307

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-35140iRN32,34,42,44197808-198307

main51402-35150iRN37,38,47,48197901-198307

main51402-35160iLN40198101-198307

51415BRACKET, ENGINE SHOCK ABSORBER

main51417-35010iLN40198101-198307

51435BRACKET, ENGINE REAR MOUNTING

main51431-35020iRN32,42..4F197808-198008

sub51431-35070

main51431-35030iRN32,42..3FC,5F197808-198008

sub51431-35060

main51431-35050iRN44..4FC198008-198108

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35010iLN40,RN32,34,42,44197808-198307

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35010iLN40,RN32,34,42,44197808-198307

main51505-35040iRN37197901-198001

main51505-35041iRN37,38,47,48198001-198108

main51505-35042iRN38,48198108-198307

51543BRACKET, SHIMMY DAMPER

main51543-35010iLN40,RN32,34,42,44197908-198307

51575REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1

main51573-35010×2iLN40,RN32,34,42,44197808-198307

51576REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2

main51575-35020×2iLN40,RN32,34,42,44197808-198307

51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT

main51205-35080iLN40,RN3#,4#197808-198307

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51631-35020iLN40,RN32,34,42,44197808-198307

RR

main51632-35020iLN40,RN32,34,42,44197808-198307

FR

51632STOPPER, FRONT SUSPENSION REBOUND, LH

main51631-35020iLN40,RN32,34,42,44197808-198307

FR

main51632-35020iLN40,RN32,34,42,44197808-198307

RR

51675REINFORCEMENT, STEERING GEAR BOX SUPPORT

main51675-35070iLN40,RN32,34,42,44197808-198307

51677BRACKET, STEERING GEAR BOX

main51679-35020iLN40,RN32,34,42,44197808-198307

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35050iLN40,RN32,34,42,44197808-198307

main51701-35060iRN37,38,47,48197901-198307

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-35050iLN40,RN32,34,42,44197808-198307

main51701-35060iRN37,38,47,48197901-198307

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35010iLN40,RN32,34,42,44197808-198307

main51703-35020iRN37,38,47,48197901-198103

main51703-35021iRN38,48198103-198307

51703ABRACKET SUB-ASSY, CAB REAR MOUNTING, RH

main51705-35040iLN40,RN3#,4#197808-198208

main51705-35050iLN40,RN3#,4#198208-198307

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51703-35010iLN40,RN32,34,42,44197808-198307

main51704-35040iRN37,38,47,48197901-198103

main51704-35041iRN38,48198103-198307

51704ABRACKET SUB-ASSY, CAB REAR MOUNTING, LH

main51705-35040iLN40,RN3#,4#197808-198208

main51705-35050iLN40,RN3#,4#198208-198307

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-35050×2iLN40,RN3#,4#197808-198307

51742BRACKET, BODY MOUNTING, NO.2

main51742-35040iLN40,RN3#,4#197808-198307

RH

main51743-35060iLN40,RN3#,4#197808-198307

LH

51743BRACKET, BODY MOUNTING, NO.3

main51741-35050×2iLN40,RN3#,4#197808-198307

52147SUPPORT, FRONT BUMPER, RH

main52147-35010iLN40,RN32,34,42,44197808-198307

main52147-35020iRN37,38,47,48197901-198307

52148SUPPORT, FRONT BUMPER, LH

main52148-35010iLN40,RN32,34,42,44197808-198307

main52148-35020iRN37,38,47,48197901-198307

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-35010iLN40,RN32,34,42,44197808-198307

sub57107-35020

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-35010iLN40,RN32,34,42,44197808-198307

sub57108-35020

9111171065

main91111-71065

9111271025

main91112-71025

9165661032

main91656-61032

9411051000

main94110-51000

9461211001

main94612-11001

38 parts on this diagram · 2 diagrams in section
