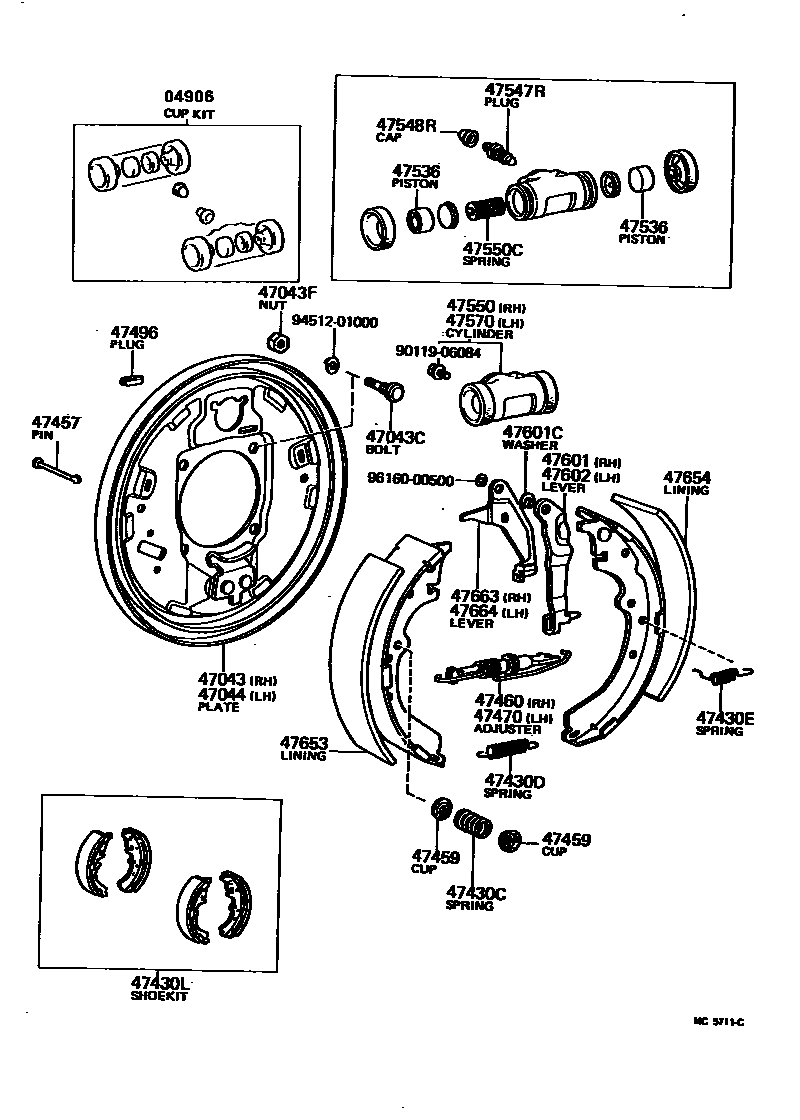

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30050iRN37,38,47,48197901-198307

main04906-30060iRN42,44..3QT197901-198307

main04906-30100iLN40,RN32,34,42,44..HLF197808-198307

main04906-31010iRN42,44..HVY197908-198307

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35050iRN42,44..HVY197908-198307

sub47043-35051

main47043-35060iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub47043-35061

sub47492-28010

main47043-35070iRN37,38,47,48197901-198307

sub47043-35090

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×4iLN40,RN34,44..3QT,HLF198008-198307

*10-1.25PX37-18.5,*10-1.25PX35.5

main90114-10016×4iRN38,48;RN44..3QT198008-198307

*10-1.25PX41-18,*10-1.25PX41

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10172×4iLN40,RN32,34,42,44197808-198307

sub90179-10067

main90170-10191×2iRN37,38,47,48197901-198307

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35040iRN42,44..HVY197908-198307

sub47044-35041

main47044-35050iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub47044-35051

sub47492-28010

main47044-35060iRN37,38,47,48197901-198307

sub47044-35080

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20604×4iRN42,44..HVY;RN37,38,47,48197901-198307

main90501-20756×4iLN40,RN32,34,42,44..3QT,HLF197808-198307

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412×2iRN42,44..HVY;RN37,38,47,48197901-198307

main90506-20005×2iLN40,RN32,34,42,44..3QT,HLF197808-198307

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015×2iLN40,RN32,34,42,44..3QT,HLF197808-198307

main90506-16343×2iRN42,44..HVY;RN37,38,47,48197901-198307

47430LSHOE KIT, REAR BRAKE

main04495-35051iRN42,44..HVY;RN37,38,47,48197901-198307

sub04495-35052

main04495-35060iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub04495-35061

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iRN42,44..HVY;RN37,38,47,48197901-198307

main47447-30020×4iLN40,RN32,34,42,44..3QT,HLF197808-198307

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iLN40,RN3#,4#197808-198307

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35010iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub47061-35020

main47405-30020iRN42,44..HVY;RN37,38,47,48197901-198307

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-35010iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub47062-35020

main47406-30020iRN42,44..HVY;RN37,38,47,48197901-198307

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47491-35040×2iRN42,44..HVY;RN37,38,47,48197901-198307

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iLN40,RN32,34,42,44..HLF197808-198307

main47051-30030×4iRN42,44..3QT197901-198307

main47531-20082×4iRN37,38,47,48197901-198307

main47531-31011×4iRN42,44..HVY197908-198307

sub47531-26080

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iRN42,44..HVY;RN37,38,47,48197901-198211

main47547-20030×2iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47547-26010×2iRN38,48;RN44..HVY198211-198307

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLN40,RN3#,4#197901-198307

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29175iRN42,44..HVY197908-198211

main47550-29275iRN44..HVY198211-198307

sub47550-26100

sub91611-60814

main47550-39165iRN37,38,47,48197901-198211

main47550-39166iRN38,48198211-198307

main47550-39175iRN42,44..3QT197901-198307

sub47550-30100

main47550-39275iLN40,RN32,34,42,44..HLF197808-198307

sub47550-30130

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-14010×2iRN37,38,47,48197901-198307

main47509-20010×2iLN40,RN32,34,42,44..HLF197808-198307

main47509-22010×2iRN42,44..HVY197908-198307

main47509-35020×2iRN42,44..3QT197901-198307

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-29175iRN42,44..HVY197908-198211

main47550-29275iRN44..HVY198211-198307

sub47550-26100

sub91611-60814

main47550-39165iRN37,38,47,48197901-198307

main47550-39175iRN42,44..3QT197901-198307

sub47550-30100

main47550-39275iLN40,RN32,34,42,44..HLF197808-198307

sub47550-30130

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iRN42,44..HVY197908-198307

main47601-35020iRN37,38,47,48197901-198307

main47611-35020iLN40,RN32,34,42,44..3QT,HLF197808-198307

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iLN40,RN3#,4#197808-198307

T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iRN42,44..HVY197908-198307

main47602-35020iRN37,38,47,48197901-198307

main47612-35020iLN40,RN32,34,42,44..3QT,HLF197808-198307

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-30050×2iLN40,RN32,34,42,44..3QT,HLF197808-198307

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-30050×2iLN40,RN32,34,42,44..3QT,HLF197808-198307

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20011iRN42,44..HVY;RN37,38,47,48197901-198307

main47643-35010iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub47643-35020

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47643-20011iRN42,44..HVY;RN37,38,47,48197901-198307

main47644-35010iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub47644-35020

9011906084

main90119-06084

9451201000

main94512-01000

9616000500

main96160-00500

30 parts on this diagram · 3 diagrams in section
