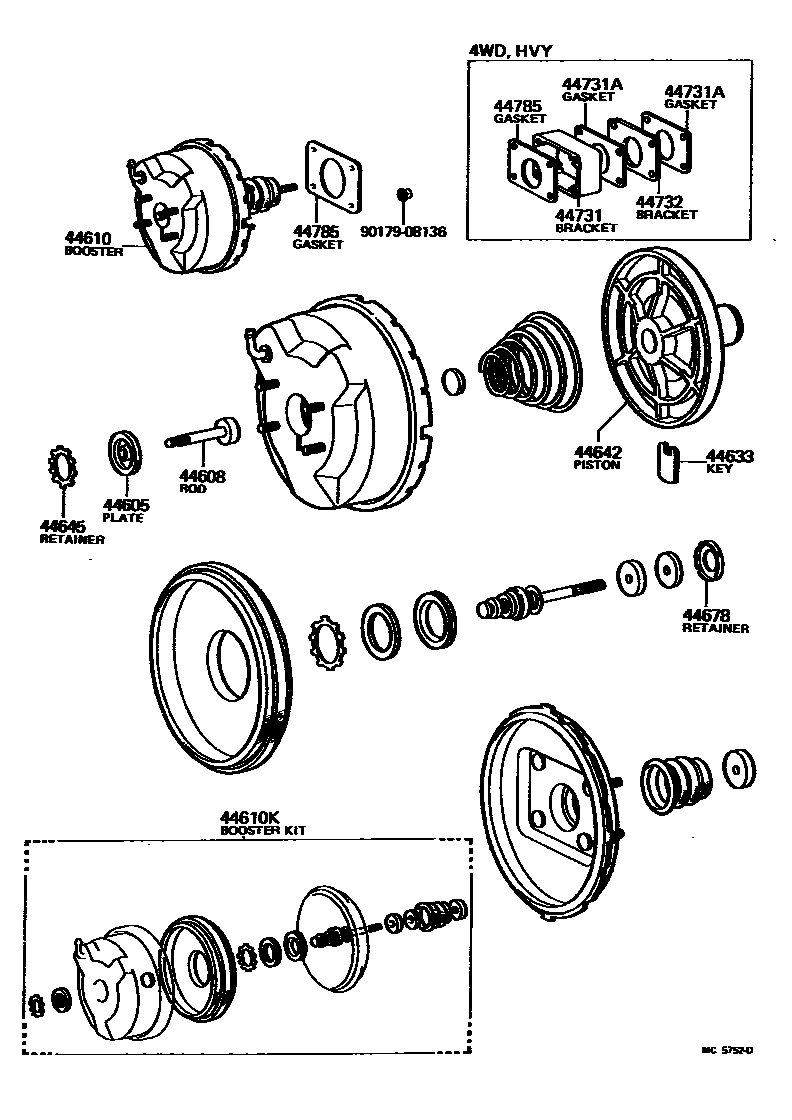

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iLN40,RN3#,4#197808-198307

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-14040iLN40,RN3#,4#..3QT,HLF197808-198307

main44608-22090iRN42,44..HVY197908-198307

44610BOOSTER ASSY, BRAKE

main44610-35180iRN32,34,42,44..3QT,HLF197808-198307

7.5 INCHES

main44610-35270iRN37,38,47,48197901-198307

7.5 INCHES

main44610-35340iRN42,44..HVY197908-198307

9 INCHES

main44610-35370iLN40198101-198307

44610KBOOSTER KIT, BRAKE

main04443-35120iRN32,34,42,44..3QT,HLF197808-198307

main04443-35150iRN38,48198108-198307

main04443-35170iRN37,38,47,48197901-198108

main04443-35210iRN42,44..HVY197908-198307

main04443-35260iLN40198101-198307

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iLN40,RN3#,4#197808-198307

44642PISTON, BRAKE BOOSTER

main44642-20140iLN40,RN32,34,42,44..3QT,HLF197808-198307

main44642-22110iRN37,38,47,48197901-198307

main44642-25080iRN42,44..HVY197908-198307

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iLN40,RN3#,4#197808-198307

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iLN40,RN3#,4#197808-198307

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35060iRN42,44..HVY;RN37,38,47,48197901-198307

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-35011iRN42,44..HVY;RN37,38,47,48197901-198307

44732BRACKET, BRAKE BOOSTER, REAR

main44732-35040iRN42,44..HVY;RN37,38,47,48197901-198307

44785GASKET, BRAKE BOOSTER

main44785-35010iRN32,42..3QT,HLF197808-197909

main44785-35011iRN37;RN42..HVY197901-198307

9017908136

main90179-08136

13 parts on this diagram · 3 diagrams in section
