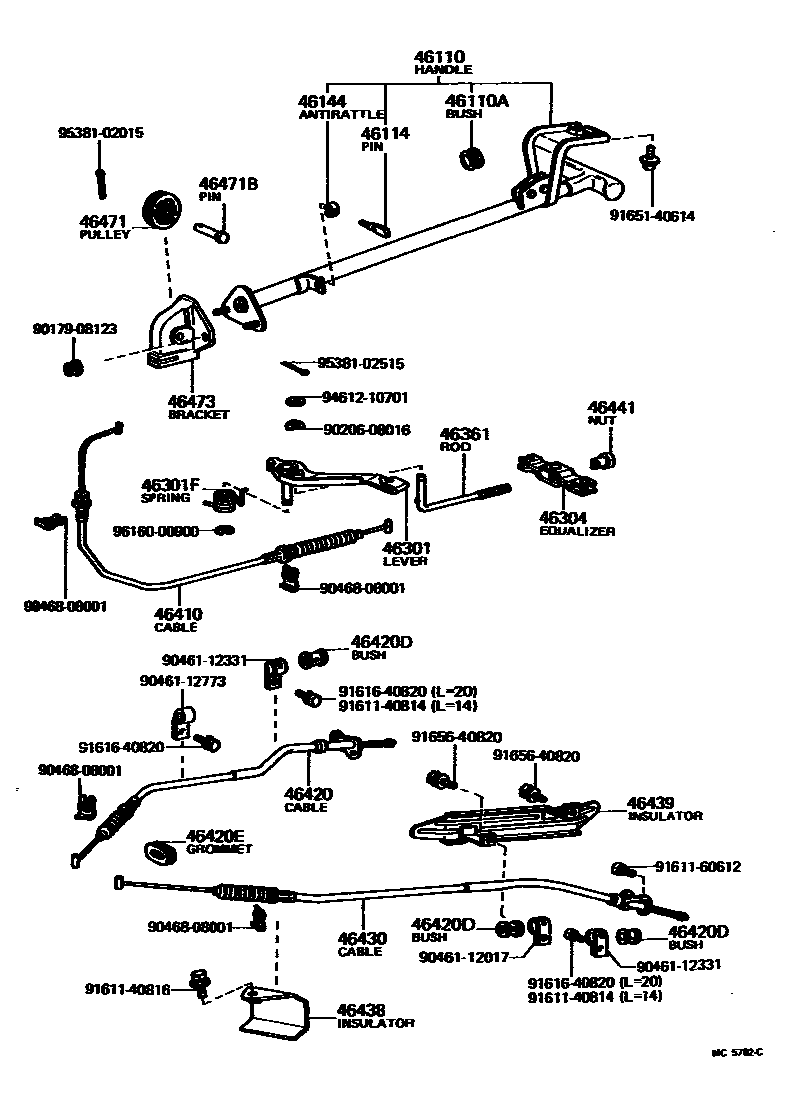

PARKING BRAKE & CABLE

0001 1 0002 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46110-35100iLN40,RN3#,4#197808-198307

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLN40,RN3#,4#197808-198307

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN40,RN3#,4#197808-198307

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLN40,RN3#,4#197808-198307

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35090iLN40,RN32,34,42,44197808-198307

main46301-35100iRN37197901-197905

main46301-35101iRN37,38,47,48197905-198307

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32007iLN40,RN32,34,42,44197808-198307

main90508-35007iRN37197901-197903

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iLN40,RN32,34,42,44197808-198307

main46341-30040×2iRN37,38,47,48197901-198108

main46341-35020×2iRN38,48198108-198307

46361ROD, PARKING BRAKE PULL

main46361-35040iLN40,RN32,34,42197808-198307

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35151iLN40,RN32,34,42,44197808-198307

main46410-35180iRN37197901-197905

main46410-35181iRN37,38197905-198307

main46410-35191iRN47,48197905-198307

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35122iRN42,44..HVY197908-198307

main46420-35131iRN32197808-197902

main46420-35132iRN32,34197902-198307

main46420-35141iRN42..HLF197808-197902

main46420-35142iLN40,RN42,44..HLF197902-198307

main46420-35170iRN37,38197901-198102

main46420-35171iRN38198102-198307

main46420-35180iRN47,48197901-198102

main46420-35181iRN48198102-198307

main46420-35190iRN42..3QT197901-197902

main46420-35191iRN42,44..3QT197902-198307

46420DGROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)

main90385-13051×3iLN40,RN32,34,42,44197808-198307

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-01019iLN40,RN32,34,42,44197808-198307

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35132iRN42,44..HVY197908-198307

main46430-35141iRN32197808-197902

main46430-35142iRN32,34197902-198307

main46430-35151iRN42..HLF197808-197902

main46430-35152iLN40,RN42,44..HLF197902-198307

main46430-35160iRN42..3QT197901-197902

main46430-35161iRN42,44..3QT197902-198307

46438INSULATOR, PARKING CABLE DUST COVER HEAT

main46438-35020iRN32,34,42,44197808-198307

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-35020iRN32,42197808-198008

46441NUT, WIRE ADJUSTING, NO.1

main46441-22010iLN40,RN32,34,42,44197808-198307

main46441-30030×2iRN37,38,47,48197904-198307

main46441-30041×2iRN37197901-197904

46471PULLEY, WIRE

main46471-20010iLN40,RN3#,4#197808-198307

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08070iLN40,RN3#,4#197808-198307

46473BRACKET, PULLEY

main46473-35020iLN40,RN3#,4#197808-198307

9017908123

main90179-08123

9020608016

main90206-08016

9046112017

main90461-12017

9046112331

main90461-12331

9046112773

main90461-12773

9046808001

main90468-08001

9161140814

main91611-40814

9161140816

main91611-40816

9161160612

main91611-60612

9161640820

main91616-40820

9165140614

main91651-40614

9165640820

main91656-40820

9461210701

main94612-10701

9538102015

main95381-02015

9538102515

main95381-02515

9616000900

main96160-00900

35 parts on this diagram · 2 diagrams in section
