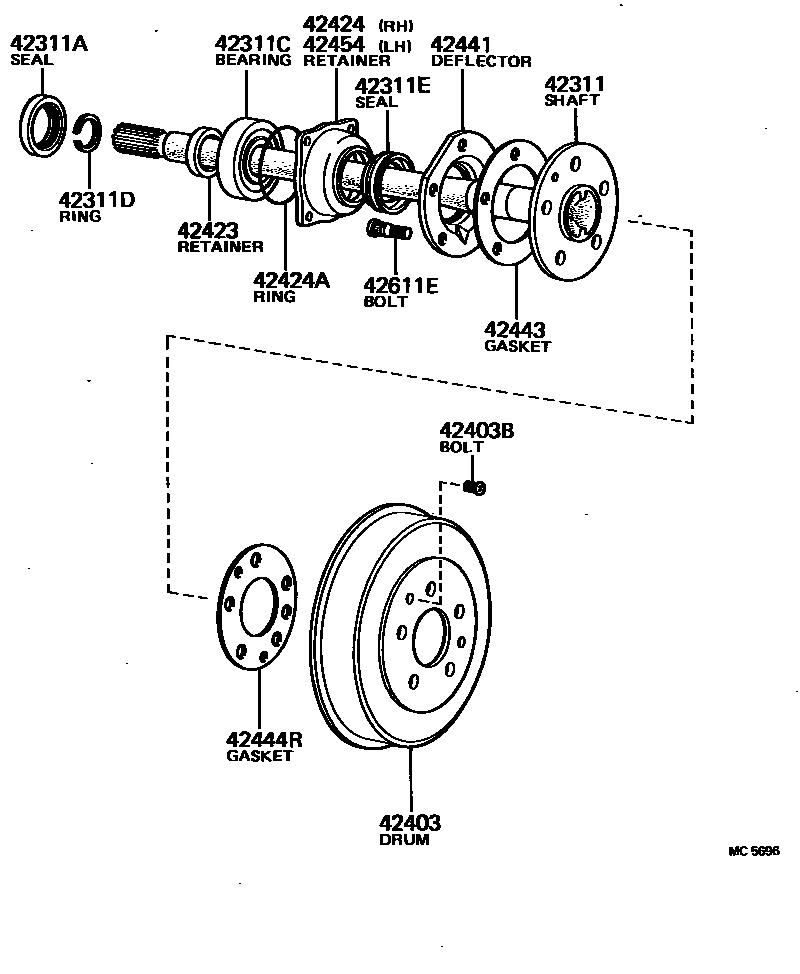

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42311-35060×2iRN44..HVY198008-198307

main42311-35070×2iRN32,42..HLF197808-198008

main42311-35080×2iRN37197901-198008

main42311-35081×2iRN38,48198008-198307

main42311-35090×2iRN44..5F..SR5..CBU198301-198307

SPECIAL EDITION

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001×2iLN40,RN3#,4#198208-198307

main90310-50039×2iLN40,RN3#,4#197808-198208

42311CBEARING(FOR REAR AXLE SHAFT)

main97144-06308×2iLN40,RN3#,4#197808-198307

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2iLN40,RN3#,4#197808-198307

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001×2iLN40,RN3#,4#198208-198307

main90313-48005×2iLN40,RN3#,4#197808-198208

42403DRUM SUB-ASSY, REAR BRAKE

main42431-35030×2iRN42,44..HVY197908-198307

main42431-35040×2iLN40,RN32,34,42,44..3QT,HLF197808-198307

main42431-35050×2iRN37197901-198008

main42431-35060×2iRN38,48198008-198307

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035×2iRN3#,42197808-198008

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×2iLN40,RN3#,4#197808-198307

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42421-35020iLN40,RN3#,4#197808-198307

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077×2iLN40,RN3#,4#197808-198307

42441DEFLECTOR, BRAKE DRUM OIL

main42441-26010×2iLN40,RN32,34,42,44197808-198307

main42441-35010×2iRN37,38,47,48197901-198307

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-30010×2iLN40,RN32,34,42,44197808-198307

main42443-55020×2iRN37,38,47,48197901-198307

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35020×2iLN40,RN32,34,42,44197808-198307

main42444-35030×2iRN37197901-198008

main42444-35040×2iRN38,48198008-198307

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42421-35020iLN40,RN3#,4#197808-198307

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02034×12iRN37,38,47,48197901-198307

main90942-02037×10iLN40,RN32,34,42,44197808-198307

15 parts on this diagram · 1 diagram in section
