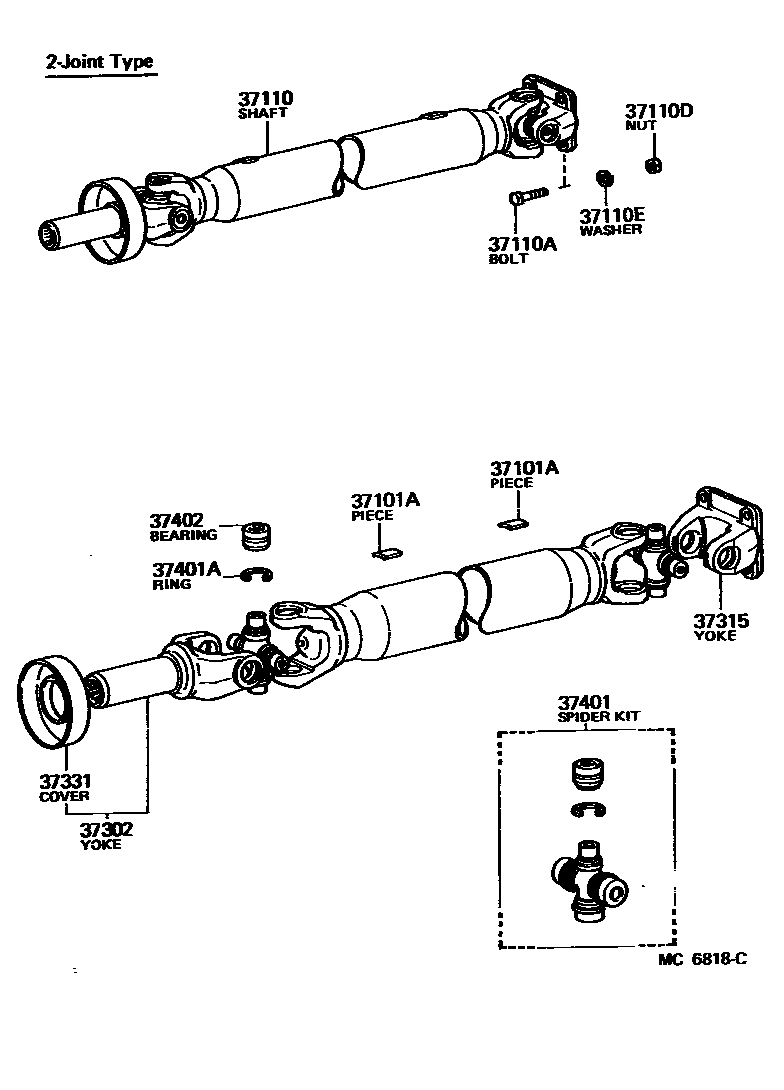

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
20G,T=1.2,20G,SPOT
30G,T=1.2,30G,SPOT
5G,SPOT
15G,SPOT
25G,SPOT
10G,L=20.7,10G
10G,L=20.7,10G,PROJECTION
20G,L=41.4,20G,PROJECTION
20G,L=41.4,20G
30G,L=62.2,30G,PROJECTION
2G,T=2.0,2G,PROJECTION
2G,T=2.0,2G
4G,T=2.0,4G
4G,T=2.0,4G,PROJECTION
6G,L=12.4,6G
6G,L=12.4,6G,PROJECTION
8G,L=16.6,8G
8G,L=16.6,8G,PROJECTION
12G,L=24.9,12G
12G,L=24.9,12G,PROJECTION
14G,L=29.0,14G
14G,L=29.0,14G,PROJECTION
16G,L=33.2,16G,PROJECTION
16G,L=33.2,16G
18G,L=37.3,18G,PROJECTION
18G,L=37.3,18G
22G,L=45.6,22G
22G,L=45.6,22G,PROJECTION
24G,L=49.7,24G
24G,L=49.7,24G,PROJECTION
26G,L=53.9,26G,PROJECTION
26G,L=53.9,26G
28G,L=58.1,28G
28G,L=58.1,28G,PROJECTION
4G,T=1.6,4G,FR PROPELLER SHAFT
8G,T=1.6,8G,FR PROPELLER SHAFT
12G,T=4.5,12G,FR PROPELLER SHAFT
16G,T=4.5,16G,FR PROPELLER SHAFT
20G,T=4.5,20G,FR PROPELLER SHAFT
24G,T=4.5,L=25.1,24G,FR PROPELLER SHAFT
28G,T=6,L=22.7,28G,FR PROPELLER SHAFT
32G,T=6,L=24.3,32G,FR PROPELLER SHAFT
30G,T=4.5,L=27.4,30G
32G,T=4.5,L=29.2,32G,FR PROPELLER SHAFT
34G,T=4.5,L=31.0,34G,FR PROPELLER SHAFT
36G,T=4.5,L=32.9,36G,FR PROPELLER SHAFT
38G,T=4.5,L=34.7,38G,FR PROPELLER SHAFT
40G,T=4.5,L=36.5,40G,FR PROPELLER SHAFT
42G,T=4.5,L=38.4,42G,FR PROPELLER SHAFT
44G,T=4.5,L=40.2,44G,FR PROPELLER SHAFT
46G,T=4.5,L=42.0,46G,FR PROPELLER SHAFT
48G,T=4.5,L=43.8,48G,FR PROPELLER SHAFT
50G,T=4.5,L=45.7,50G,FR PROPELLER SHAFT
37110ABOLT (FOR PROPELLER SHAFT)
*8-1.25PX25-12
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=1.50,OD=32.4,T=1.50
T=1.55,T=1.55
T=1.60,T=1.60
T=2.375-2.425,T=2.40
T=2.425-2.475,T=2.45
T=2.475-2.525,T=2.50
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
11 parts on this diagram · 4 diagrams in section
