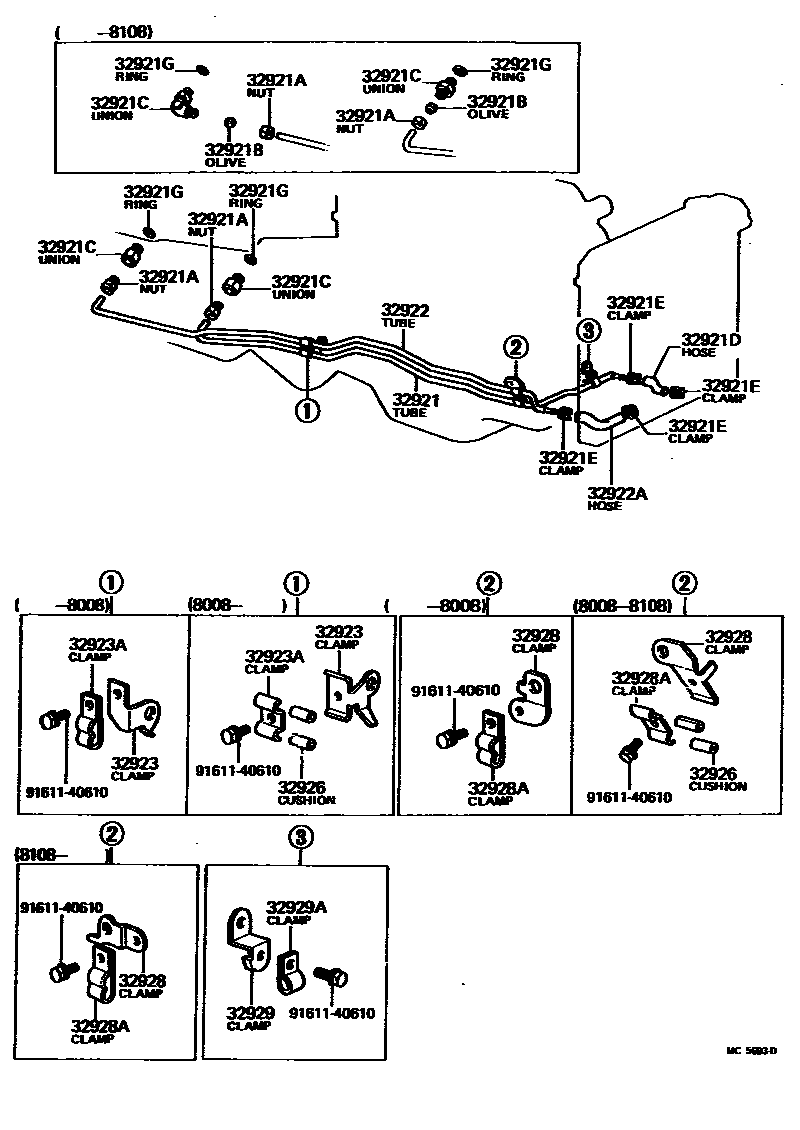

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-20102iRN32,42..3FC197808-198008

main32921-35030iRN34,44..3FC198008-198108

main32921-35040iRN44..4FC198008-198108

main32921-35050iRN34,44..4FC198108-198307

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041×2iRN32,34,42,44..ATM197808-198108

main90402-14004×2iRN34,44..4FC198108-198307

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400×2iRN32,34,42,44..ATM197808-198108

32921CUNION(FOR OIL COOLER TUBE)

main90404-13265iRN44..4FC198008-198108

INLET

main90404-14007×2iRN34,44..4FC198108-198307

main90407-13002iRN44..4FC198008-198108

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14259iRN32,34,42,44..ATM197808-198108

main90445-14526iRN34,44..4FC198108-198307

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iRN32,34,42,44..ATM197808-198307

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iRN32,34,42,44..ATM197808-198307

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20103iRN32,42..3FC197808-198008

main32922-35040iRN34,44..3FC198008-198108

main32922-35050iRN44..4FC198008-198108

main32922-35060iRN34,44..4FC198108-198307

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14259iRN32,34,42,44..ATM197808-198307

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20022iRN32,42..3FC197808-198008

main32923-22020iRN34,44..ATM198008-198307

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08070iRN32,42..3FC197808-198008

main90462-12085iRN34,44..ATM198008-198307

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×4iRN34,44..ATM198008-198307

L=25,ID=8

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20060iRN32,42..3FC197808-197908

main32928-20070iRN34,44..ATM198008-198108

main32928-22020iRN32,42..3FC197908-198008

main32928-35010iRN34,44..4FC198108-198307

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08070iRN32,42..3FC197808-198008

main90462-12085iRN34,44..ATM198008-198108

main96222-20708iRN34,44..4FC198108-198307

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-20070iRN32,34,42,44..ATM197808-198307

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-06033iRN32,34,42,44..ATM197808-198307

9161140610

main91611-40610

17 parts on this diagram · 1 diagram in section
