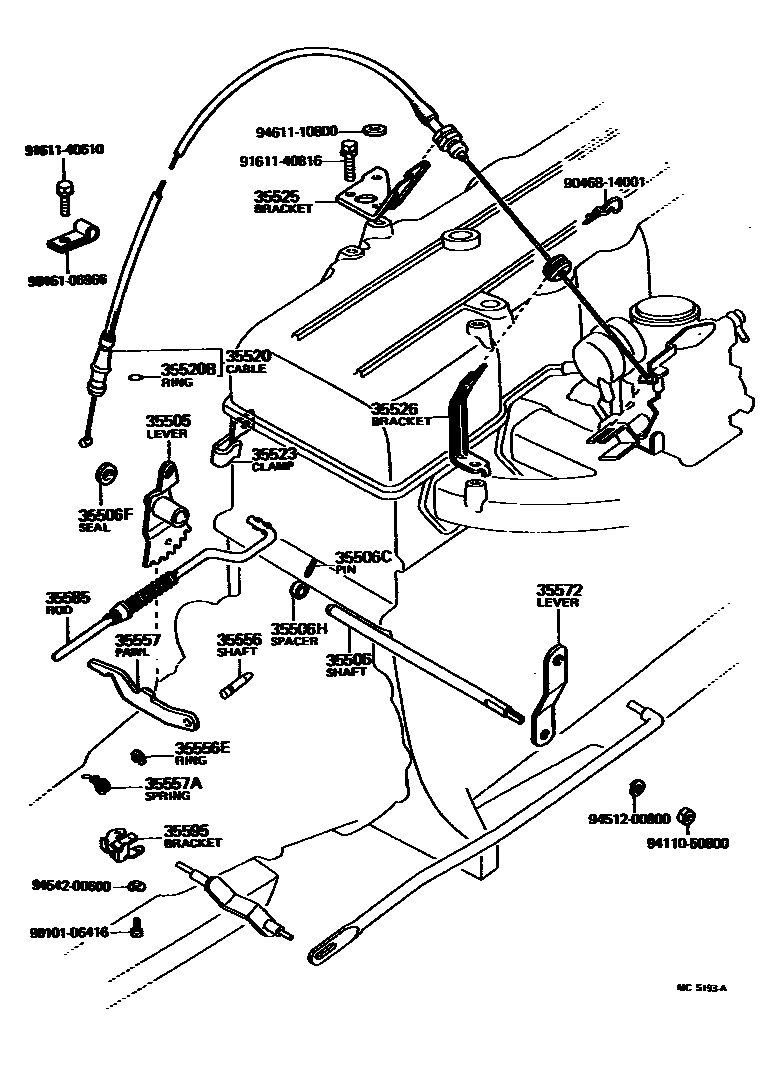

THROTTLE LINK & VALVE LEVER (ATM)
35505LEVER SUB-ASSY, MANUAL VALVE
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35520CABLE ASSY, THROTTLE
35520BRING, O(FOR THROTTLE CABLE)
35523CLAMP, THROTTLE CABLE
35525BRACKET, THROTTLE CABLE
35526BRACKET, THROTTLE CABLE GUIDE
35556SHAFT, PARKING LOCK PAWL
35556ERING, E (FOR PARKING LOCK PAWL SHAFT)
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35572LEVER, TRANSMISSION CONTROL SHAFT, RH
35585ROD, PARKING LOCK
35595BRACKET, PARKING LOCK PAWL
9010106416
main90101-06416
9046106966
main90461-06966
9046814001
main90468-14001
9161140610
main91611-40610
9161140816
main91611-40816
9411050800
main94110-50800
9451200800
main94512-00800
9454200600
main94542-00600
9461110800
main94611-10800
26 parts on this diagram · 1 diagram in section
