TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

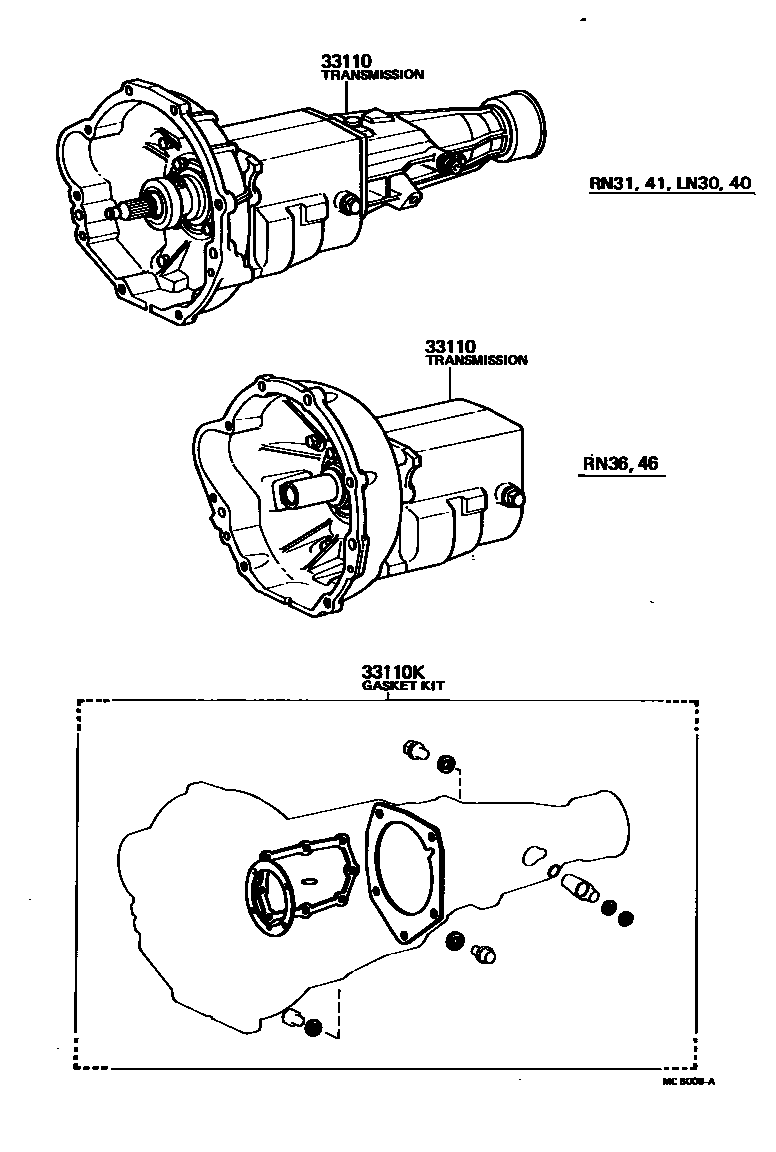

Parts diagram
33110TRANSMISSION ASSY, MANUAL
main33020-35180i197808-198008
main33030-35021i197808-198008
main33030-35022i198201-198208
main33030-35080i197901-198008
main33030-35090i198008-198201
SMG R=17:6
main33030-35091i198201-198208
SMG R=17:6
main33030-35120i198202-198307
main33030-35130i198202-198307
main33030-35160i198208-198307
main33030-35170i198208-198307
SMG R=17:6
main33110-35620i198101-198208
sub33110-35906
sub90341-18049
sub90430-18008
main33110-35670i198008-198202
sub33110-35902
sub90341-18049
sub90430-18008
main33110-35680i198008-198202
sub33110-35903
sub90341-18049
sub90430-18008
main33110-35710i198008-198108
main33110-35711i198211-198307
sub33110-35900
sub90341-18049
sub90430-18008
main33110-35730i198008-198108
main33110-35731i198211-198307
sub33110-35907
sub90341-18049
sub90430-18008
main33110-35760i198108-198208
sub33110-35909
sub90341-18049
sub90430-18008
main33110-35770i198208-198307
sub33110-35911
33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL
main04331-22030i197808-198202
main04331-26010i197808-198008
main04331-35071i198202-198208
main04331-35072i198211-198307
main04331-35080i198208-198307
sub04331-35101

2 parts on this diagram · 5 diagrams in section
