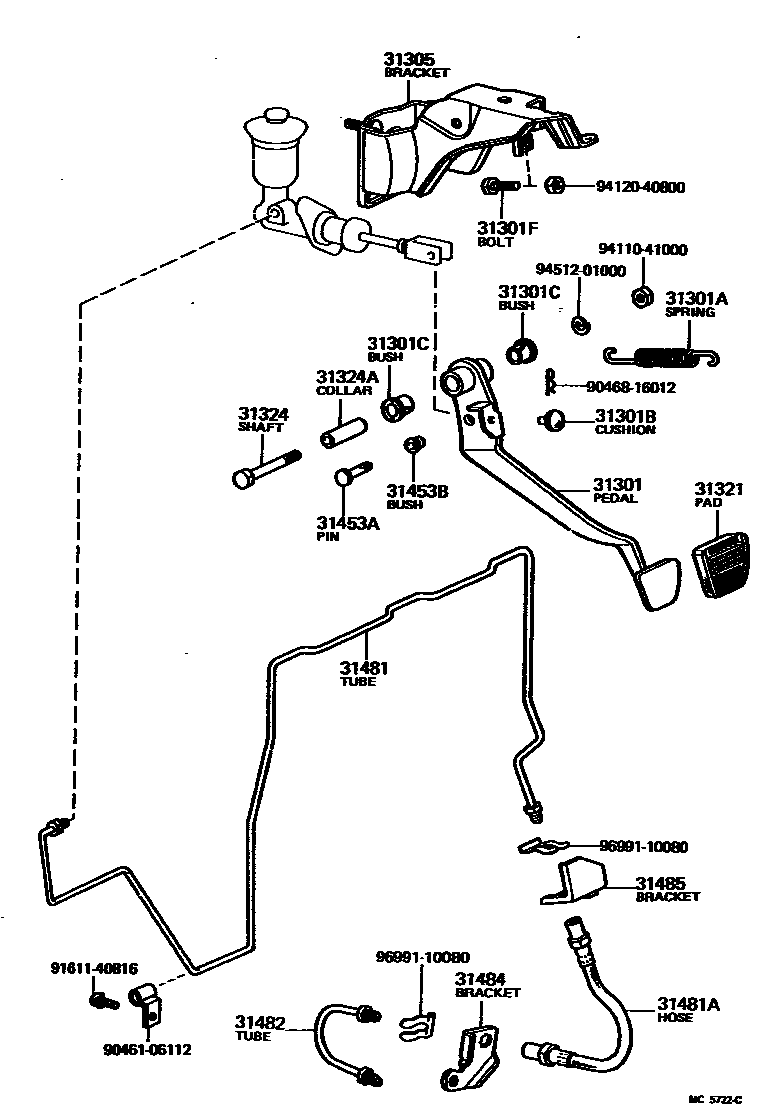

CLUTCH PEDAL & FLEXIBLE HOSE

31301PEDAL SUB-ASSY, CLUTCH

main31301-35110iLN40,RN3#,4#..MTM197808-198307

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14019iLN40,RN3#,4#..MTM197808-198307

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iLN40,RN3#,4#..MTM197808-198307

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iLN40,RN3#,4#..MTM197808-198307

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iLN40,RN3#,4#..MTM197912-198307

main90109-08001iRN32,42..MTM197808-197912

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-89102iLN40,RN3#,4#..MTM197808-198307

main55107-89104iRN34,44..5F..SR5198108-198307

W/CRUISE CONTROL

31321PAD, CLUTCH PEDAL

main31321-14010iLN40,RN3#,4#..MTM197808-198307

31324SHAFT, CLUTCH PEDAL

main91121-51060iLN40,RN3#,4#..MTM197808-198307

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iLN40,RN3#,4#..MTM197808-198307

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iRN3#,4#..MTM197808-198207

L=29.5

main90249-08028iLN40198101-198207

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLN40,RN3#,4#..MTM197808-198307

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-35110iRN32,34,42,44..MTM197808-198208

main31481-35111iRN34,44..MTM198208-198307

main31481-35140iRN37,38,47,48197901-198208

main31481-35141iRN38,48198208-198307

main31481-35180iLN40198101-198103

main31481-35181iLN40198103-198307

31481AHOSE, CLUTCH, NO.1

main90947-02272iRN3#,4#..MTM197808-198307

main90947-02410iLN40198101-198307

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-35100iRN32,34,42,44..MTM197808-198307

main31482-35120iRN37,38,47,48197901-198307

main31482-35130iLN40198101-198208

main31482-35150iLN40198208-198307

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-35090iRN3#,4#..MTM197808-198307

main31484-35110iLN40198101-198208

main31484-35121iLN40198208-198307

31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

main31485-35070iRN3#,4#..MTM197808-198208

main31485-35071iRN3#,4#..MTM198208-198307

main31485-35090iLN40198101-198307

9046106112

main90461-06112

9046816012

main90468-16012

9161140816

main91611-40816

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

9699110080

main96991-10080

23 parts on this diagram · 1 diagram in section
