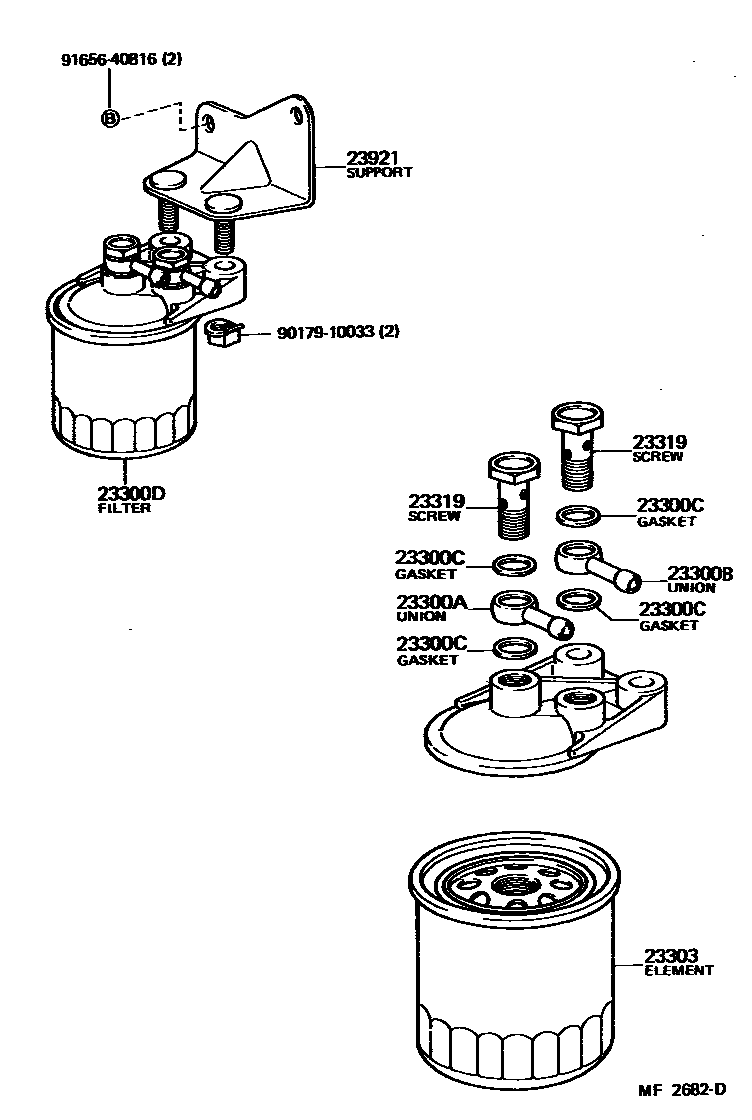

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

23300FILTER ASSY, FUEL

main23300-15010i22R..RN3#,4#198008-198208

main23300-34100i20R..RN3#,4#197808-198008

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016iL..LN40198207-198307

main90405-08160iL..LN40198101-198207

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016iL..LN40198207-198307

main90405-08160iL..LN40198101-198207

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030×4iL..LN40198101-198307

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54071iL..LN40198101-198307

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071iL..LN40198101-198307

23319SCREW, FUEL PIPE FOLLOW

main90099-18011×4iL..LN40198101-198307

23921SUPPORT, FUEL FILTER

main23921-35020i22R..RN3#,4#198008-198208

main23921-35021i22R..RN3#,4#198208-198307

main23921-38030i20R..RN3#,4#197808-198005

main23921-38050i20R..RN3#,4#198005-198008

main23921-54020iL..LN40198101-198307

9017910033

main90179-10033

9165640816

main91656-40816

10 parts on this diagram · 4 diagrams in section
