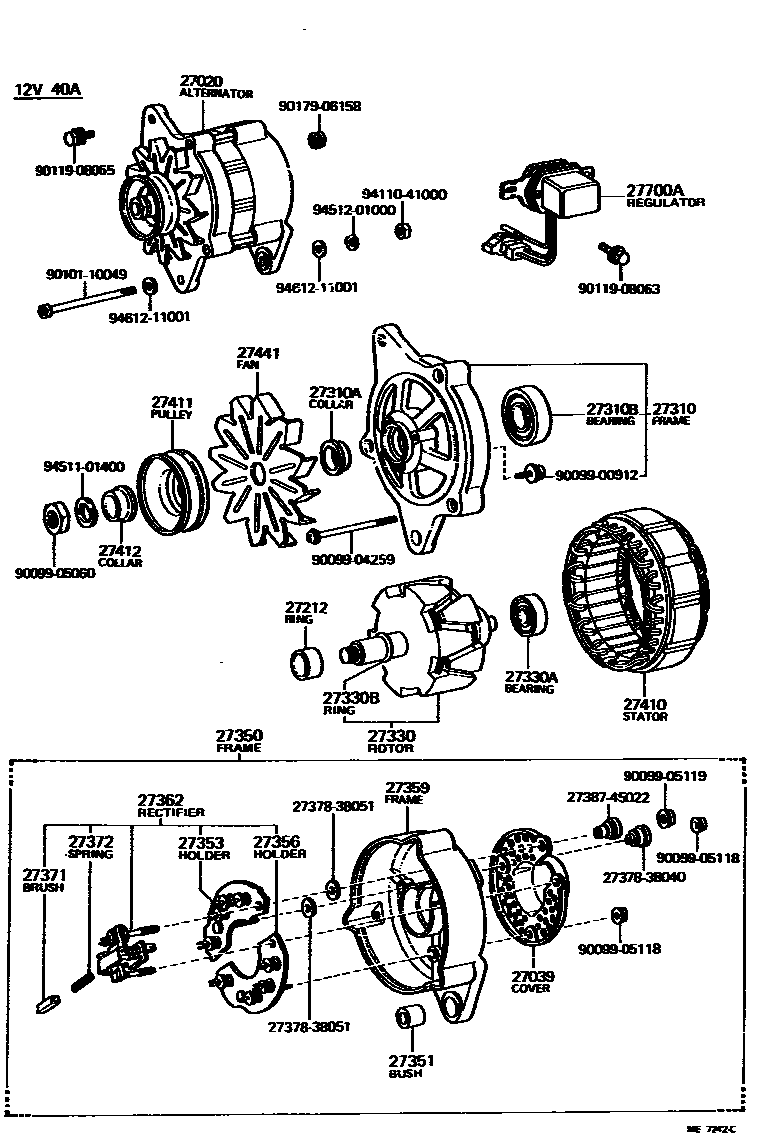

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

27020ALTERNATOR ASSY

main27020-35040i22R..RN34,44..USA198108-198307

12V 40A,W/O REGULATOR-STD TYPE

main27020-35050i22R..RN3#,4#..3FC,4F,5F; 22R..RN44..4FC..SR5198011-198108

12V 40A,W/O REGULATOR-IC TYPE

main27020-38013i20R..RN3#,4#..USA197808-197903

12V 40A,W/O REGULATOR

main27020-38014i20R..RN3#,4#..USA197903-198008

12V 40A,W/O REGULATOR

main27020-38110i20R..RN3#,4#197808-197906

12V 55A,W/O REGULATOR

main27020-38111i20R..RN3#,4#197906-198008

12V 55A,W/O REGULATOR

main27020-54080iL..LN40198101-198307

12V 55A,W/O REGULATOR

27039COVER, ALTERNATOR REAR END

main27039-38050i20R..RN3#,4#..USA197808-198008

12V 40A

main27039-45110i20R..RN3#,4#197808-197906

12V 55A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i20R..RN3#,4#..USA197808-198008

12V 40A

main27412-45070i22R..RN3#,4#..3FC,4F,5F; 22R..RN44..4FC..SR5198011-198108

12V 40A,W/O REGULATOR-IC TYPE

main27412-54040iL..LN40198101-198307

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-18010i22R..RN34,44..(4F,4FC,5F)..USA198008-198307

12V 40A,W/O REGULATOR-STD TYPE

main27310-34050i20R..RN3#,4#..USA197808-197903

12V 40A

main27310-38061i20R..RN3#,4#197903-198008

12V 40A,55A

main27310-54080iL..LN40198101-198307

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i20R,22R..RN3#,4#197808-198307

12V 40A,55A

main90099-19251iL..LN40198101-198307

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10115i20R..RN3#,4#197808-198008

12V 40A,55A

main90099-10120iL..LN40198101-198307

12V 55A

main90099-10125i22R..RN3#,4#..3FC,4F,5F; 22R..RN44..4FC..SR5198011-198108

12V 40A,W/O REGULATOR-IC TYPE

main90099-10126i22R..RN34,44..(4F,4FC,5F)..USA198008-198307

12V 40A,W/O REGULATOR-STD TYPE

27330ROTOR ASSY, ALTERNATOR

main27330-26050i20R..RN3#,4#..USA197808-198008

12V 40A

main27330-35050i22R..RN3#,4#198108-198307

12V 40A,W/O REGULATOR-IC TYPE

main27330-45090i20R..RN3#,4#197808-198008

12V 55A

main27330-54060iL..LN40198101-198307

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i22R..RN34,44..(4F,4FC,5F)..USA198008-198307

12V 40A,W/O REGULATOR-STD TYPE

main90099-10116i22R..RN3#,4#198008-198011

12V 40A,W/O REGULATOR-IC TYPE

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i20R..RN3#,4#..USA197808-198008

12V 40A

main90099-07108iL..LN40198101-198307

12V 55A

27350FRAME ASSY, RECTIFIER END

main27350-38051i20R..RN3#,4#..USA197808-198008

12V 40A

main27350-57061iL..LN40198101-198307

12V 55A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i20R,22R..RN3#,4#197808-198307

12V 40A,55A

main27351-56013iL..LN40198101-198307

12V 55A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-38050i20R..RN3#,4#..USA197808-198008

12V 40A

main27353-57070iL..LN40198101-198307

12V 55A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-38050i20R..RN3#,4#..USA197808-198008

12V 40A

main27356-57070iL..LN40198101-198307

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-35040i22R..RN34,44..(4F,4FC,5F)..USA198008-198307

12V 40A,W/O REGULATOR-STD TYPE

main27359-35050i22R..RN3#,4#198008-198011

12V 40A,W/O REGULATOR-IC TYPE

main27359-38050i20R..RN3#,4#..USA197808-198008

12V 40A

main27359-38110i20R..RN3#,4#197808-197906

12V 55A

main27359-38111i20R..RN3#,4#197906-198008

12V 55A

27362RECTIFIER ASSY, W/BRUSH

main27362-35050i22R..RN3#,4#198008-198011

12V 40A,W/O REGULATOR-IC TYPE

main27362-35051i22R..RN3#,4#..3FC,4F,5F; 22R..RN44..4FC..SR5198011-198108

12V 40A,W/O REGULATOR-IC TYPE

main27362-38051i20R..RN3#,4#..USA197808-198008

12V 40A

main27362-38110i20R..RN3#,4#197808-197906

12V 55A

main27362-38111i20R..RN3#,4#197906-198008

12V 55A

main27362-61100i22R..RN34,44..(4F,4FC,5F)..USA198008-198307

12V 40A,W/O REGULATOR-STD TYPE

27371BRUSH, ALTERNATOR

main27371-31011×2i20R..RN3#,4#..USA197808-198008

12V 40A

main27371-44070×2i20R..RN3#,4#197808-198008

12V 55A

main27371-56070×2iL..LN40198101-198307

12V 55A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i22R..RN3#,4#198008-198307

12V 40A

main27372-56070×2iL..LN40198101-198307

12V 55A

main90099-17114×2i20R..RN3#,4#197808-198008

12V 55A

27410STATOR ASSY, ALTERNATOR

main27410-15030i22R..RN34,44..(4F,4FC,5F)..USA198008-198307

12V 40A,W/O REGULATOR-STD TYPE

main27410-26050i20R..RN3#,4#..USA197808-198008

12V 40A

main27410-41080i22R..RN3#,4#198108-198307

12V 40A,W/O REGULATOR-IC TYPE

main27410-57070iL..LN40198101-198307

12V 55A

27411PULLEY, ALTERNATOR

main27411-31042i20R,22R..RN3#,4#197808-198307

12V 40A,55A

main27411-54020iL..LN40198101-198307

12V 55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i20R,22R..RN3#,4#197808-198307

12V 40A,55A

27441FAN, ALTERNATOR

main27441-34030i20R..RN3#,4#..USA197808-197903

12V 40A

main27441-45110i22R..RN3#,4#..3FC,4F,5F; 22R..RN44..4FC..SR5198011-198108

12V 40A,W/O REGULATOR-IC TYPE

main27441-54070iL..LN40198101-198307

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-26030i20R..RN3#,4#..USA197808-197903

12V 40A ALTERNATOR

main27700-35010i22R..RN34,44..(4F,4FC,5F)..USA198008-198108

STANDARD REGULATOR

main27700-38110i22R..RN3#,4#..3FC,4F,5F; 22R..RN44..4FC..SR5198011-198108

IC REGULATOR

main27700-38113i22R..RN3#,4#198202-198307

IC REGULATOR

main27700-38120i20R..RN3#,4#..USA197903-198008

12V 40A ALTERNATOR

main27700-57060iL..LN40198101-198307

IC REGULATOR

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737838051INSULATOR, ALTERNATOR, NO.1

main27378-38051

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904259

main90099-04259

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908063

main90119-08063

9011908065

main90119-08065

9017906158

main90179-06158

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

38 parts on this diagram · 6 diagrams in section
