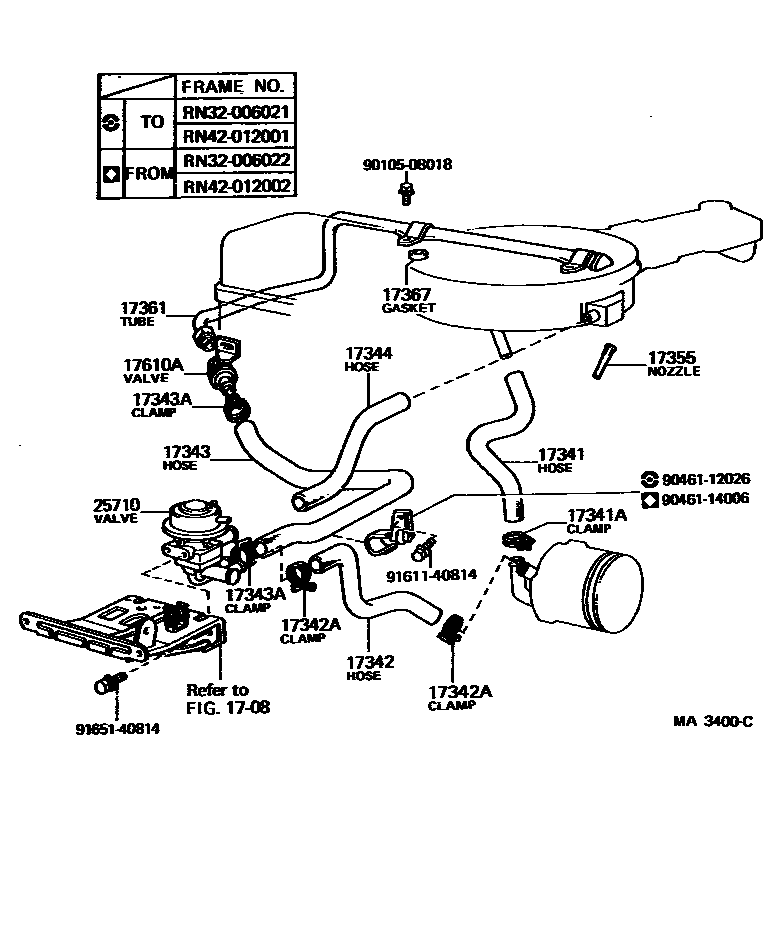

MANIFOLD AIR INJECTION SYSTEM

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

1708VACUUM PIPING

→ Go to FIG 17-08

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-35010i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198008-198208

CALIFORNIA SPEC

main17341-35011i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198208-198307

CALIFORNIA SPEC

main17341-35020i22R..RN34,44..3QT,HLF198108-198208

main17341-35021i22R..RN34,44..3QT,HLF; 22R..RN38,48..USA198208-198307

main17341-38030i20R..RN37..USA197901-197908

main17341-38040i20R..RN32,42; 20R..RN37..USA197908-198008

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main96111-10330i20R..RN37..USA197901-198008

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-35010i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198008-198208

CALIFORNIA SPEC

main17342-35020i22R..RN38,48..USA198008-198208

main17342-35030i22R..RN34,44..3QT,HLF; 22R..RN38,48..USA198208-198307

main17342-35040i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198208-198307

CALIFORNIA SPEC

main17342-38040i20R..RN37..USA197901-197908

main17342-38050i20R..RN32,42; 20R..RN37..USA197908-198008

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-26001×2i22R..RN34,44..3QT,HLF; 22R..RN38,48..USA198208-198307

main90467-28003×2i20R..RN32,42; 20R..RN37..USA197908-198008

main90467-31002i22R..RN38,48..USA198008-198208

main96111-10330×2i20R..RN32,42197808-197908

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-35010i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198008-198208

CALIFORNIA SPEC

main17343-35020i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198208-198307

CALIFORNIA SPEC

main17343-38031i20R..RN37..USA197901-197908

main17343-38040i20R..RN32,42; 20R..RN37..USA197908-198008

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-28003×2i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198208-198307

CALIFORNIA SPEC

main96111-10330×2i20R..RN37..USA197901-197908

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-35010i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198008-198208

CALIFORNIA SPEC

main17344-35011i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198208-198307

CALIFORNIA SPEC

main17344-38040i20R..RN32,42197808-197904

main17344-38050i20R..RN32,42; 20R..RN37..USA197908-198008

main17344-38060i20R..RN32,42197904-197908

17355NOZZLE, AIR INJECTION

main17355-38010×4i20R..RN37..USA197901-198008

17361TUBE, AIR

main17360-38020i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN44..HVY198008-198307

CALIFORNIA SPEC

17367GASKET, AIR TUBE

main17376-38010×2i20R..RN32,42197808-197811

main17376-38011×2i20R..RN37..USA197901-198008

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10028i20R..RN32,42197808-198008

25710VALVE ASSY, AIR SWITCHING

main25710-35010i22R..RN38,48..USA198008-198108

main25710-35020i22R..RN34,44..3QT,HLF; 22R..RN38,48..USA198108-198208

main25710-38030i20R..RN37..USA197901-197908

main25710-38040i20R..RN32,42; 20R..RN37..USA197908-198008

9010508018

main90105-08018

9046112026

main90461-12026

9046114006

main90461-14006

9161140814

main91611-40814

9165140814

main91651-40814
