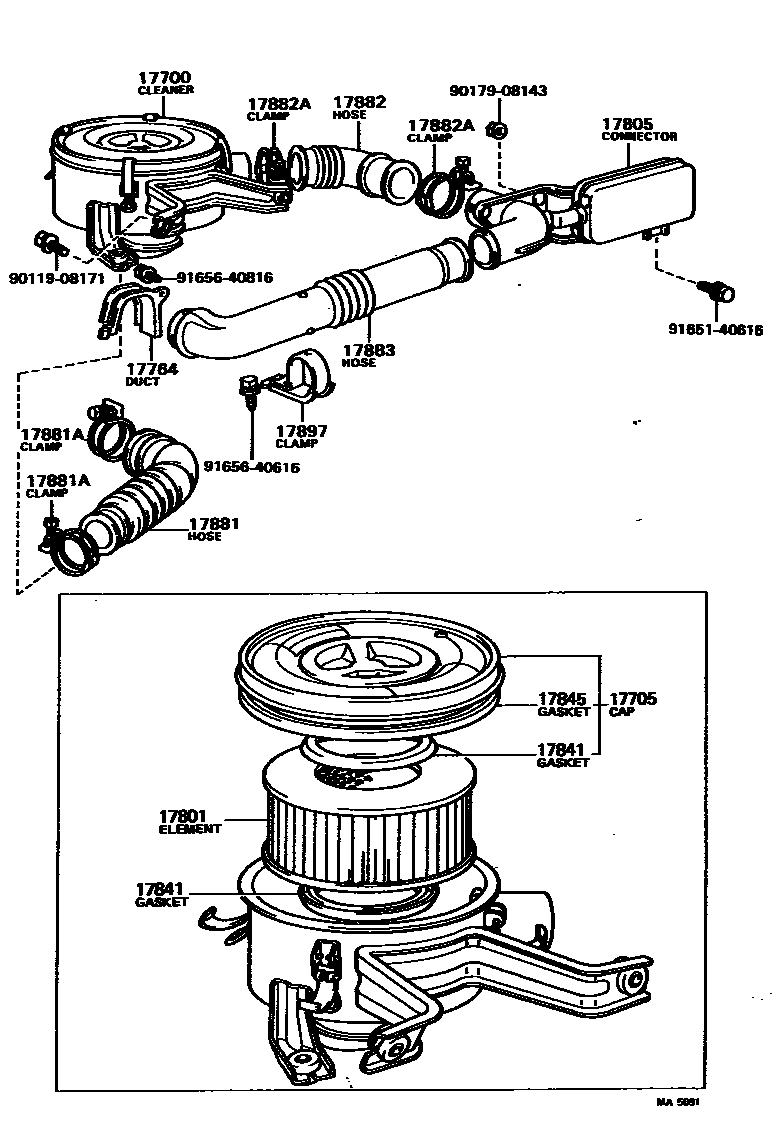

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-35040i22R..RN3#,4#..MTM..(3QT,HLF); 22R..RN44..HVY198008-198108

CALIFORNIA SPEC

main17700-35050i22R..RN38,48..CND; 22R..RN44..4FC198008-198108

CALIFORNIA SPEC

main17700-35060i22R..RN38,48..USA198008-198108

main17700-35080i22R..RN3#,4#..MTM..(3QT,HLF)..USA; 22R..RN44..HVY198108-198208

CALIFORNIA SPEC

main17700-35081i22R..RN3#,4#..MTM..(3QT,HLF)..USA; 22R..RN44..HVY198208-198307

CALIFORNIA SPEC

main17700-35090i22R..RN38,48..CND198108-198112

main17700-35091i22R..RN44..4FC..USA198208-198307

CALIFORNIA SPEC

main17700-35100i22R..RN34,44..3QT,HLF; 22R..RN38,48..USA198108-198208

main17700-35101i22R..RN34,44..3QT,HLF; 22R..RN38,48..USA198208-198307

main17700-35120i22R..RN38,48..CND198112-198307

main17700-38090i20R..RN32,42197808-197908

main17700-38091i20R..RN32,42197908-198008

main17700-38100i20R..RN37197901-197908

main17700-38110i20R..RN37197908-198008

main17700-54071iL..LN40198101-198307

17705CAP SUB-ASSY, AIR CLEANER

main17705-35030i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN38,48..CND; 22R..RN44..HVY198008-198108

CALIFORNIA SPEC

main17705-35040i22R..RN38,48..USA198008-198108

main17705-35060i22R..RN3#,4#..(3QT,HLF)..USA; 22R..RN38,48..CND; 22R..RN44..HVY198108-198307

CALIFORNIA SPEC

main17705-35070i22R..RN34,44..3QT,HLF; 22R..RN38,48..USA198108-198307

main17705-38020i20R..RN32,42197808-197908

main17705-38050i20R..RN37197901-197908

main17705-38051i20R..RN37197908-198008

main17705-38060i20R..RN32,42197908-198008

main17705-54032iL..LN40198101-198307

17764DUCT, AIR CLEANER

main53207-89102iL..LN40198101-198307

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41090i20R,22R..RN3#,4#197808-198307

main17801-54030iL..LN40198101-198307

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-89102i22R..RN3#,4#198008-198307

main17805-89103iL..LN40198101-198307

17841GASKET, FILTER ELEMENT

main17841-41050×2i20R,22R..RN3#,4#197808-198307

main17841-54010×2iL..LN40198101-198307

17845GASKET, AIR CLEANER CAP

main17845-35010i22R..RN3#,4#198008-198307

main17845-38011i20R..RN32,42197808-198008

main17845-38020i20R..RN37197901-198008

main17845-54010iL..LN40198101-198307

17881HOSE, AIR CLEANER, NO.1

main17881-26010i20R..RN3#,4#197808-198008

main17881-37030i22R..RN3#,4#198008-198307

main17881-54060iL..LN40198101-198307

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690×2iL..LN40198101-198307

17882HOSE, AIR CLEANER, NO.2

main17882-89101i20R..RN3#,4#197808-198008

main17882-89104iL..LN40198101-198307

main17882-89105i22R..RN3#,4#198008-198307

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i20R..RN3#,4#197808-198008

main90460-01017i22R..RN3#,4#198008-198307

AIR CLEANER SIDE

main96111-10690i22R..RN38,48198108-198307

CONNECTOR SIDE

main96111-10710i22R..RN34,44198108-198307

CONNECTOR SIDE

17883HOSE, AIR CLEANER, NO.3

main17883-89102iL..LN40198101-198307

main17883-89103i22R..RN3#,4#198008-198307

17897CLAMP, HOSE(FOR AIR CLEANER)

main90461-09002iL..LN40198101-198307

9011908171

main90119-08171

9017908143

main90179-08143

9165140616

main91651-40616

9165640616

main91656-40616

9165640816

main91656-40816

18 parts on this diagram · 4 diagrams in section
