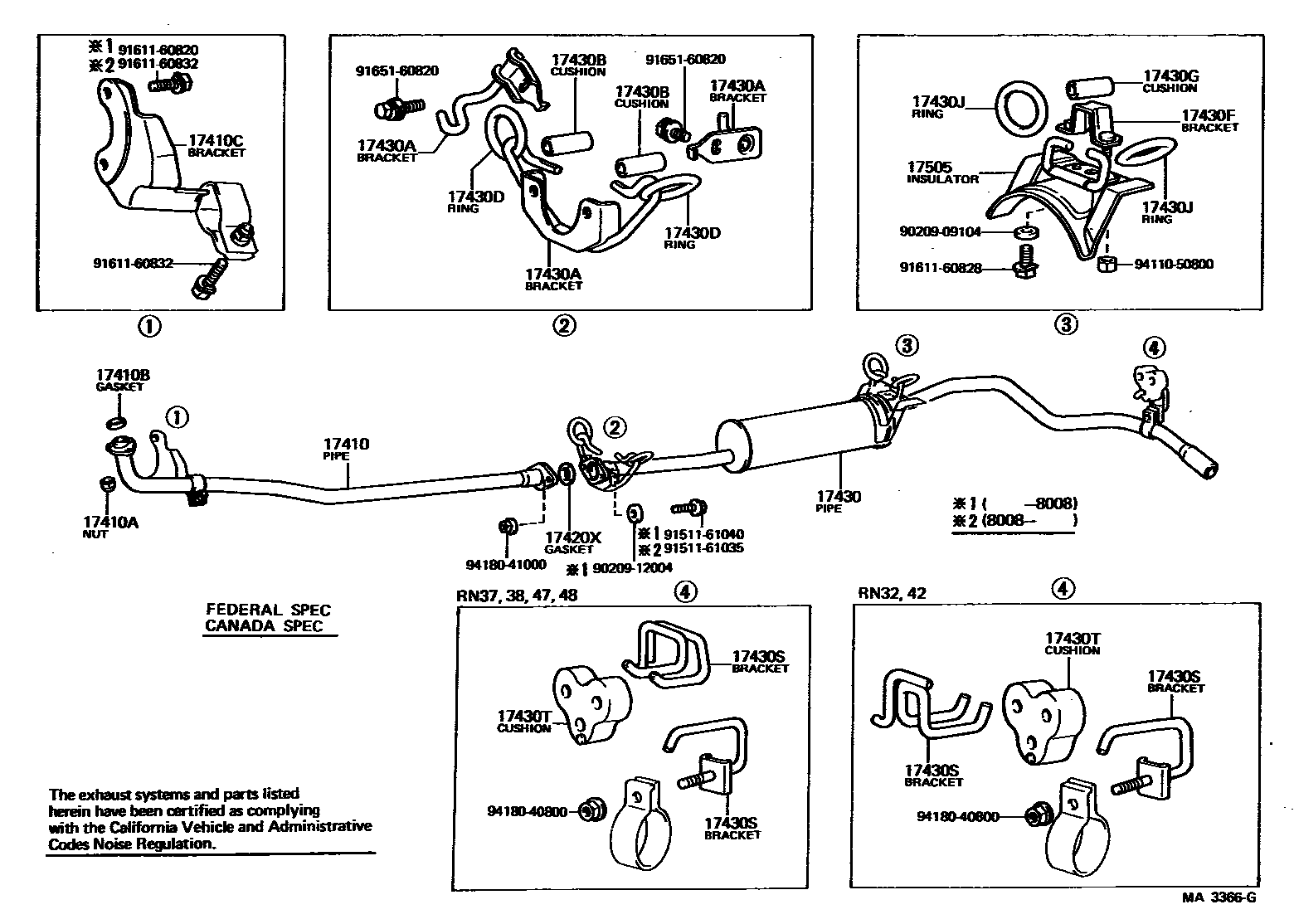

EXHAUST PIPE

0001 1 0004 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-35090i22R..RN38,48..USA198208-198307

main17410-35100i22R..RN34,44..3QT,HLF198208-198307

main17410-38111i20R..RN32,42..3QT,HLF197808-198008

main17410-38120i20R..RN32,42..USA197808-198008

CALIFORNIA SPEC

main17410-38160i20R..RN37197901-197911

main17410-38161i20R..RN37197911-198008

main17410-38162i22R..RN38,48..CND198008-198307

main17410-38170i20R..RN37..USA197901-197911

CALIFORNIA SPEC

main17410-38171i20R..RN37..USA197911-198008

CALIFORNIA SPEC

main17410-38190i20R..RN42..HVY197908-198008

main17410-54140iL..LN40198101-198307

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010×3iL,20R,22R..LN40,RN3#,4#197808-198307

17410BGASKET, EXHAUST PIPE

main90917-06001×2i20R..RN3#,4#..USA197808-198008

CALIFORNIA SPEC

main90917-06004iL..LN40198101-198307

main90917-06012i20R..RN3#,4#197808-198008

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17506-38070i22R..RN38,48..CND198008-198307

main17506-38080i22R..RN44..3QT..USA198108-198208

main17571-38080i20R..RN3#,4#197808-198008

main17571-38090i22R..RN34,44..4F198201-198208

main17571-38110i20R..RN42..HVY197908-198008

main17571-54050iL..LN40198101-198210

main17571-54130iL..LN40198210-198307

17420PIPE ASSY, EXHAUST, CENTER

main17420-38070i22R..RN44..HVY198008-198108

RR

main17420-38080i22R..RN44..HVY198008-198108

FR

main17420-38090i22R..RN44..HVY198108-198307

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004iL..LN40198101-198307

main90917-06012×2i22R..RN44..HVY198008-198108

17430PIPE ASSY, EXHAUST, TAIL

main17430-38190i20R..RN32197808-197908

main17430-38200i20R..RN42197808-197908

main17430-38210i20R..RN32..USA197808-198008

CALIFORNIA SPEC

main17430-38211i22R..RN34..USA198008-198307

main17430-38220i20R..RN42..USA197808-198008

CALIFORNIA SPEC

main17430-38221i22R..RN44..(3QT,HLF)..USA198008-198307

main17430-38300i20R..RN37197901-197908

main17430-38301i22R..RN38..CND198008-198307

main17430-38311i22R..RN48..CND198008-198307

main17430-38320i20R..RN37..USA197901-198008

CALIFORNIA SPEC

main17430-38321i22R..RN38..USA198008-198307

main17430-38331i22R..RN48..USA198008-198307

main17430-38390i20R..RN42..HVY197908-198008

main17430-38391i22R..RN44..HVY..USA198008-198307

main17430-38400i20R..RN32..CND; 20R..RN32..USA197908-198008

COLD SPEC

main17430-38401i22R..RN34..CND; 22R..RN34..USA198008-198307

COLD SPEC

main17430-38410i20R..RN42..CND..CBU; 20R..RN42..USA197908-198008

CALIFORNIA&COLD SPEC

main17430-38411i22R..RN44..(3QT,HLF)..USA; 22R..RN44..CND..CBU198008-198307

COLD SPEC

main17430-38420i20R..RN42..HVY197908-198008

COLD SPEC

main17430-38421i22R..RN44..CND..IV; 22R..RN44..HVY..USA198008-198307

COLD SPEC

main17430-38430i20R..RN37..CND; 20R..RN37..USA197908-198008

CALIFORNIA&COLD SPEC

main17430-38431i22R..RN38..USA198008-198307

COLD SPEC

main17430-38441i22R..RN48..USA198008-198307

COLD SPEC

main17430-54180iL..LN40..USA198101-198307

main17430-54210iL..LN40..CND; L..LN40..USA198101-198307

COLD SPEC

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17503-31020i20R..RN32,42..3QT,HLF197808-198008

CTR

main17503-31021i22R..RN34,44..3QT,HLF198008-198307

CTR

main17503-31031iL..LN40198101-198307

CTR

main17503-38100i20R..RN37197901-198008

CTR

main17503-38101i22R..RN38,48198008-198307

CTR

main17503-38120i20R..RN42..HVY197908-198008

CTR

main17504-31010iL..LN40198101-198307

RH

main17507-31060iL..LN40198101-198307

LH

main17508-35010i22R..RN44..HVY198008-198307

UPR

main17563-38070i22R..RN44..HVY198008-198307

LWR

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i22R..RN44..HVY198008-198307

main90540-09003×2iL..LN40198101-198307

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-33001×2iL,20R,22R..LN40,RN3#,4#197808-198307

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17574-38070i22R..RN44..HVY198008-198307

main17576-31050i20R..RN3#,4#197808-198008

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main90540-09003i20R..RN3#,4#197808-198008

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-33001×2i22R..RN3#,4#..3QT,HLF198008-198307

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-38060i22R..RN44..HVY198008-198307

UPR

main17566-34030i20R,22R..RN37,38,47,48197901-198307

LWR

main17566-38031i20R..RN32,42197808-198008

LWR

main17566-38032i22R..RN34,44..3QT,HLF198008-198307

LWR

main17566-38040i22R..RN44..HVY198008-198307

LWR

main17577-34050i20R,22R..RN37,38,47,48197901-198307

UPR

main17577-38030i20R..RN32,42197808-198008

UPR

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17563-31090i20R..RN3#,4#197808-198008

17505INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1

main17505-31010iL..LN40198101-198307

main17505-38050i22R..RN44..HVY198008-198307

9020909104

main90209-09104

9020912004

main90209-12004

9151161035

main91511-61035

9151161040

main91511-61040

9161160820

main91611-60820

9161160828

main91611-60828

9161160832

main91611-60832

9165160820

main91651-60820

9411050800

main94110-50800

9418040800

main94180-40800

9418041000

main94180-41000

27 parts on this diagram · 9 diagrams in section
