MANIFOLD

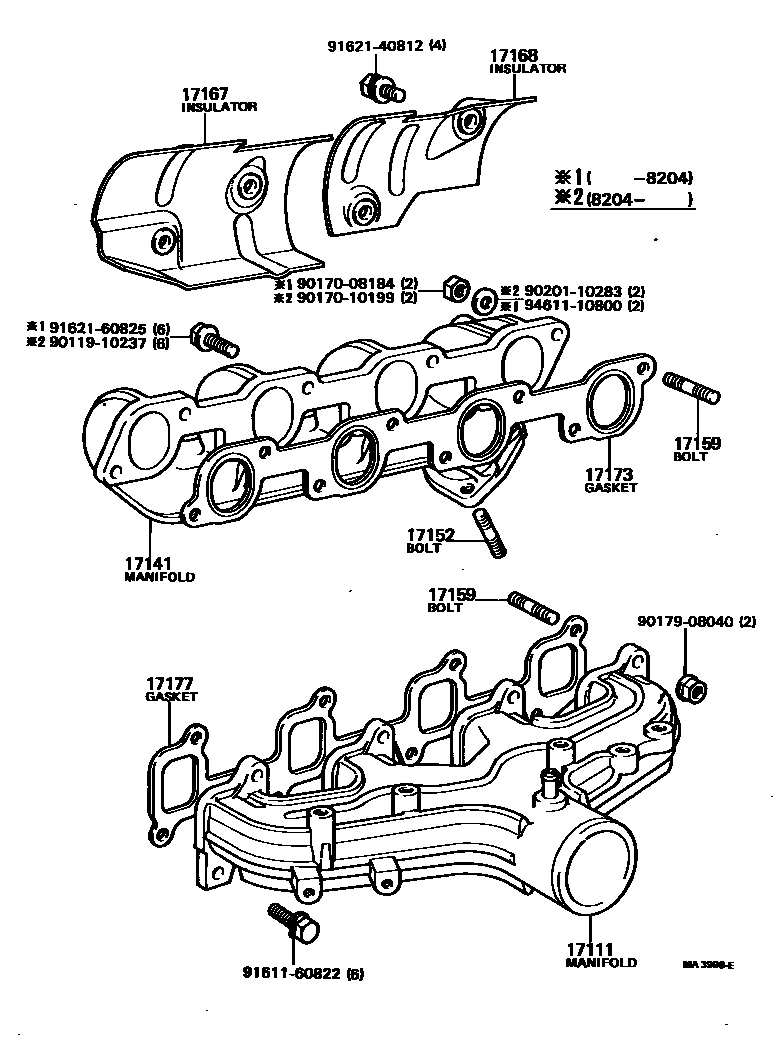

Parts diagram
17111MANIFOLD, INTAKE
main17101-54030i198101-198307
main17111-35010i198008-198009
sub17111-35011
sub78184-14031
sub78184-20050
sub91611-40818
main17111-35012i198009-198208
main17111-35030i198208-198307
main17111-38030i197808-198002
sub17111-38032
main17111-38031i198002-198008
sub17111-38032
sub90340-16002
main17111-38040i197901-198002
sub17111-38043
main17111-38041i198002-198008
sub17111-38043
sub90340-16002
17141MANIFOLD, EXHAUST
main17141-35010i198008-198207
CALIFORNIA SPEC
sub17141-35040
main17141-35020i198008-198207
sub17141-35050
main17141-35040i198207-198307
CALIFORNIA SPEC
main17141-35050i198207-198307
main17141-35060i198207-198307
main17141-38011i197808-197905
sub17141-38012
main17141-38012i197905-198207
sub17141-35060
main17141-38021i197808-198008
CALIFORNIA SPEC,NO.2
main17141-39035i197808-198008
CALIFORNIA SPEC,NO.1
sub17141-39036
main17141-54011i198101-198204
sub17141-54012
main17141-54012i198204-198307
sub17141-54040
sub90116-10091
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
main90116-10027i198101-198207
L=45.4,S=14&20
main90116-10039i197808-198108
L=39,S=15&15
sub90116-10058
main90116-10058i198108-198303
L=46.5,S=14&20
main90116-10071i198207-198302
L=47.4,S=14&22
sub90116-10088
main90116-10087i198303-198307
L=46.5,S=14&20
main90116-10088i198302-198307
L=47.4,S=14&22
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90116-08013i197808-198210
INTAKE MANIFOLD SIDE
main90116-08053i198204-198307
INTAKE MANIFOLD SIDE
main90116-08053i198101-198204
main90116-08172i198210-198307
INTAKE MANIFOLD SIDE
main90116-10011i198010-198206
L=42,S=12&25
main90116-10027i198204-198207
EXHAUST MANIFOLD SIDE
main90116-10050i198008-198010
sub90116-10011
main90116-10064i198206-198307
EXHAUST,LWR L=38,S=13&13
main90116-10067i198206-198307
EXHAUST,UPR L=45,S=12&23
main90116-10071i198207-198302
EXHAUST MANIFOLD SIDE
sub90116-10088
main90116-10088i198302-198307
EXHAUST MANIFOLD SIDE
main90116-10317i197808-198206
L=36,S=13&13
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
main17167-35010i198008-198112
sub17167-35011
main17167-35011i198112-198208
main17167-35020i198008-198112
sub17167-35021
main17167-35021i198112-198208
main17167-38031i197901-198008
sub17167-35020
main17167-38040i197808-198008
main17167-54011i198101-198307
sub17167-54040
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
main17167-35040i198208-198307
CALIFORNIA SPEC
sub17167-35041
main17167-35050i198208-198307
sub17167-35070
main17168-35010i198008-198208
CALIFORNIA SPEC
main17168-35020i198008-198208
main17168-38040i197808-198008
main17168-38050i197808-198008
CALIFORNIA SPEC
sub17168-38060
main17168-54011i198101-198307
sub17168-54012
17173GASKET, EXHAUST MANIFOLD TO HEAD
main17173-35020i198208-198307
sub17173-35021
main17173-54010i198101-198204
sub17173-54011
main17173-54011i198204-198307
sub17173-54012
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17177-35010i198008-198009
sub17177-35011
main17177-35011i198009-198208
sub17177-35022
main17177-35020i198208-198303
sub17177-35021
main17177-35021i198303-198307
sub17177-35022
main17177-38011i197901-198008
sub17177-37011
main17177-38020i197808-197901
sub17177-38021
main17177-38021i197901-198008
sub17177-37021
main17177-54010i198101-198107
sub17177-54011
main17177-54011i198107-198307
sub17177-54012
9011910237
main90119-10237
9017008184
main90170-08184
9017010199
main90170-10199
9017908040
main90179-08040
9020110283
main90201-10283
9161160822
main91611-60822
9162140812
main91621-40812
9162160825
main91621-60825
9461110800
main94611-10800

17 parts on this diagram · 8 diagrams in section
