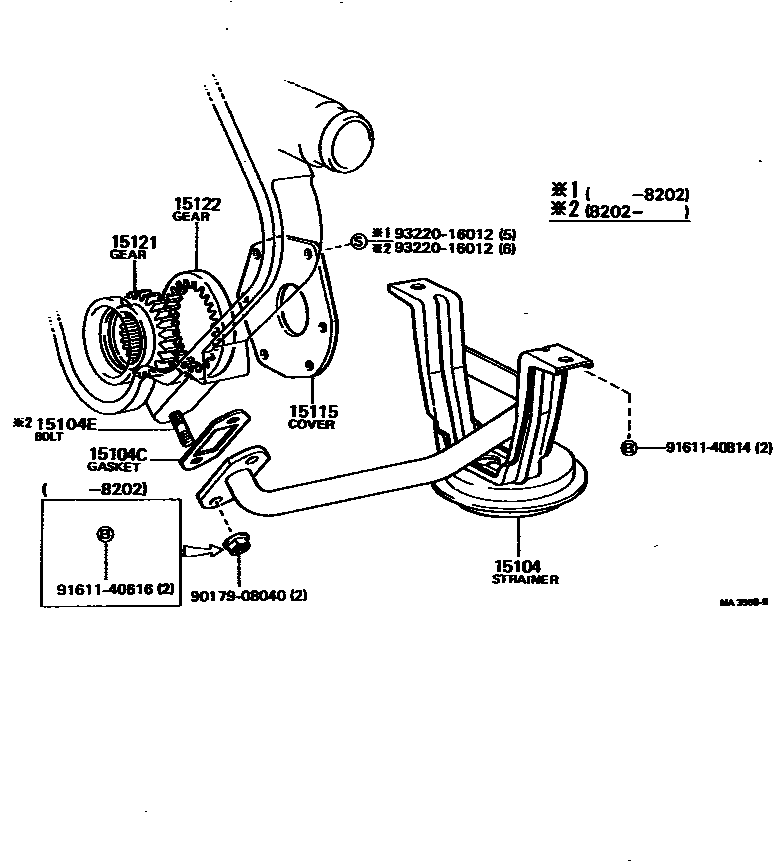

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-38040i20R,22R..RN32,34,42,44197808-198307

main15104-38050i20R,22R..RN37,38,47,48197901-198307

main15104-54040iL..LN40198101-198111

main15104-54041iL..LN40198111-198202

main15104-54042iL..LN40198202-198307

15104CGASKET(FOR OIL STRAINER)

main15147-38020i20R,22R..RN3#,4#197808-198307

main15149-54010iL..LN40198101-198202

main15149-54011iL..LN40198202-198307

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2iL..LN40198202-198307

15115COVER, OIL PUMP

main15115-38022i20R,22R..RN3#,4#197808-198307

main15115-54010iL..LN40198101-198202

main15115-54011iL..LN40198202-198307

15121GEAR, OIL PUMP DRIVE

main15121-38020i20R,22R..RN3#,4#; L..LN40197808-198202

main15121-54010iL..LN40198202-198307

15122GEAR, OIL PUMP DRIVEN

main15122-38020i20R,22R..RN3#,4#; L..LN40197808-198202

main15122-54010iL..LN40198202-198307

9017908040

main90179-08040

9161140616

main91611-40616

9161140814

main91611-40814

9322016012

main93220-16012

10 parts on this diagram · 2 diagrams in section
