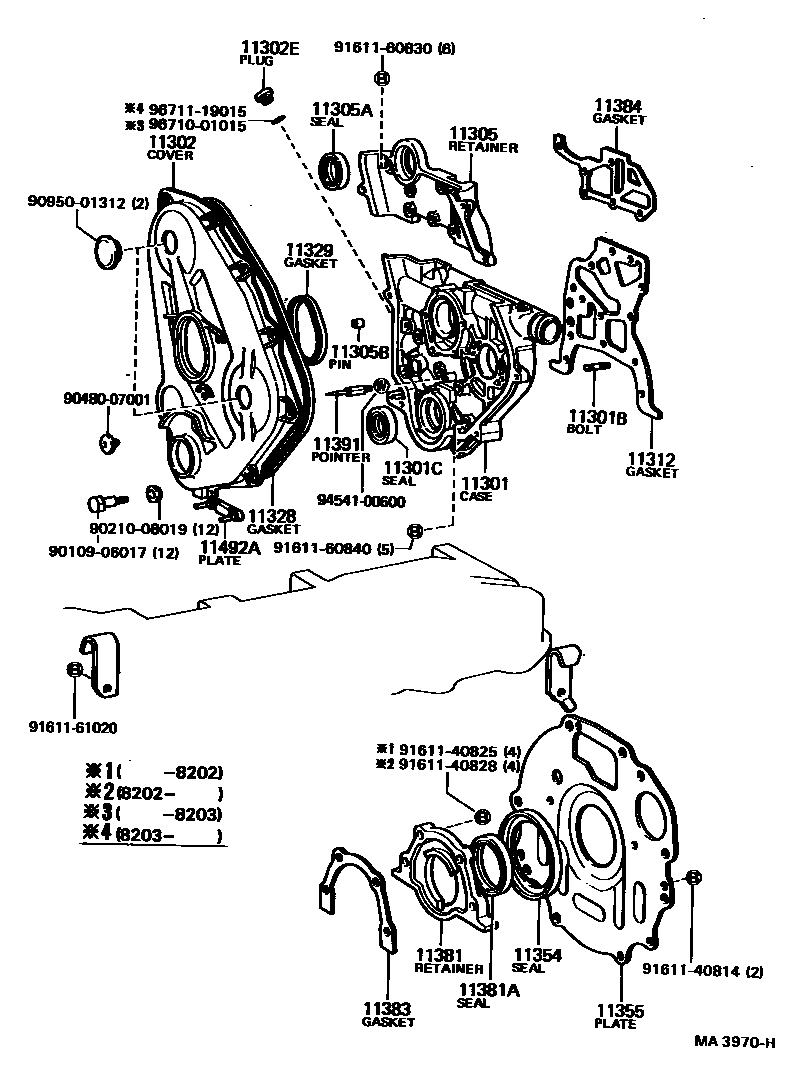

TIMING GEAR COVER & REAR END PLATE
11301CASE SUB-ASSY, TIMING GEAR
11301BBOLT,STUD(FOR TIMING GEAR CASE)
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)
11305RETAINER, OIL SEAL, NO.2
11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)
11312GASKET, FRONT END PLATE
11328GASKET, TIMING GEAR OR CHAIN COVER
11329GASKET, TIMING GEAR REAR COVER
11354SEAL, FLYWHEEL HOUSING DUST
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
HTC 80 100 12
HTC 85 105 13
11383GASKET, ENGINE REAR OIL SEAL RETAINER
11384GASKET, OIL SEAL RETAINER, NO.2
11391POINTER, TIMING
11492APLATE, WATER SEAL
9010906017
main90109-06017
9021008019
main90210-08019
9048007001
main90480-07001
9095001312
main90950-01312
9161140814
main91611-40814
9161140825
main91611-40825
9161140828
main91611-40828
9161160830
main91611-60830
9161160840
main91611-60840
9161161020
main91611-61020
9454100600
main94541-00600
9671001015
main96710-01015
9671119015
main96711-19015
32 parts on this diagram · 2 diagrams in section
