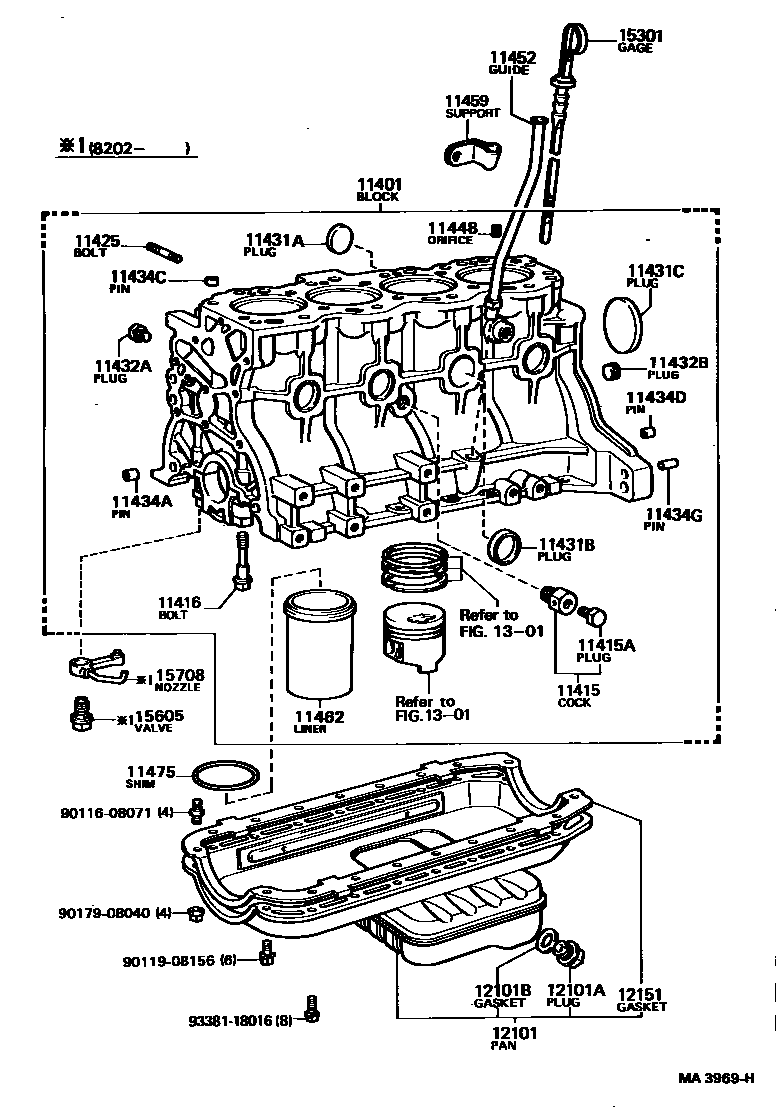

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39256i20R..RN3#,4#197808-197908

main11401-39257i20R..RN3#,4#197908-198008

main11401-39315i22R..RN3#,4#198008-198107

main11401-39365i22R..RN3#,4#198107-198203

main11401-39366i22R..RN3#,4#198203-198307

main11401-59066iL..LN40198101-198105

main11401-59067iL..LN40198105-198109

main11401-59106iL..LN40198109-198202

main11401-59107iL..LN40198202-198207

main11401-59185iL..LN40198207-198210

main11401-59195iL..LN40198210-198304

main11401-59235iL..LN40198304-198307

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09070i22R..RN3#,4#198205-198307

main96431-03833i20R,22R..RN3#,4#; L..LN40197808-198205

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09072i22R..RN3#,4#198205-198307

main96431-23814i20R,22R..RN3#,4#; L..LN40197808-198205

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02042×10i20R,22R..RN3#,4#197808-198307

*12-1.25PX75-25

main90910-02061×10iL..LN40198101-198307

*12-1.25PX80-24

11425BOLT, STUD(FOR OIL FILTER)

main90116-08053×2iL..LN40198101-198202

L=36,S=11&14

main90116-08157×3iL..LN40198202-198307

L=36,S=11&14

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500×2iL..LN40198101-198307

OD=25

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500×4iL..LN40198101-198307

OD=35

main96411-44000×6i20R,22R..RN3#,4#197808-198307

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000iL..LN40198101-198307

OD=50

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53002i22R..RN3#,4#198103-198307

RR

main90344-53008×2i20R..RN3#,4#197808-197904

main90344-53011i20R,22R..RN3#,4#197904-198103

RR

main90345-51006iL..LN40198210-198307

main90345-51025iL..LN40198101-198210

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-52013i20R,22R..RN3#,4#197808-198307

main90344-53002iL..LN40198306-198307

main90344-53011iL..LN40198101-198306

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90253-11001×2iL..LN40198101-198307

L=11,OD=11,L=11,OD=11

main90253-11021×4i20R,22R..RN3#,4#197808-198307

L=8,OD=11,L=8,OD=11

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i20R,22R..RN3#,4#197808-198307

L=18,OD=8,L=18,OD=9

main90253-15005×2iL..LN40198101-198307

L=7,OD=14.5,L=7,OD=14.5

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90253-11001×2iL..LN40198101-198307

L=11,OD=11,L=11,OD=11

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192×2iL..LN40198101-198307

L=22,OD=10

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54010iL..LN40198101-198212

main11448-54020iL..LN40198212-198307

11452GUIDE, OIL LEVEL GAGE

main11452-38020i20R,22R..RN3#,4#197808-198307

main11452-54010iL..LN40198101-198307

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-38020i20R,22R..RN3#,4#197808-198307

main90461-10271iL..LN40198101-198307

11462LINER, CYLINDER

main11461-54010×4iL..LN40198101-198307

11475SHIM, CYLINDER LINER

main11475-54010iL..LN40198101-198307

T=0.05

main11476-54010iL..LN40198101-198307

T=0.10

12101PAN SUB-ASSY, OIL

main12101-39235i20R,22R..RN32,34,42,44197808-198307

main12101-39285i20R,22R..RN37,38,47,48197901-198307

main12101-59105iL..LN40198101-198307

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i20R,22R..RN3#,4#; L..LN40197808-198307

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i20R,22R..RN3#,4#; L..LN40197808-198307

12151GASKET, OIL PAN

main12151-35010i22R..RN3#,4#198211-198307

main12151-38010i20R,22R..RN3#,4#197808-198211

main12151-54020iL..LN40198101-198307

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-35010i22R..RN3#,4#198108-198307

main15301-38040i20R,22R..RN3#,4#197808-198108

main15301-54030iL..LN40198101-198307

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010×4iL..LN40198202-198307

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54010×4iL..LN40198202-198307

9011608071

main90116-08071

9011908156

main90119-08156

9017908040

main90179-08040

9338118016

main93381-18016

31 parts on this diagram · 3 diagrams in section
