ENGINE OVERHAUL GASKET KIT

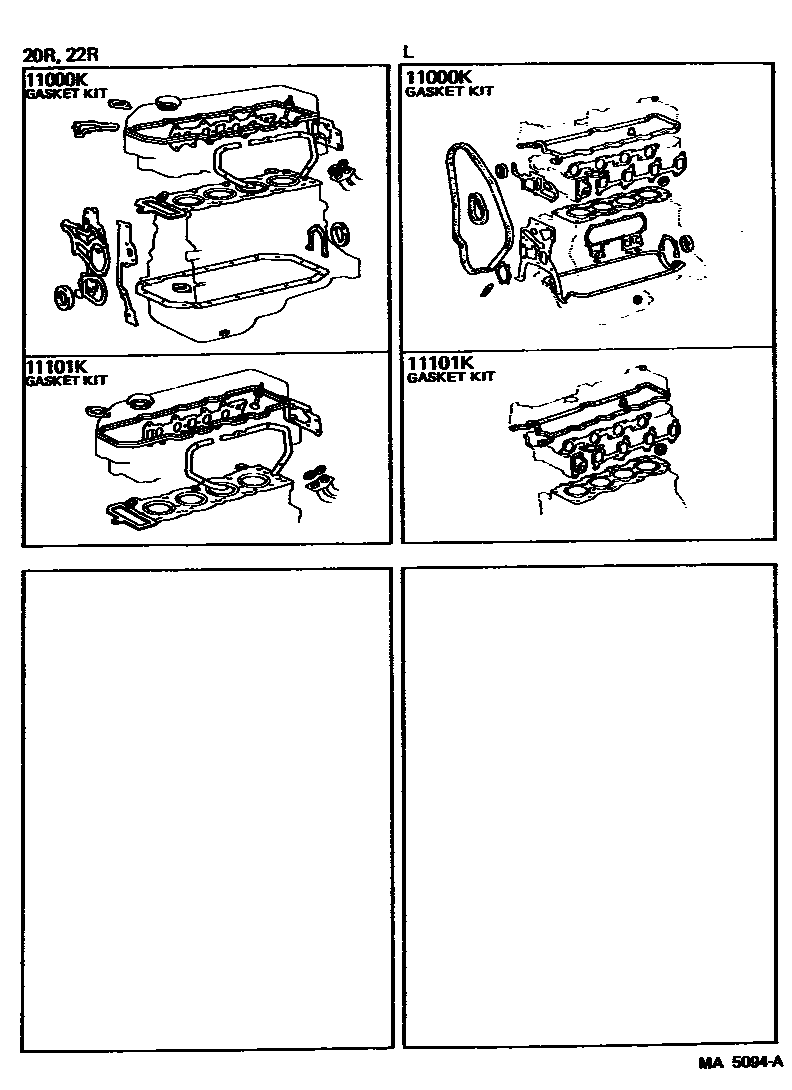

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-35021i198008-198208

main04111-35022i198208-198307

main04111-38017i197808-197901

main04111-38031i197901-198008

main04111-38041i197901-198008

main04111-54022i198101-198105

main04111-54023i198105-198107

main04111-54024i198107-198108

main04111-54030i198108-198111

main04111-54031i198111-198201

main04111-54032i198201-198204

main04111-54033i198204-198306

main04111-54034i198306-198307

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-35011i198008-198208

main04112-35012i198208-198307

main04112-38014i197808-197901

main04112-38018i197901-198008

main04112-38031i197901-198008

main04112-38041i197901-198008

main04112-54011i198101-198107

main04112-54012i198107-198108

main04112-54020i198108-198111

main04112-54021i198111-198306

main04112-54022i198306-198307

2 parts on this diagram · 1 diagram in section
