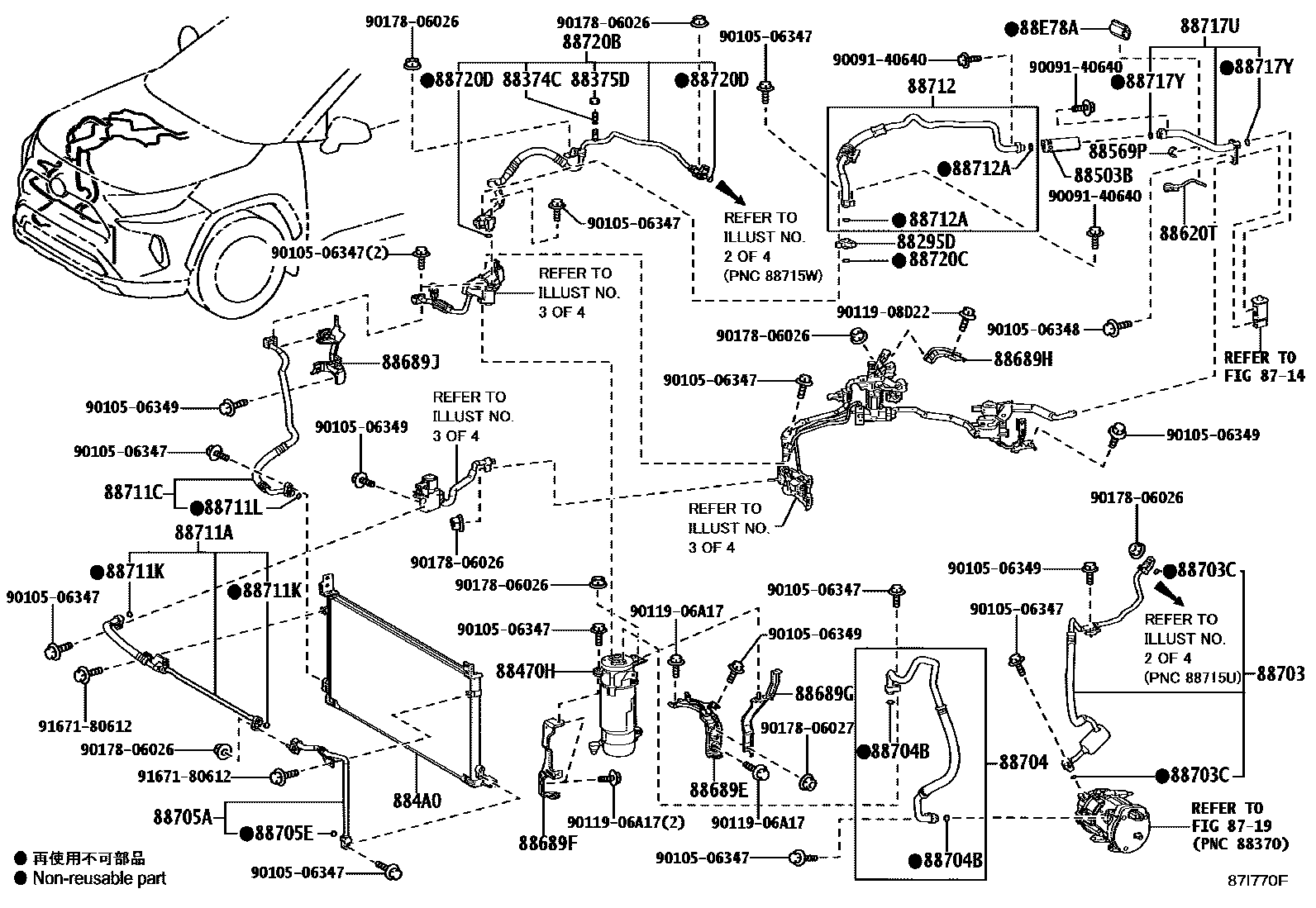

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88295DTUBE, VALVE TO CONNECTOR, NO.4

main88295-42040iAXAP54202006-202210

88374CVALVE, SERVICE, NO.2

main88374-74010iAXAP54202210-202310

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iAXAP54202210-202310

main88375-74010iAXAP54..XSE..USA202310

KOREA SPEC

88470HACCUMULATOR ASSY

main88470-42100iAXAP54202006-202210

884A0CONDENSER ASSY, COOLER

main884A0-42050iAXAP54202006-202210

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-42010iAXAP54202006-202210

main88503-42020iAXAP54202310

main88503-42030iAXAP54..XSE..USA202304-202310

KOREA SPEC

main88503-47010iAXAP54..XSE..USA202210-202304

KOREA SPEC

88569PCLAMP, COOLER, NO.4

main88569-47020iAXAP54202210-202310

88620TTHERMISTOR ASSY, AIR CONDITIONER NO.4

main88620-42080iAXAP54202006-202210

88689EBRACKET, COOLER, NO.1

main88688-42720iAXAP54202006-202210

88689FBRACKET, COOLER, NO.2

main88688-42730iAXAP54202006-202210

88689GBRACKET, COOLER, NO.3

main88688-42740iAXAP54202006-202210

88689HBRACKET, COOLER, NO.4

main88688-42750iAXAP54202006-202210

88689JBRACKET, COOLER, NO.5

main88688-42760iAXAP54202006-202210

88703HOSE SUB-ASSY, DISCHARGE

main88703-42260iAXAP54202006-202210

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iAXAP54202006-202210

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-42750iAXAP54202210-202310

88704BRING, O(FOR SUCTION HOSE)

main90099-14157×2iAXAP54202310

ID=13.4,OD=18.2

88705ATUBE SUB-ASSY, DISCHARGE

main88705-42140iAXAP54202006-202210

88705ERING, O, NO.1(FOR DISCHARGE TUBE)

main90099-14155iAXAP54202006-202210

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-42090iAXAP54202006-202210

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-42070iAXAP54202006-202210

88711CHOSE, COOLER REFRIGERANT DISCHARGE, NO.3

main88711-42080iAXAP54202006-202210

88711KRING, O, NO.2(FOR DISCHARGE HOSE)

main90099-14155×2iAXAP54202006-202210

88711LRING, O, NO.3(FOR DISCHARGE HOSE)

main90099-14155iAXAP54202006-202210

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-42200iAXAP54202006-202210

main88712-42220iAXAP54..XSE..USA202210-202310

KOREA SPEC

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14157×2iAXAP54202210-202310

ID=13.4,OD=18.2

88717UTUBE, SUCTION, NO.1

main88717-42180iAXAP54202006-202210

88717YRING, O, NO.1(FOR SUCTION TUBE)

main90099-14121×2iAXAP54202006-202210

ID=13.4,OD=18.2

88720BHOSE & ACCESSORY, AIR CONDITIONER

main88720-42040iAXAP54202310

main88720-42050iAXAP54..XSE..USA202310

KOREA SPEC

88720CRING, O, NO.1(HOSE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14157iAXAP54202006-202210

ID=13.4,OD=18.2

88720DRING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14155iAXAP54202006-202210

main90099-14157iAXAP54202210-202310

ID=13.4,OD=18.2

88E78PACKING, COOLER, NO.2

main88578-47070iAXAP54202006-202210

88E78APACKING, COOLER, NO.3

main88578-47060iAXAP54202006-202210

9009140640

main90091-40640

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

9011906A17

main90119-06A17

9011908D22

main90119-08D22

9017806026

main90178-06026

9017806027

main90178-06027

9167180612

main91671-80612
