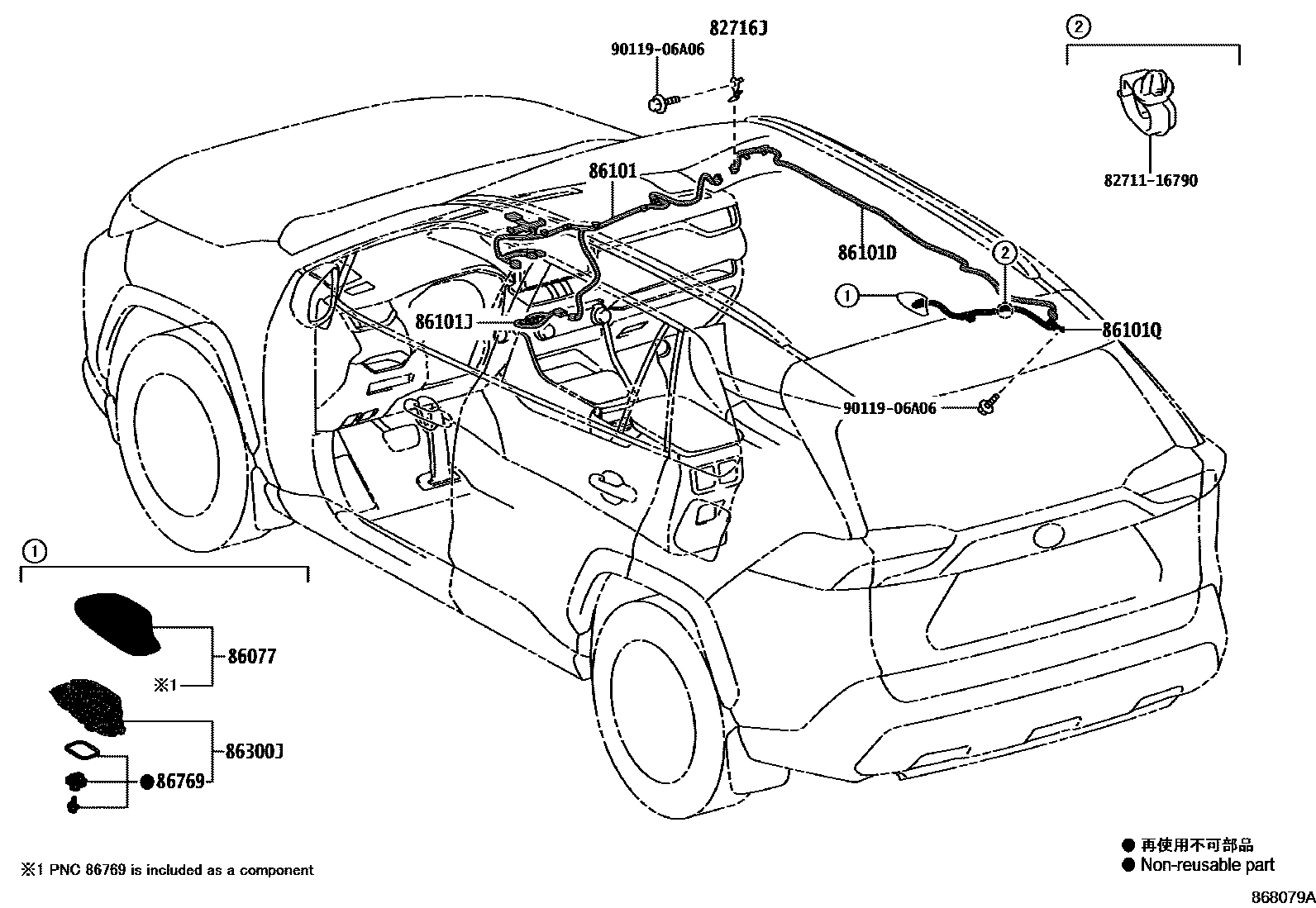

ANTENNA
82716JBRACKET, WIRING HARNESS CLAMP
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM,WHITE PEARL CS.,070; WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
main86077-12060-B3supersedes 86077-47010-B3iAXAP54..SE..CND; AXAP54..USA;AXAP54..XSE..CND202006-202210
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM,SILVER ME.,1D6; SILVER ME.,1D6
main86077-12060-B4supersedes 86077-47010-B1iAXAP54..SE..CND; AXAP54..USA;AXAP54..XSE..CND202006-202210
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM,GRAY ME.,1G3; GRAY ME.,1G3
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA),SUPER WHITE 2,040; SUPER WHITE 2,040
GRAY ME.,1G3; HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA),GRAY ME.,1G3
HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA),SILVER ME.,1D6; SILVER ME.,1D6
ATTITUDE BLACK MC.,218; HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA),ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5; HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA),EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8; HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA),DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM
HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T2 & XM; E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T2 & XM (USA)
KOREA SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER 8INCH DVD KOREA
86101DCORD SUB-ASSY, ANTENNA, NO.3
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM
HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)
86101JCORD SUB-ASSY, ANTENNA, NO.2
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM; HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T2 & XM; E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T2 & XM (USA)
KOREA SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER 8INCH DVD KOREA
86101QCORD SUB-ASSY, ANTENNA, NO.4
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM
HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)
KOREA SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER 8INCH DVD KOREA
86300JANTENNA ASSY, ROOF
E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM
HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)
KOREA SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER 8INCH DVD KOREA
86769HOUSING, ROOF ANTENNA
HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906A06
main90119-06A06
10 parts on this diagram · 1 diagram in section
