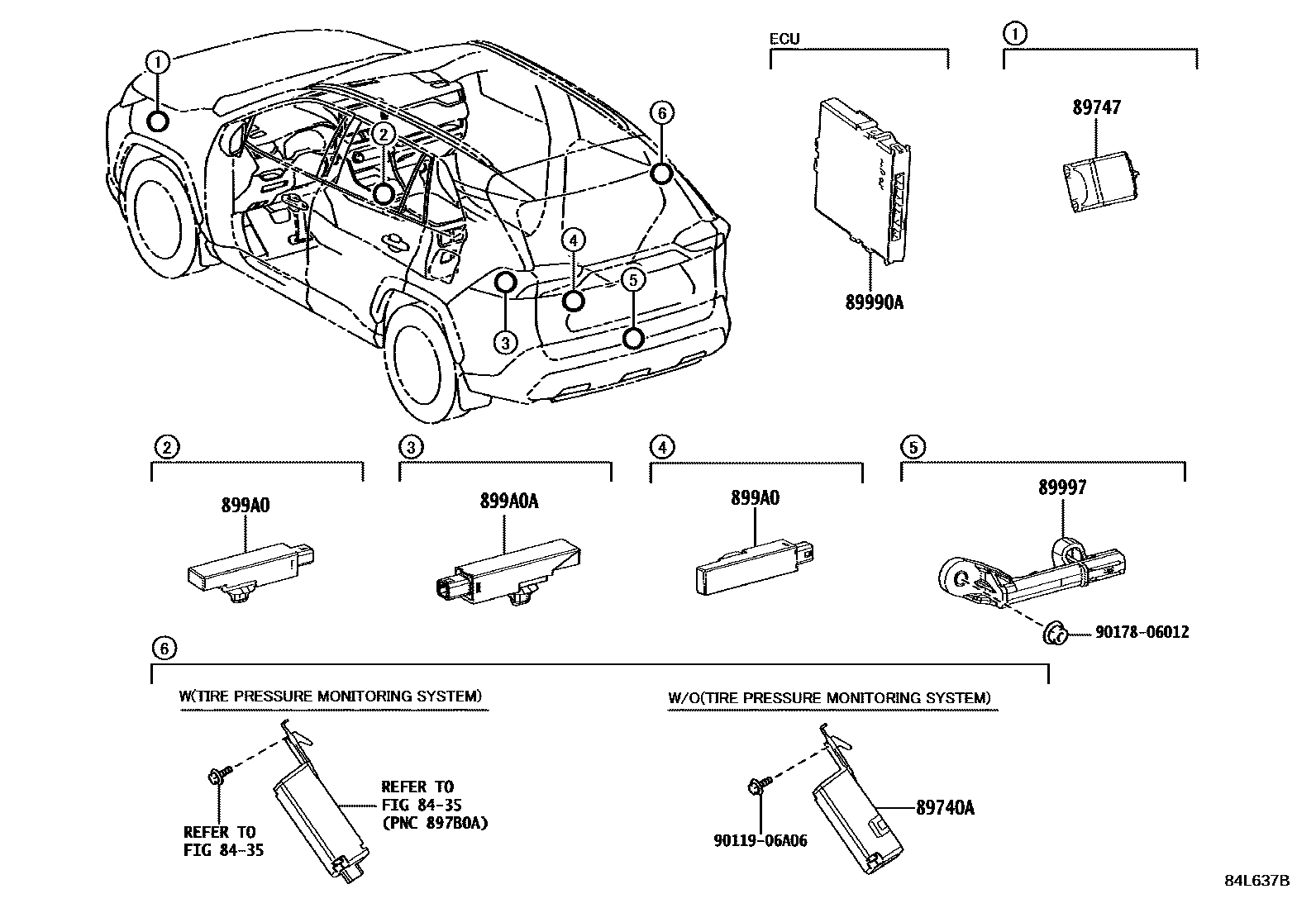

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-42090iAXAP54..CND202006-202210

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAXAP54202006-202210

89990ACOMPUTER ASSY, SMART KEY

main899H0-42190iAXAP54202006-202210

main899H0-42330iAXAP54202210-202310

main899H0-42421iAXAP54202310-202501

main899H0-42480iAXAP54202501

main899H0-42200iAXAP54..XSE202006-202210

PHV PREMIUM PACKAGE(PANORAMIC *MR)

main899H0-42340iAXAP54..XSE202210-202310

PHV PREMIUM PACKAGE(PANORAMIC *MR)

main899H0-42490iAXAP54..XSE202501

PHV PREMIUM PACKAGE(PANORAMIC *MR)

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAXAP54202006-202210

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130×2iAXAP54202006-202210

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-42030iAXAP54202006-202210

9011906A06

main90119-06A06

9017806012

main90178-06012

9 parts on this diagram · 1 diagram in section
