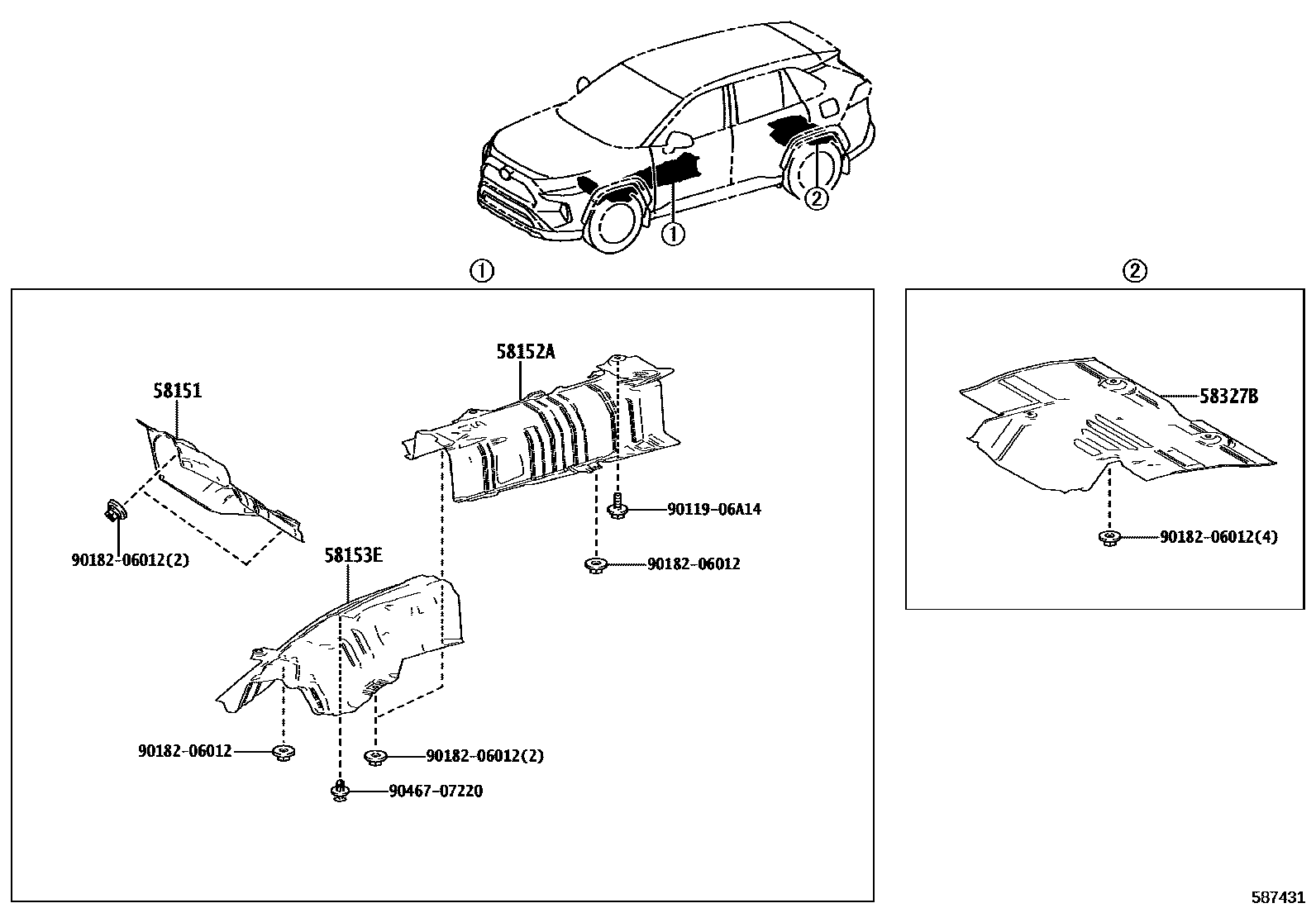

Toyota RAV4 PHEV — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

58151-42070

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

58327BINSULATOR, MAIN MUFFLER HEAT

9011906A14

90119-06A14

9018206012

90182-06012

9046707220

90467-07220

7 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota RAV4 PHEV

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota RAV4 PHEV. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, MAIN MUFFLER HEAT.
