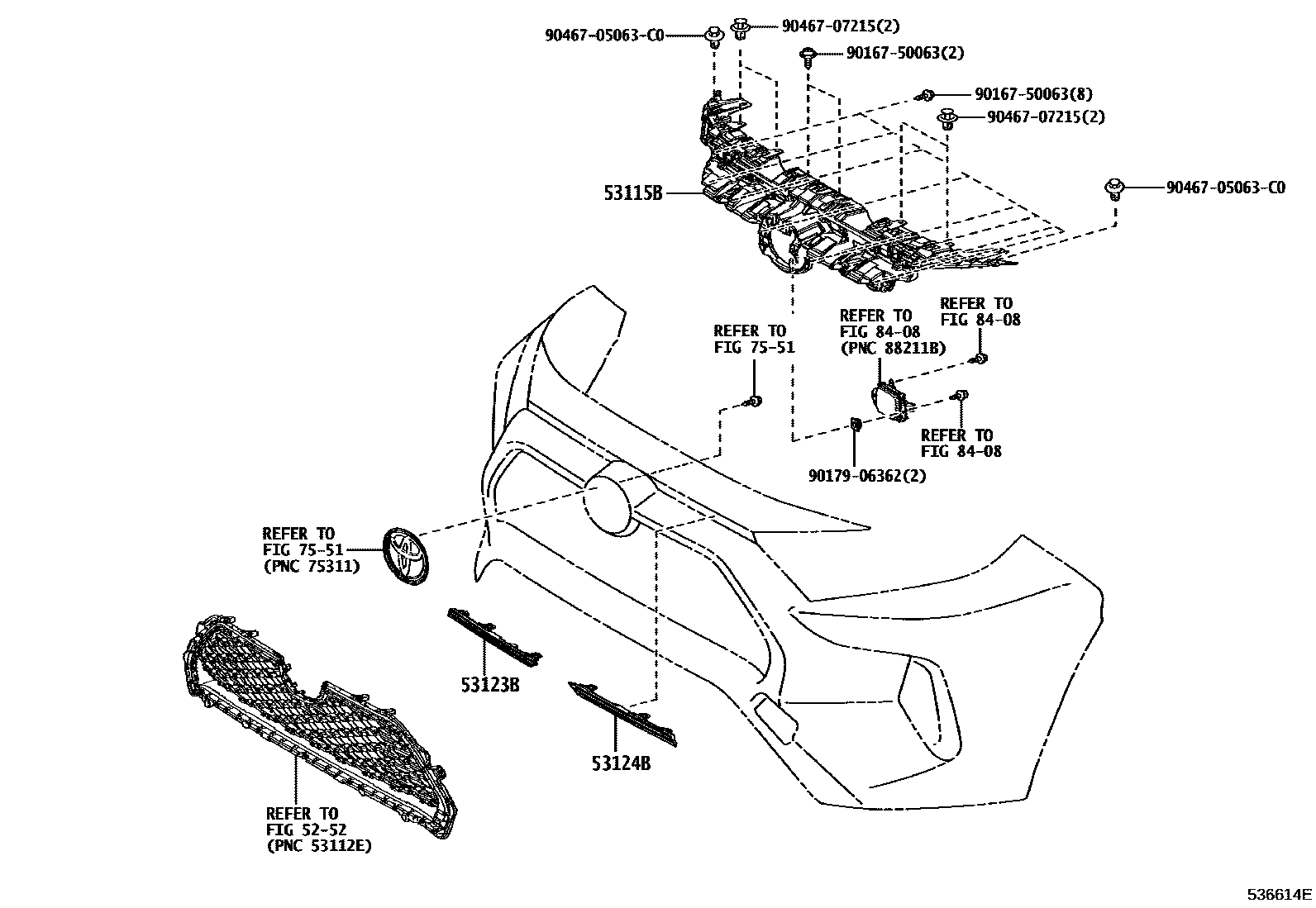

RADIATOR GRILLE

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53115BBRACKET, RADIATOR GRILLE

main53115-42010iAXAP54202006-202210

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-42020iAXAP54202006-202210

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-42060iAXAP54202006-202210

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9016750063

main90167-50063

9017906362

main90179-06362

9046705063C0

main90467-05063C0

9046707215

main90467-07215

10 parts on this diagram · 1 diagram in section
