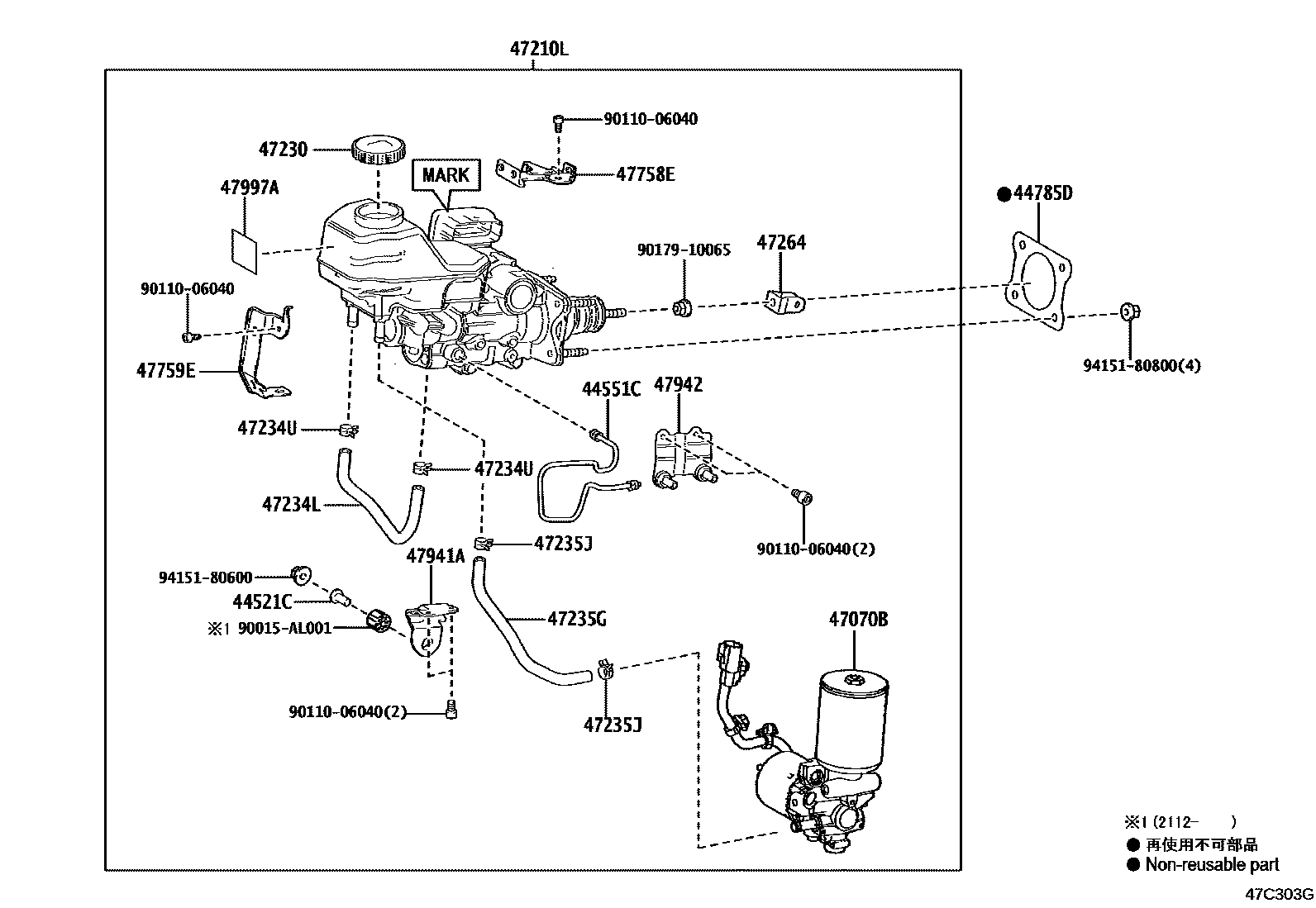

BRAKE MASTER CYLINDER

44521CCOLLAR, BRAKE ACTUATOR CASE

main44521-47010iAXAP54202006-202210

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-48080iAXAP54202006-202210

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iAXAP54202006-202210

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-48100iAXAP54202006-202210

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-42240iAXAP54202006-202112

*614,MARK47200-42D90

main47050-42241iAXAP54202112-202210

*614,MARK47200-42D91

main47050-42400iAXAP54202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAXAP54202006-202210

47234LHOSE, RESERVOIR, NO.1

main47234-42040iAXAP54202006-202210

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501×2iAXAP54202006-202210

47235GHOSE, RESERVOIR, NO.2

main47235-42040iAXAP54202006-202210

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501×2iAXAP54202006-202210

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iAXAP54202006-202210

47758EBRACKET, WIRE CLAMP, NO.1

main47758-42010iAXAP54202006-202210

47759EBRACKET, WIRE CLAMP, NO.2

main47759-42020iAXAP54202006-202210

47941ABRACKET, BRAKE POWER SUPPLY, NO.1

main47941-48010iAXAP54202006-202210

47942BRACKET, BRAKE POWER SUPPLY, NO.2

main47942-48010iAXAP54202006-202210

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXAP54202006-202210

90015AL001

main90015-AL001

9011006040

main90110-06040

9017910065

main90179-10065

9415180600

main94151-80600

9415180800

main94151-80800

21 parts on this diagram · 1 diagram in section
