ANTENNA
86077COVER KIT, ANTENNA
main86077-12060-A0supersedes 86077-47010-A0iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..V;AXAA5#,AXAH54,AXAL54..(M,X)..USA202005-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM,SUPER WHITE 2,040; AUDIO-JBL & 8INCH DISPLAY & AVN,SUPER WHITE 2,040; SUPER WHITE 2,040
main86077-12060-A1supersedes 86077-47010-A1iAXAA54,AXAH54..(M,S)..CND; AXAA54..G;AXAA54..M..USA;AXAH54..G..CND;AXAA52,AXAH54,AXAL54..(G,M,S)..USA202009-202211
AUDIO-6PEAKER & 8INCH DISPLAY & XM,WHITE PEARL CS.,070; WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
main86077-12060-B3supersedes 86077-47010-B3iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54,AXAH54..G..CND;AXAA5#,AXAH54,AXAL54..(G,M,X)..USA202005-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM,SILVER ME.,1D6; AUDIO-JBL & 8INCH DISPLAY & AVN,SILVER ME.,1D6; SILVER ME.,1D6
main86077-12060-B4supersedes 86077-47010-B1iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA202005-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM,GRAY ME.,1G3; AUDIO-JBL & 8INCH DISPLAY & AVN,GRAY ME.,1G3; GRAY ME.,1G3
ASH GRAY ME.,2QU ,2QV ,2QW ,2QX
main86077-12060-C2supersedes 86077-47010-C0iAXAA5#..M..CND; AXAA52..USA;AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAH54,AXAL54..(G,X)..USA; AXAH54,AXAL54..M..USA; AXAH54..M..CND; AXAH54..X..CND;AXAA5#..(M,X)..CND202005-202009
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; AUDIO-6PEAKER & 8INCH DISPLAY & XM,ATTITUDE BLACK MC.,218; AUDIO-6PEAKER & 8INCH DISPLAY & XM,ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; AUDIO-JBL & 8INCH DISPLAY & AVN,ATTITUDE BLACK MC.,218; AUDIO-JBL & 8INCH DISPLAY & AVN,ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA
main86077-12060-D2supersedes 86077-47010-D1iAXAA5#,AXAH54..M..CND; AXAA5#,AXAH54..X..CND; AXAA54..V..CND202009-202112
AUDIO-6PEAKER & 8INCH DISPLAY & XM,RED MC.,3T3; AUDIO-JBL & 8INCH DISPLAY & AVN,RED MC.,3T3; RED MC.,3T3
main86077-12060-G1supersedes 86077-47010-G3iAXAA5#,AXAH54,AXAL54..(M,V)..USA; AXAA54,AXAH54..M..CND202009-202211
AUDIO-6PEAKER & 8INCH DISPLAY & XM,URBAN KHAKI,6X3; URBAN KHAKI,6X3
DK.GREEN,6V7
main86077-12060-J1supersedes 86077-47010-J4iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..V;AXAA5#,AXAH54,AXAL54..(M,X)..USA202005-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM,CYAN METALLIC,8W9; AUDIO-JBL & 8INCH DISPLAY & AVN,CYAN METALLIC,8W9; CYAN METALLIC,8W9
DK. BLUE MC.,8X8
GRAYISH BLUE,8W2
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
RED MC.,3T3
main86077-47020-A0iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..V;AXAA5#,AXAH54..(M,X)..USA201812-202005
AUDIO-6PEAKER & 8INCH DISPLAY & XM,SUPER WHITE 2,040; AUDIO-JBL & 8INCH DISPLAY & AVN,SUPER WHITE 2,040; SUPER WHITE 2,040
WHITE PEARL CS.,070
main86077-47020-B1iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA201812-202005
AUDIO-6PEAKER & 8INCH DISPLAY & XM,GRAY ME.,1G3; AUDIO-JBL & 8INCH DISPLAY & AVN,GRAY ME.,1G3; GRAY ME.,1G3
main86077-47020-B2iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54,AXAH54..G..CND;AXAA5#,AXAH54..(G,M,X)..USA201812-202005
AUDIO-6PEAKER & 8INCH DISPLAY & XM,SILVER ME.,1D6; AUDIO-JBL & 8INCH DISPLAY & AVN,SILVER ME.,1D6; SILVER ME.,1D6
ASH GRAY ME.,2QU ,2QV ,2QW ,2QX
ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; AUDIO-6PEAKER & 8INCH DISPLAY & XM,ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; AUDIO-JBL & 8INCH DISPLAY & AVN,ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA
main86077-47020-D2iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA201812-202005
AUDIO-6PEAKER & 8INCH DISPLAY & XM,RED MC.,3T3; AUDIO-JBL & 8INCH DISPLAY & AVN,RED MC.,3T3; RED MC.,3T3
AUDIO-6PEAKER & 8INCH DISPLAY & XM,URBAN KHAKI,6X3; AUDIO-JBL & 8INCH DISPLAY & AVN,URBAN KHAKI,6X3; URBAN KHAKI,6X3
main86077-47020-J3iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..V;AXAA5#,AXAH54..(M,X)..USA201812-202005
AUDIO-6PEAKER & 8INCH DISPLAY & XM,CYAN METALLIC,8W9; AUDIO-JBL & 8INCH DISPLAY & AVN,CYAN METALLIC,8W9; CYAN METALLIC,8W9
main86077-47020-J4iAXAA5#,AXAH54..M..CND; AXAA54,AXAH54..G;AXAA52..(G,M)..USA;AXAA54,AXAH54..M..USA201812-202005
AUDIO-6PEAKER & 8INCH DISPLAY & XM,DK. BLUE MC.,8X8; AUDIO-JBL & 8INCH DISPLAY & AVN,DK. BLUE MC.,8X8; DK. BLUE MC.,8X8
MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY & AVN,WHITE PEARL CS.,070; MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY,WHITE PEARL CS.,070; MEXICO SPEC&AUDIO-JBL & 8INCH DISPLAY & AVN,WHITE PEARL CS.,070
ASH GRAY ME.,2QU ,2QW ,2TU; MEXICO SPEC&AUDIO-6PEAKER & 9INCH DISPLAY & XM,ASH GRAY ME.,2QU ,2QW; MEXICO SPEC&AUDIO-JBL & 9INCH DISPLAY & AVN,ASH GRAY ME.,2QU ,2QW; PUERTO RICO SPEC&AUDIO-6PEAKER & 7INCH DISPLAY,ASH GRAY ME.,2QU ,2QW
MEXICO SPEC&AUDIO-6PEAKER & 9INCH DISPLAY & XM,URBAN KHAKI,6X3; MEXICO SPEC&AUDIO-JBL & 9INCH DISPLAY & AVN,URBAN KHAKI,6X3; PUERTO RICO SPEC&AUDIO-6PEAKER & 7INCH DISPLAY,URBAN KHAKI,6X3; URBAN KHAKI,6X3
MEXICO SPEC&AUDIO-6PEAKER & 7INCH DISPLAY,CYAN METALLIC,8W9; MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY,CYAN METALLIC,8W9; MEXICO SPEC&AUDIO-JBL & 8INCH DISPLAY & AVN,CYAN METALLIC,8W9
MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY & AVN,DK. BLUE MC.,8X8; MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY,DK. BLUE MC.,8X8; MEXICO SPEC&AUDIO-JBL & 8INCH DISPLAY & AVN,DK. BLUE MC.,8X8
GRAYISH BLUE,8W2; MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY,GRAYISH BLUE,8W2; MEXICO SPEC&AUDIO-6PEAKER & 9INCH DISPLAY & XM,GRAYISH BLUE,8W2; MEXICO SPEC&AUDIO-JBL & 9INCH DISPLAY & AVN,GRAYISH BLUE,8W2; PUERTO RICO SPEC&AUDIO-6PEAKER & 7INCH DISPLAY,GRAYISH BLUE,8W2
86101CORD SUB-ASSY, ANTENNA
main86101-0R490supersedes 86101-0R560iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..(M,X)..USA; AXAA5#,AXAH54..G,V; AXAA5#,AXAH54..M..USA201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY
main86101-0R670supersedes 86101-0R480iAXAA54,AXAH54..(M,S)..CND; AXAH54..P..CND;AXAA5#,AXAH54,AXAL54..USA202009-202211
AUDIO-6PEAKER & 8INCH DISPLAY & XM
main86101-0R680iAXAA5#,AXAH54,AXAL54..(G,P)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..CND; AXAA54..V..USA202112-202211
AUDIO-JBL & 9INCH DISPLAY & AVN; TRD OFFROAD PACKAGE&AUDIO-JBL & 9INCH DISPLAY & AVN
main86101-0R530iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#,AXAH54..(G,V)..USA; AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA; AXAA54,AXAH54..(G,V)..CND201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN
MEXICO SPEC; MEXICO SPEC&AUDIO-6PEAKER & 9INCH DISPLAY & XM
MEXICO SPEC
MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY & AVN; MEXICO SPEC&AUDIO-JBL & 8INCH DISPLAY & AVN
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-0R470supersedes 86101-0R460iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA201812-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY & AVN
MEXICO SPEC
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-0R370supersedes 86101-0R440iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA201910-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY & AVN
main86101-0R450supersedes 86101-0R540iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..(M,X)..USA; AXAA5#,AXAH54..G,V; AXAA5#,AXAH54..M..CND; AXAA5#,AXAH54..M..USA201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY; AUDIO-JBL & 8INCH DISPLAY & AVN
MEXICO SPEC
MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY & AVN; MEXICO SPEC&AUDIO-JBL & 8INCH DISPLAY & AVN
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-0R500iAXAA5#,AXAH54..(G,V)..USA; AXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..(M,X)..USA; AXAA5#,AXAH54..G,V; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT; PUERTO RICO SPEC
main86101-0R700iAXAA5#,AXAH54..(G,V)..USA; AXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..(M,X)..USA; AXAA5#,AXAH54..G,V; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA201910-202009
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT; PUERTO RICO SPEC
main86101-0R710iAXAA5#,AXAH54,AXAL54..(G,P)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..CND; AXAA54..V..USA202112-202211
AUDIO-JBL & 9INCH DISPLAY & AVN; TRD OFFROAD PACKAGE&AUDIO-JBL & 9INCH DISPLAY & AVN
main86101-0R510iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#,AXAH54..(G,V)..USA; AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA; AXAA54,AXAH54..(G,V)..CND201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN
MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY & AVN; MEXICO SPEC&AUDIO-JBL & 8INCH DISPLAY & AVN
86300JANTENNA ASSY, ROOF
main86760-04010supersedes 86300-0R090iAXAA5#,AXAH54..M..CND; AXAA5#,AXAH54..X..CND; AXAA54..V..CND202009-202112
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY & AVN
main86760-0R030iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY & AVN
86769HOUSING, ROOF ANTENNA
main86769-04010supersedes 86769-0R010iAXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA201910-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY & AVN
main86769-0R010iAXAA52..(M,X)..USA; AXAA52..X..CND;AXAA54,AXAH54..(M,S,X)..CND; AXAA54..V..USA202009-202211
MEXICO SPEC&AUDIO-6PEAKER & 7INCH DISPLAY; MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271542N00BRACKET,WIRING HARNESS CLAMP
main82715-42N00
90119A0255
main90119-A0255

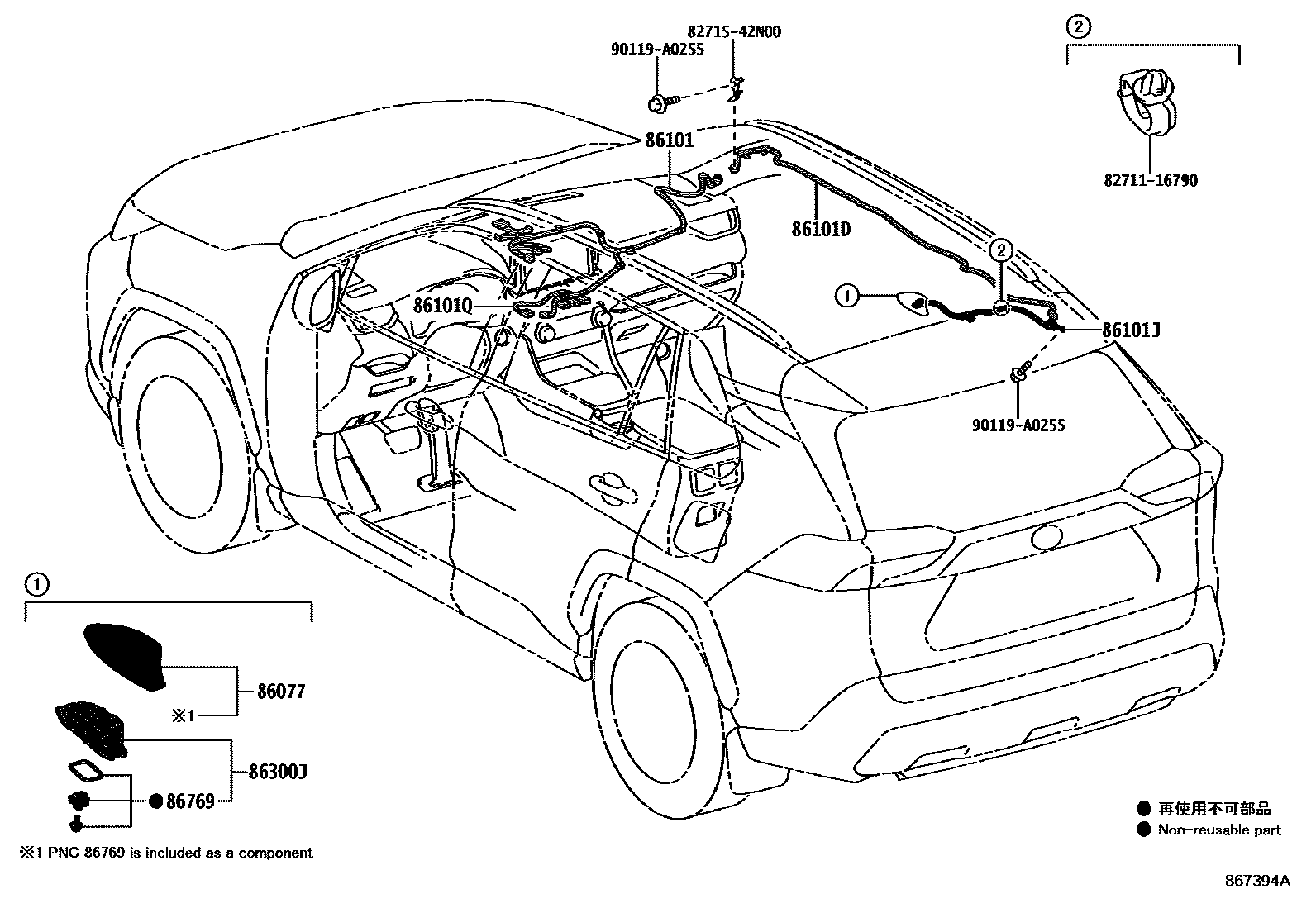

10 parts on this diagram · 1 diagram in section
