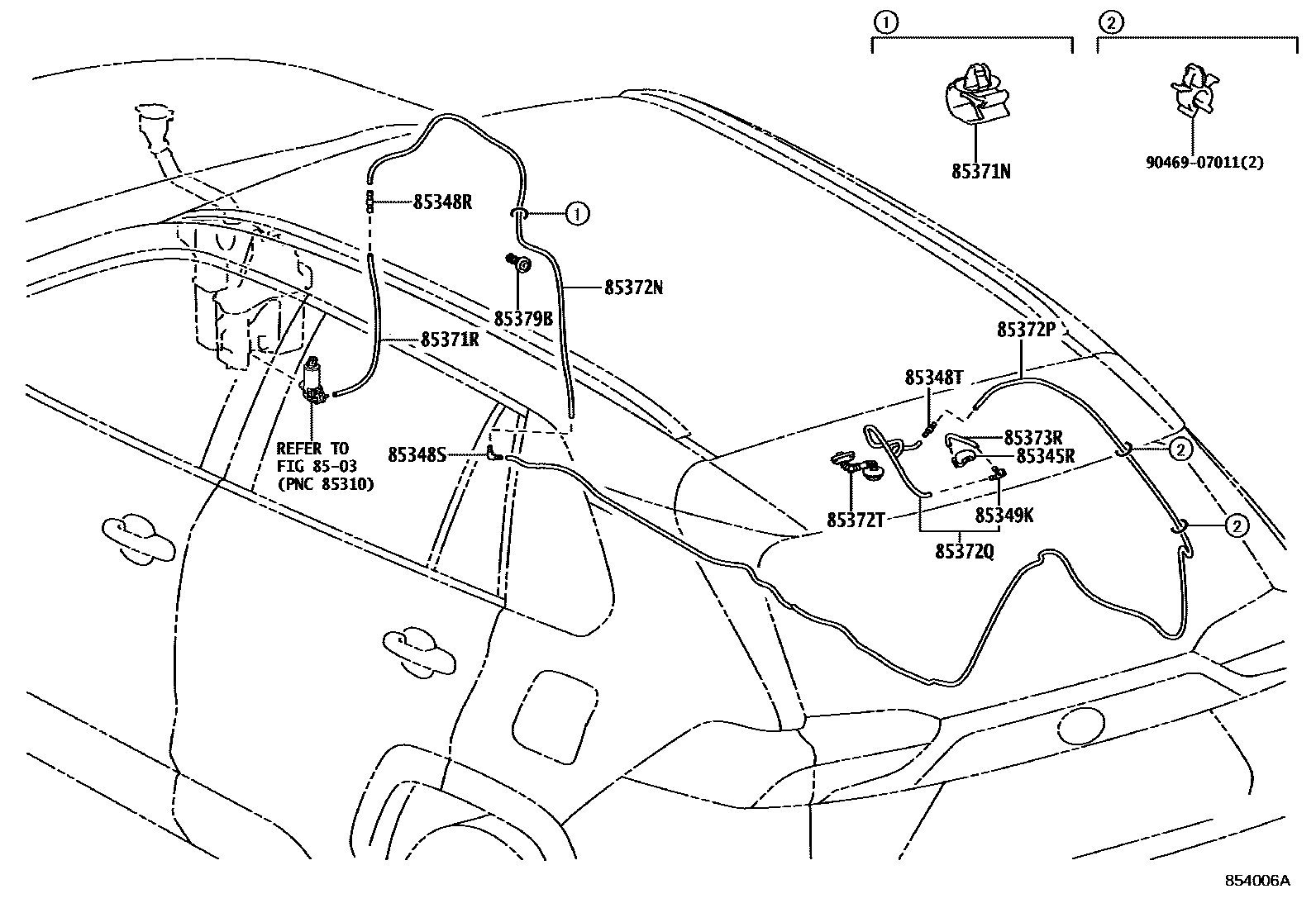

REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=400
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1390
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3900
L=3900
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=480
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=125
85379BGROMMET, WASHER, A
9046907011
main90469-07011
15 parts on this diagram · 1 diagram in section
