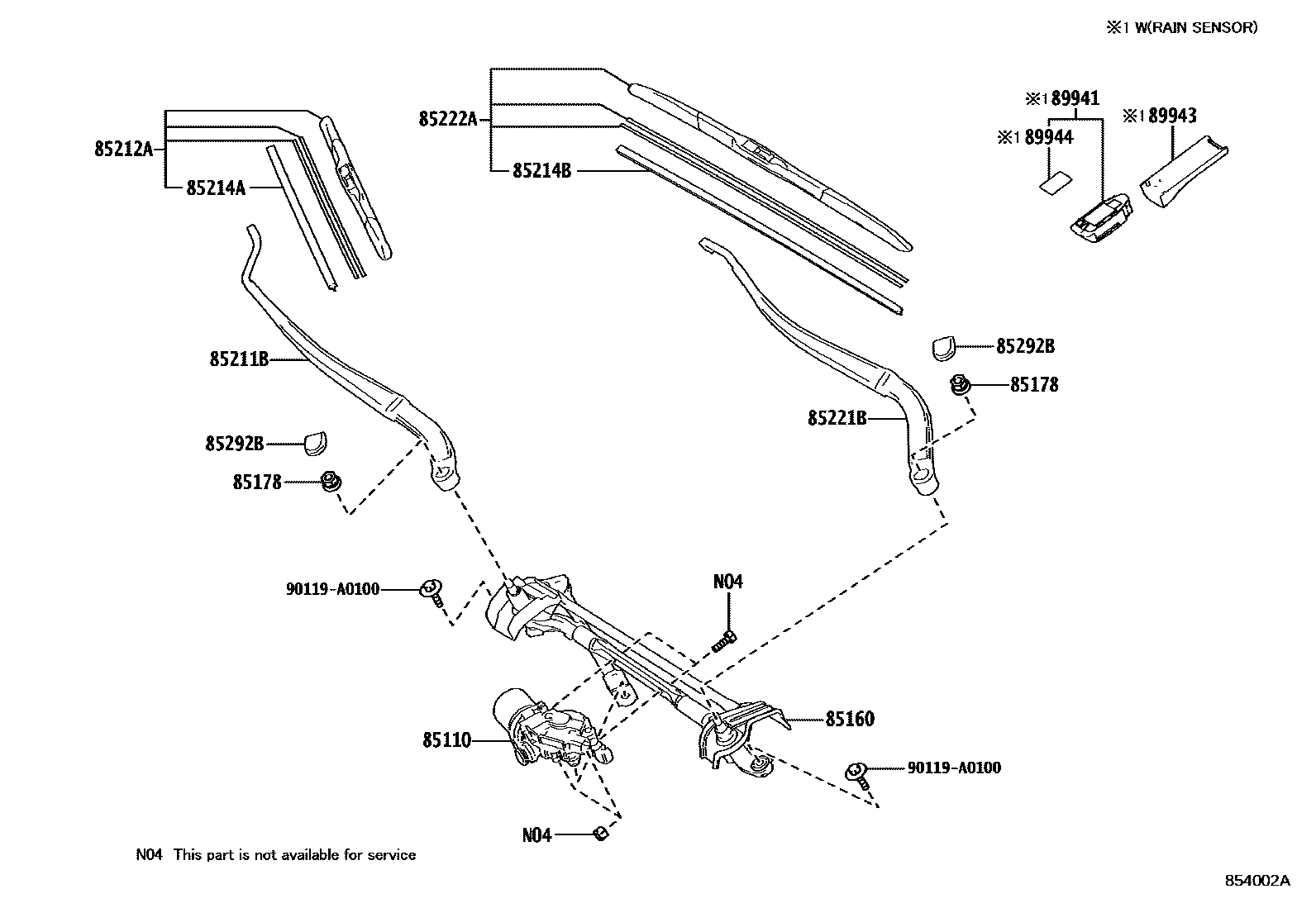

WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
main89941-42020iAXAA5#,AXAH54,AXAL54..(G,M,V)..USA; AXAA5#,AXAH54,AXAL54..G..USA; AXAA5#,AXAH54..M..CND; AXAA54,AXAH54..(G,V)..CND201812-202009
*COS,W(STEERING HEATER&REAR SEAT HEATER); COLD AREA SPEC,W(STEERING HEATER); WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST
89943COVER, RAIN SENSOR
main89943-42040iAXAA5#,AXAH54,AXAL54..(G,M,V)..USA; AXAA5#,AXAH54,AXAL54..G..USA; AXAA5#,AXAH54..M..CND; AXAA54,AXAH54..(G,V)..CND201812-202009
*COS,W(STEERING HEATER&REAR SEAT HEATER); COLD AREA SPEC,W(STEERING HEATER); WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST
89944TAPE, RAIN SENSOR
main89944-42020iAXAA5#,AXAH54,AXAL54..(G,M,V)..USA; AXAA5#,AXAH54,AXAL54..G..USA; AXAA5#,AXAH54..M..CND; AXAA54,AXAH54..(G,V)..CND201812-202009
*COS,W(STEERING HEATER&REAR SEAT HEATER); COLD AREA SPEC,W(STEERING HEATER); WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST
90119A0100
main90119-A0100
14 parts on this diagram · 1 diagram in section
