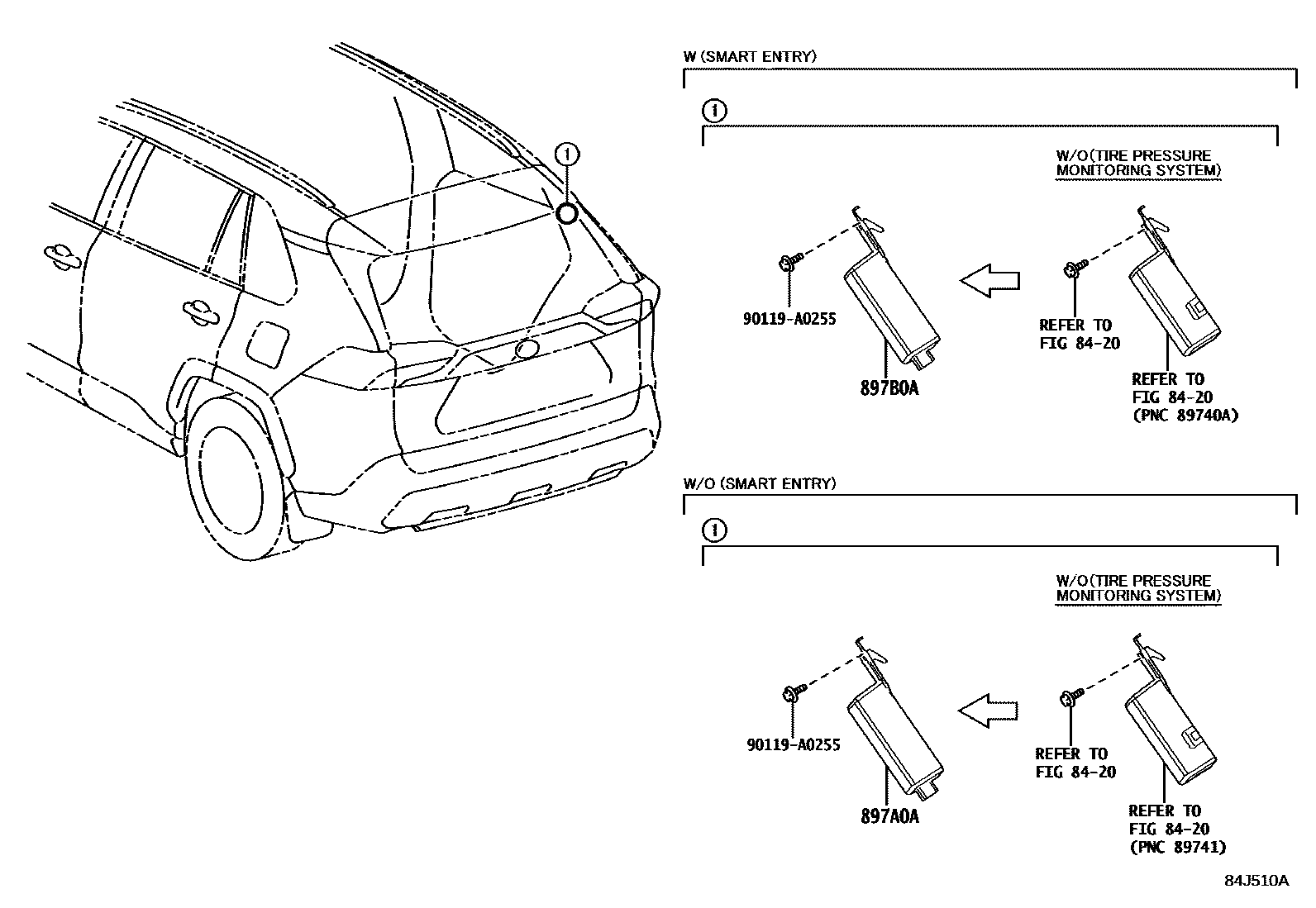

TIRE PRESSURE WARNING SYSTEM

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

897A0ARECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897A0-0R041iAXAA5#,AXAH54,AXAL54..X..USA202112-202211

main897A0-0R040iAXAA5#,AXAH54..X..CND201812-202009

TIRE INFLATION PRESSURE WARNING- WITH(315MHZ),AUTO LOCATION

main897A0-0R050supersedes 897A0-42180iAXAA5#,AXAH54,AXAL54..X..USA201812-202009

KEY PLATE-FOR SMART ENTRY&AUDIO-6PEAKER & 8INCH DISPLAY & XM

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-0R040iAXAA5#,AXAH54,AXAL54..(G,M,V)..USA; AXAA5#,AXAH54,AXAL54..X..USA201812-202009

KEY PLATE-FOR SMART ENTRY&AUDIO-6PEAKER & 8INCH DISPLAY & XM

main897B0-0R050supersedes 897B0-0R040iAXAA5#,AXAH54,AXAL54..(G,M,P,S,V)..USA202212-202305

main897B0-0R120iAXAA5#,AXAH54,AXAL54..(G,M,P,S,V)..USA202211-202212

90119A0255

main90119-A0255

4 parts on this diagram · 1 diagram in section
