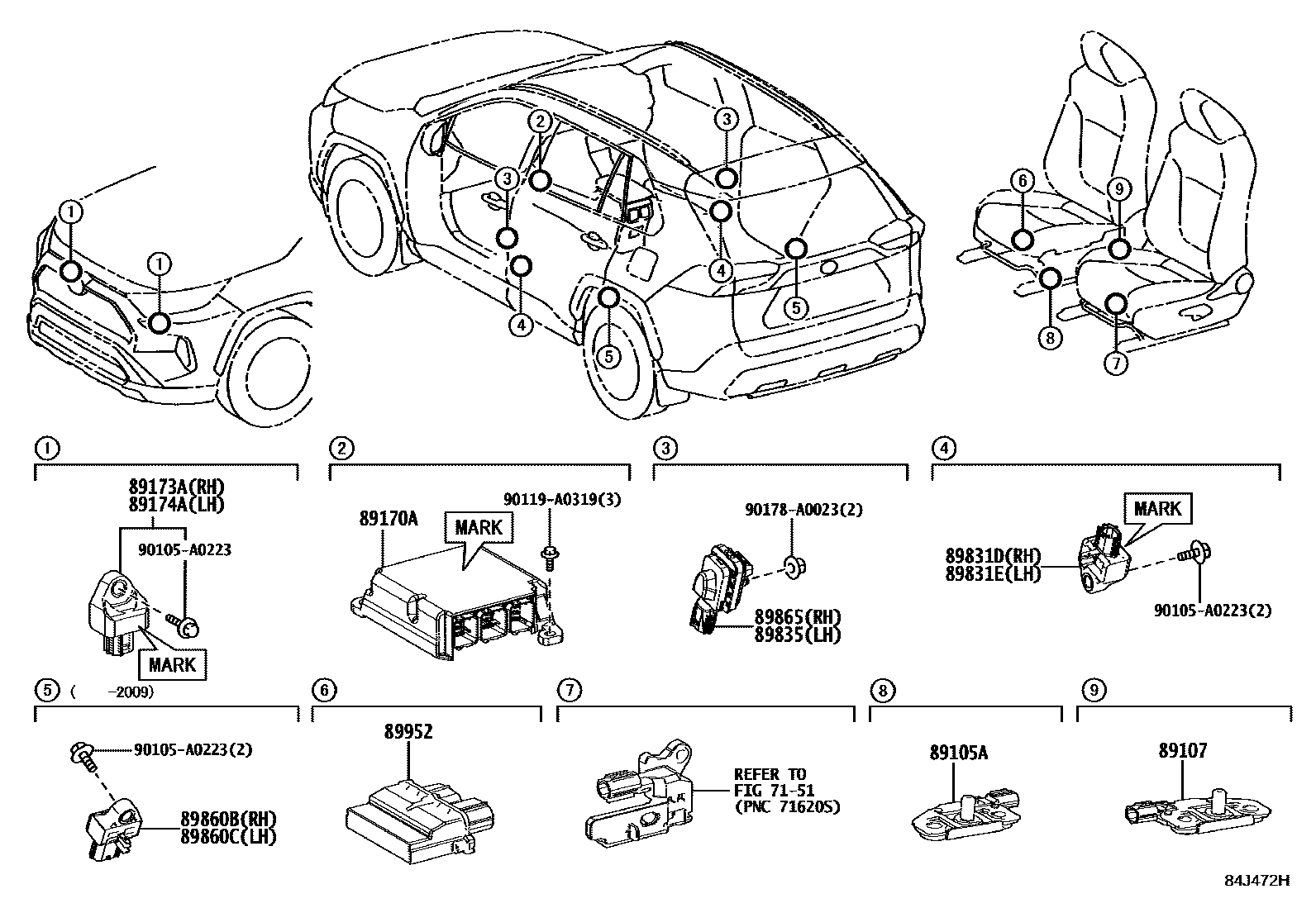

AIR BAG

7151SEAT & SEAT TRACK

→ Go to FIG 71-51

89105ASENSOR SUB-ASSY, WEIGHT DETECTOR, FRONT INNER

main89105-0E040iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

89107SENSOR SUB-ASSY, WEIGHT DETECTOR, REAR INNER

main89107-0E040iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

89170ACOMPUTER ASSY, AIRBAG

main89170-0R220iAXAA5#201812-202009

main89170-0R230iAXAH54,AXAL54201903-202009

main89170-0R350iAXAA5#202009-202202

P/N LABEL=891700R350

main89170-0R351iAXAA5#202202

P/N LABEL=891700R351

main89170-0R360iAXAH54,AXAL54202009-202202

P/N LABEL=891700R360

main89170-0R361iAXAH54,AXAL54202202-202211

P/N LABEL=891700R361

89173ASENSOR, AIRBAG, FRONT RH

main89173-09894iAXAA5#,AXAH54,AXAL54202202

P/N LABEL=891730R060

main89173-09D40iAXAA5#,AXAH54,AXAL54202009-202202

P/N LABEL=891730E060

89174ASENSOR, AIRBAG, FRONT LH

main89173-09894iAXAA5#,AXAH54,AXAL54201812-202009

main89173-09D40iAXAA5#,AXAH54,AXAL54202009-202202

P/N LABEL=891730E060

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-06110iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

main89831-0E170iAXAA5#,AXAH54,AXAL54202009-202202

P/N LABEL=898310E170

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-06110iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

main89831-0E170iAXAA5#,AXAH54,AXAL54202009-202202

P/N LABEL=898310E170

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-06010iAXAL54201812-202009

main8983A-0E020iAXAA5#,AXAH54,AXAL54202009-202010

main8983A-0E021iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0E130iAXAA5#,AXAH54,AXAL54201812-202009

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0E130iAXAA5#,AXAH54,AXAL54201812-202009

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-06010iAXAA5#,AXAH54201812-202007

main8983A-0E020iAXAA5#,AXAH54,AXAL54202009-202010

main8983A-0E021iAXAA52..M..CND202010

89952COMPUTER, OCCUPANT DETECTION

main89952-0R030iAXAA5#,AXAH54,AXAL54201812-202009

main89952-0R040iAXAA5#,AXAH54,AXAL54..G202112-202211

90105A0223

main90105-A0223

90119A0319

main90119-A0319

90178A0023

main90178-A0023

16 parts on this diagram · 1 diagram in section
