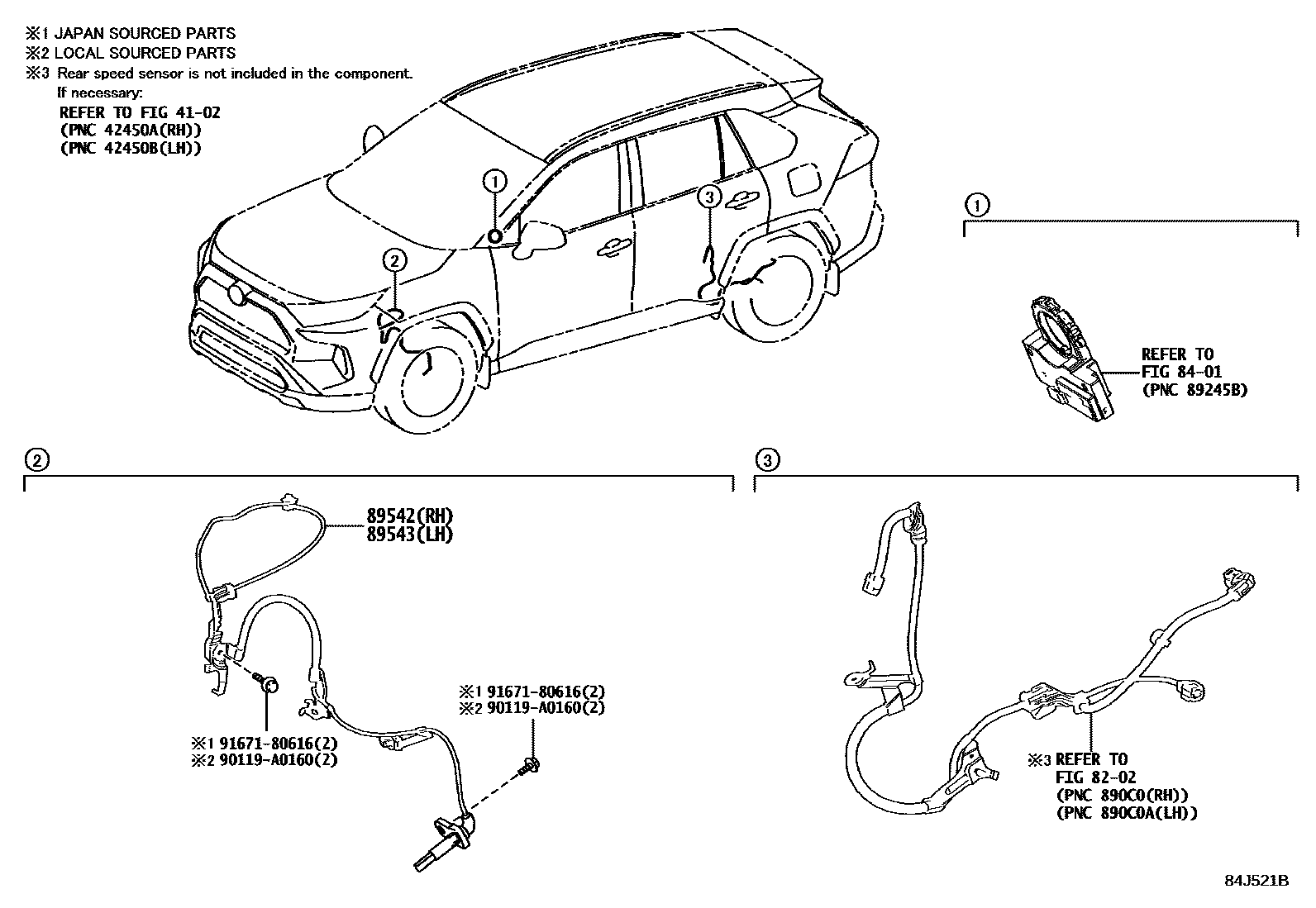

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89542SENSOR, SPEED, FRONT RH

main89542-0R040iAXAA5#,AXAH54,AXAL54201812-202009

89543SENSOR, SPEED, FRONT LH

main89543-0R040iAXAA5#,AXAH54,AXAL54201812-202009

90119A0160

main90119-A0160

9167180616

main91671-80616

7 parts on this diagram · 2 diagrams in section
