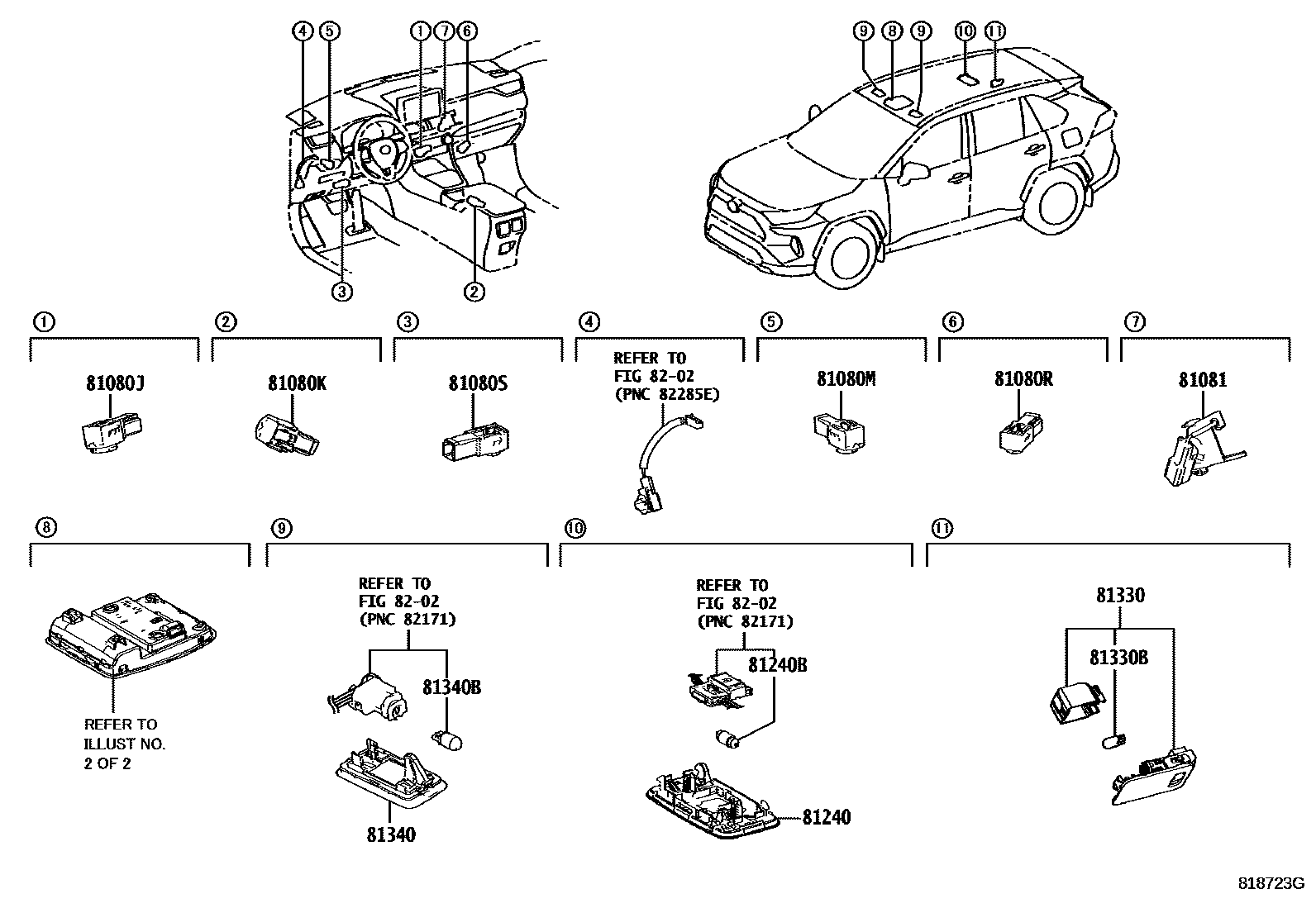

INTERIOR LAMP

0001 1 0002 1 0003 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040iAXAA5#,AXAH54,AXAL54..G201812-202009

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-42040iAXAA5#,AXAH54,AXAL54..G,V201812-202009

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040iAXAA5#,AXAH54,AXAL54..G201812-202009

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33280iAXAA5#,AXAH54,AXAL54..G,P,V202211

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33280iAXAA5#,AXAH54,AXAL54..G,P,V202211

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-42030iAXAA5#,AXAH54,AXAL54..G201812-202009

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iAXAA54..V; AXAH54..M201903-201909

LT.GRAY,TRIM1#,20,4#; LT.GRAY,TRIM20,41

main81240-35020-C1iAXAA54..V; AXAH54..M201903-201909

BLACK,TRIM20; BLACK,TRIM20,41

main81240-48040-B0iAXAA5#,AXAH54,AXAL54..V,X; AXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M202211

LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#

main81240-48040-C1iAXAH54,AXAL54..P,S202211

BLACK,TRIM2#

main81360-42021-B0iAXAA5#,AXAH54,AXAL54..V,X; AXAA5#..G,M;AXAH54,AXAL54..G; AXAH54,AXAL54..M202009-202112

LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM1#,20,4#; LT.GRAY,TRIM2#,4#

main81360-42021-C0iAXAH54,AXAL54..M201909-202009

BLACK,TRIM20

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAXAA5#,AXAH54,AXAL54201812-202009

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0E010iAXAA5#,AXAH54,AXAL54202009-202112

main81360-78020iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAXAA5#,AXAH54,AXAL54202009-202112

12V 5W

81340LAMP ASSY, VANITY

main81340-06030×2iAXAA5#,AXAH54,AXAL54201812-202009

(L)

main81340-30110×2iAXAA5#,AXAH54,AXAL54202009-202112

(J)

main81340-33170×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iAXAA5#,AXAH54,AXAL54202009-202112

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

13 parts on this diagram · 3 diagrams in section
