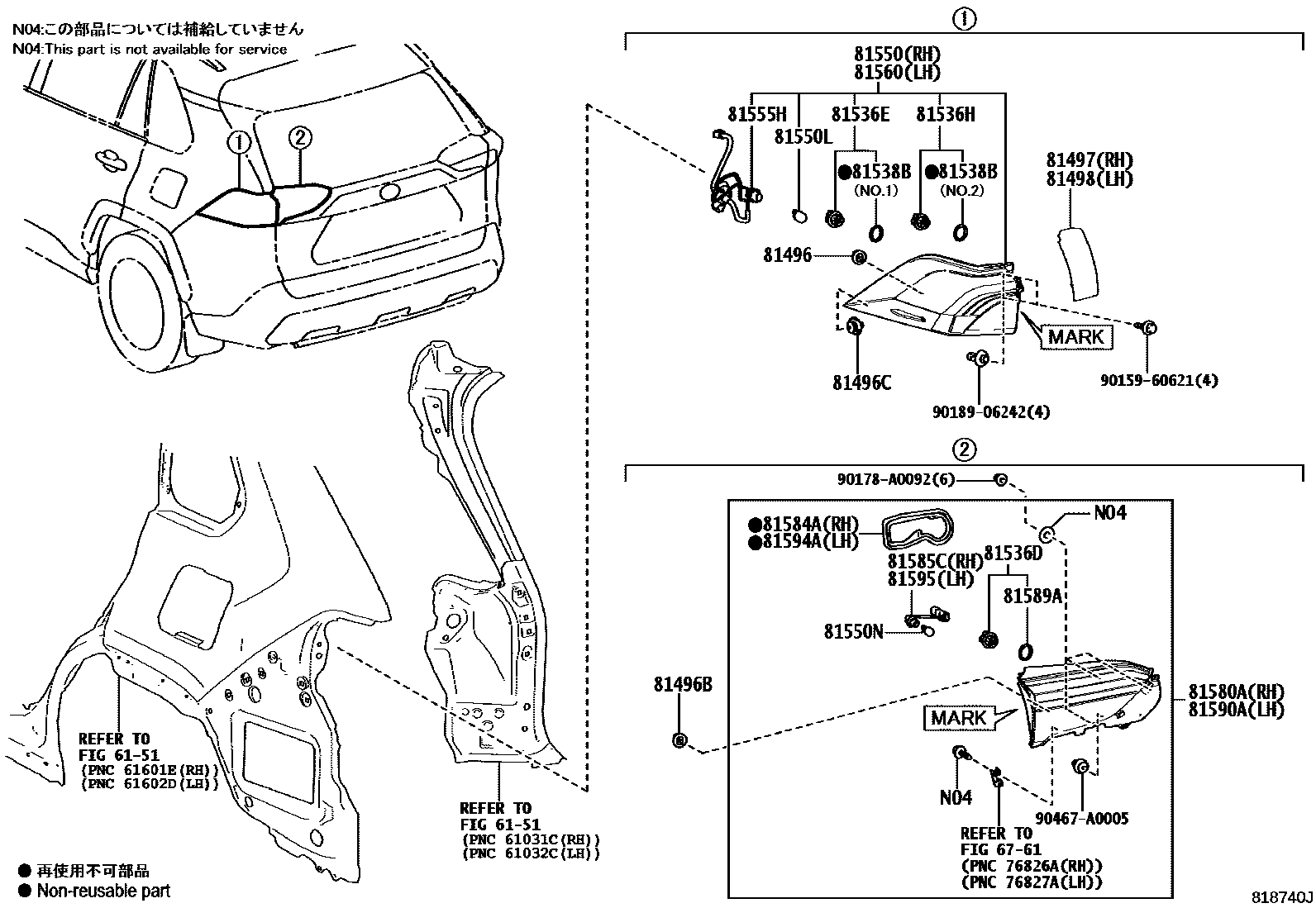

REAR COMBINATION LAMP
6151SIDE MEMBER
6761BACK DOOR PANEL & GLASS
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81536DLED, TAILLAMP
81536ELED, STOP LAMP
81536HLED, TAILLAMP, NO.2
81538BGASKET, REAR COMBINATION LAMP, NO.3 RH
NO.1,NO.2
81550LAMP ASSY, REAR COMBINATION, RH
VALEO
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81555HSOCKET & WIRE, REAR COMBINATION LAMP
81560LAMP ASSY, REAR COMBINATION, LH
VALEO
81580ALAMP ASSY, REAR
VALEO
81584AGASKET, REAR LAMP RH
81585CSOCKET & WIRE, REAR LAMP, RH
81589AGASKET, REAR LAMP
81590ALAMP ASSY, REAR, LH
VALEO
81594AGASKET, REAR LAMP LH
81595SOCKET & WIRE, REAR LAMP, LH
9015960621
main90159-60621
90178A0092
main90178-A0092
9018906242
main90189-06242
90467A0005
main90467-A0005
27 parts on this diagram · 2 diagrams in section
