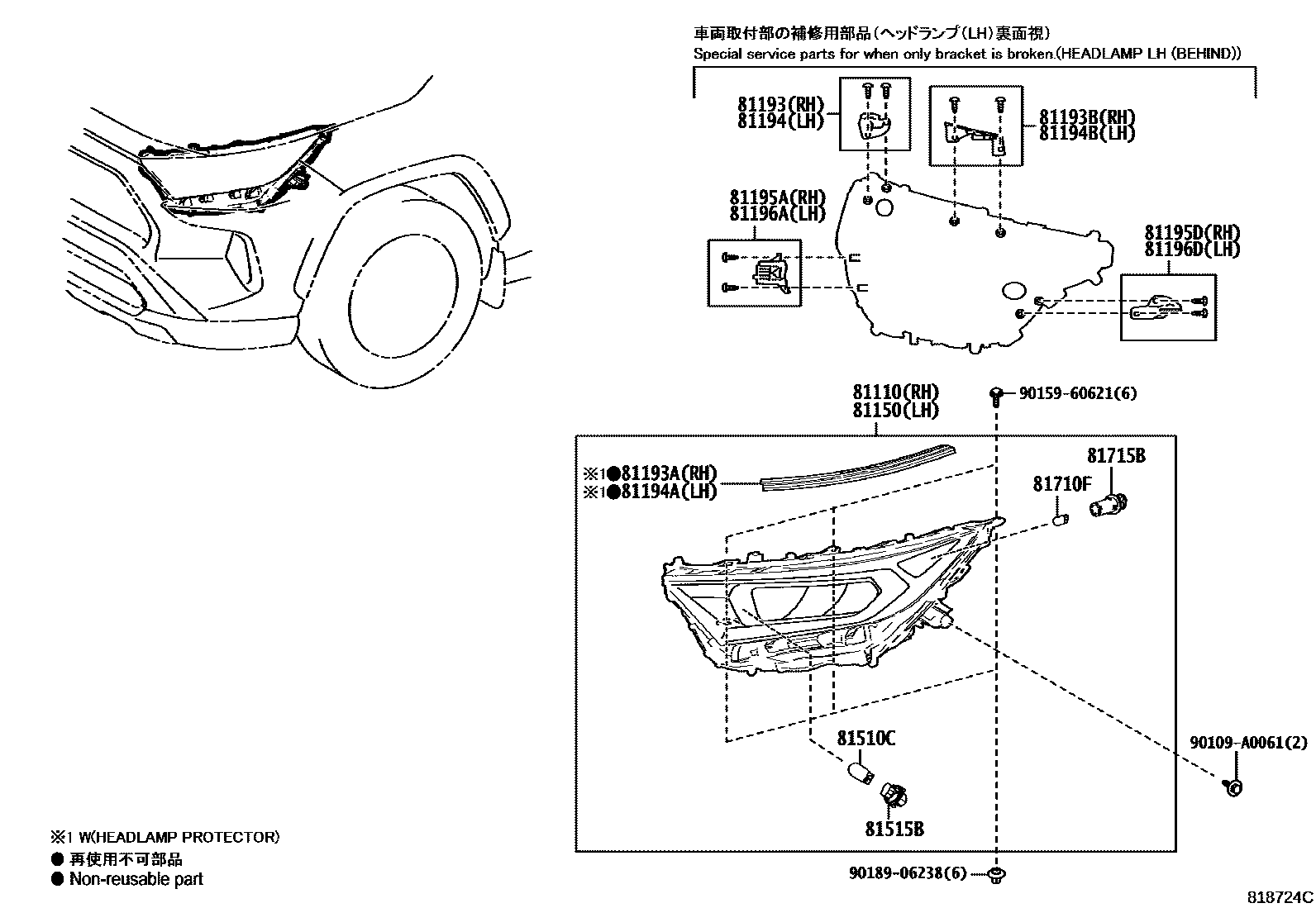

HEADLAMP

0001 1MULTI REFLECTOR TYPE 0003 1PROJECTOR TYPE W/O(*AFLS) 0004 1PROJECTOR TYPE W(*AFLS) 0005 1 0006 1PROJECTOR TYPE

81110HEADLAMP ASSY, RH

main81110-0R140iAXAA5#..G,M,V201812-202006

main81110-0R141iAXAA5#..G,M,V202007-202009

main81110-0R142iAXAA5#..G,M,V202101-202112

main81110-0R150iAXAA5#,AXAH54..X201812-202006

main81110-0R151iAXAA5#,AXAH54,AXAL54..X202007-202009

main81110-0R152iAXAH54,AXAL54..X202101-202112

main81110-0R160iAXAH54..G,M201903-202006

main81110-0R161iAXAH54,AXAL54..G,M202009-202101

main81110-0R162iAXAH54,AXAL54..G,M202101-202112

main81110-0R350iAXAA54..M,V;AXAA54..X..USA;AXAA52..(M,X)..USA202211

main81110-0R360iAXAA5#,AXAH54,AXAL54..G,P,S202211

main81110-0R430iAXAH54,AXAL54..X202112-202211

main81110-0R440iAXAH54,AXAL54..M202112-202211

81150HEADLAMP ASSY, LH

main81150-0R140iAXAA5#..G,M,V201812-202006

main81150-0R141iAXAA5#..G,M,V202007-202009

main81150-0R142iAXAA5#..G,M,V202101-202112

main81150-0R150iAXAA5#,AXAH54..X201812-202006

main81150-0R151iAXAA5#,AXAH54,AXAL54..X202009-202012

main81150-0R152iAXAA5#..X..CND; AXAA52..X..USA202211

MEXICO SPEC

main81150-0R160iAXAH54..G,M201903-202006

main81150-0R161iAXAH54,AXAL54..G,M202009-202101

main81150-0R162iAXAH54,AXAL54..G,M202101-202112

main81150-0R350iAXAA54..M,V;AXAA52..M..USA202112-202211

main81150-0R360iAXAA5#,AXAH54,AXAL54..G,P,S202211

main81150-0R430iAXAH54,AXAL54..X202112-202211

main81150-0R440iAXAH54..M..CND;AXAH54,AXAL54..(M,X)..USA202211

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-42050iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

81193APROTECTOR, HEADLAMP, RH

main81117-42831iAXAH54,AXAL54..M,X202211

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-42060iAXAA5#,AXAH54,AXAL54201812-202009

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-42050iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

81194APROTECTOR, HEADLAMP, LH

main81157-42831iAXAH54,AXAL54..M,X202112-202211

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-42060iAXAA5#,AXAH54,AXAL54201812-202009

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42050iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-42060iAXAA5#,AXAH54,AXAL54201812-202009

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42050iAXAA5#,AXAH54,AXAL54201812-202009

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-42060iAXAA5#,AXAH54,AXAL54201812-202009

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15025×2iAXAA5#,AXAH54,AXAL54201812-202009

12V 28/8W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60083×2iAXAA5#..G202009-202112

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11065×2iAXAH54,AXAL54..G,M202101-202112

main90981-11064×2iAXAH54,AXAL54..G..USA202009-202112

HEAD LAMP-PROJECTOR & WITH(*AHB & AFS)

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main81138-22680×2iAXAA5#,AXAH54,AXAL54201812-202009

90109A0061

main90109-A0061

9015960621

main90159-60621

9018906238

main90189-06238

19 parts on this diagram · 5 diagrams in section
