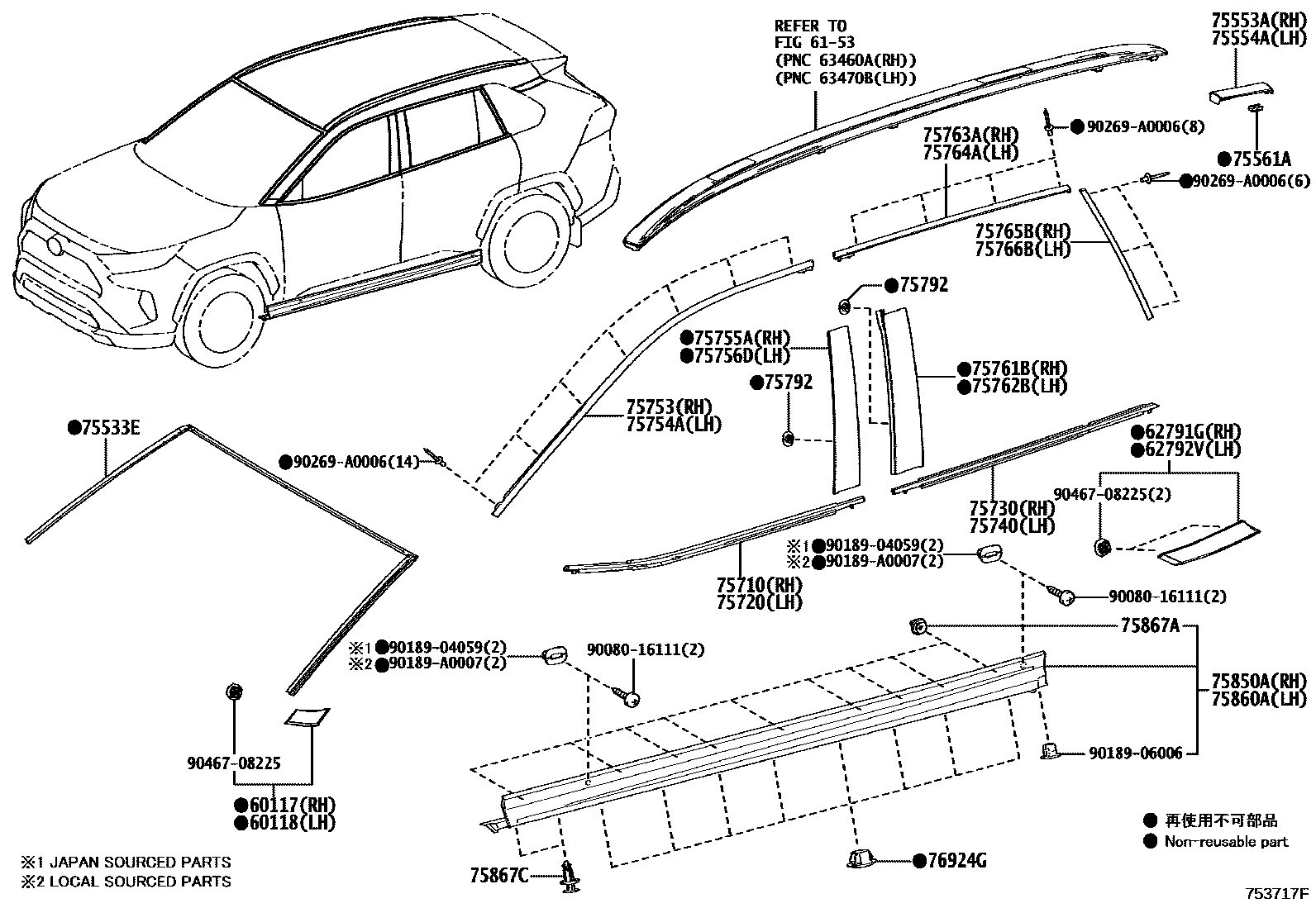

MOULDING

0001 1W(ROOF RAIL) 0002 1W/O(ROOF RAIL) 0003 1 0004 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0R050iAXAA5#,AXAH54201812-201909

main60117-0R051iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0R050iAXAA5#,AXAH54201812-201909

main60118-0R051iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

6153ROOF PANEL & BACK PANEL

→ Go to FIG 61-53

62791GMOULDING, QUARTER WINDOW, UPPER RH

main62791-0R010iAXAA5#..M,V,X;AXAH54,AXAL54..X201812-202009

main62791-0R050iAXAH54,AXAL54..X202112-202211

62792VMOULDING, QUARTER WINDOW, UPPER LH

main62792-0R010iAXAA5#..M,V,X;AXAH54,AXAL54..X201812-202009

main62792-0R050iAXAA5#..G;AXAH54,AXAL54..G,M201812-202009

75533EMOULDING, WINDSHIELD, OUTSIDE

main75533-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-0R050iAXAA5#,AXAH54,AXAL54201812-202009

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-0R050iAXAA5#,AXAH54,AXAL54201812-202009

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-02020×2iAXAA5#,AXAH54,AXAL54201812-202009

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-0R050iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-0R050iAXAA5#,AXAH54,AXAL54201812-202009

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-0R050iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-0R050iAXAA5#,AXAH54,AXAL54201812-202009

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75071-0R010iAXAA5#,AXAH54,AXAL54201812-202009

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75072-0R010iAXAA5#,AXAH54,AXAL54201812-202009

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-0R030iAXAA5#,AXAH54,AXAL54201812-202009

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75075-0R030iAXAA5#,AXAH54,AXAL54201812-202009

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75076-0R030iAXAA5#,AXAH54,AXAL54201812-202009

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-0R010iAXAA5#,AXAH54,AXAL54201812-202009

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-0R010iAXAA5#,AXAH54,AXAL54201812-202009

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-0R010iAXAA5#,AXAH54,AXAL54201812-202009

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-0R010iAXAA5#,AXAH54,AXAL54201812-202009

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0R010×4iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-0R010iAXAA5#,AXAH54,AXAL54201812-202009

main75850-0R011iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202101-202211

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-0R010iAXAA5#,AXAH54,AXAL54201812-202009

main75860-0R011iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202101-202211

75867ACLIP, ROCKER PANEL MOULDING

main75867-30130×18iAXAA52..M..CND202101

main75867-AA010×18iAXAA5#,AXAH54,AXAL54202009-202012

75867CCLIP, ROCKER PANEL MOULDING

main75867-30120×4iAXAA5#,AXAH54,AXAL54201812-202009

76924GRETAINER, ROCKER PANEL MOULDING

main76924-12040×16iAXAA5#,AXAH54201812-201910

main90467-22017×16iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

9008016111

main90080-16111

9018904059

main90189-04059

9018906006

main90189-06006

90189A0007

main90189-A0007

90269A0006

main90269-A0006

9046708225

main90467-08225

35 parts on this diagram · 4 diagrams in section
