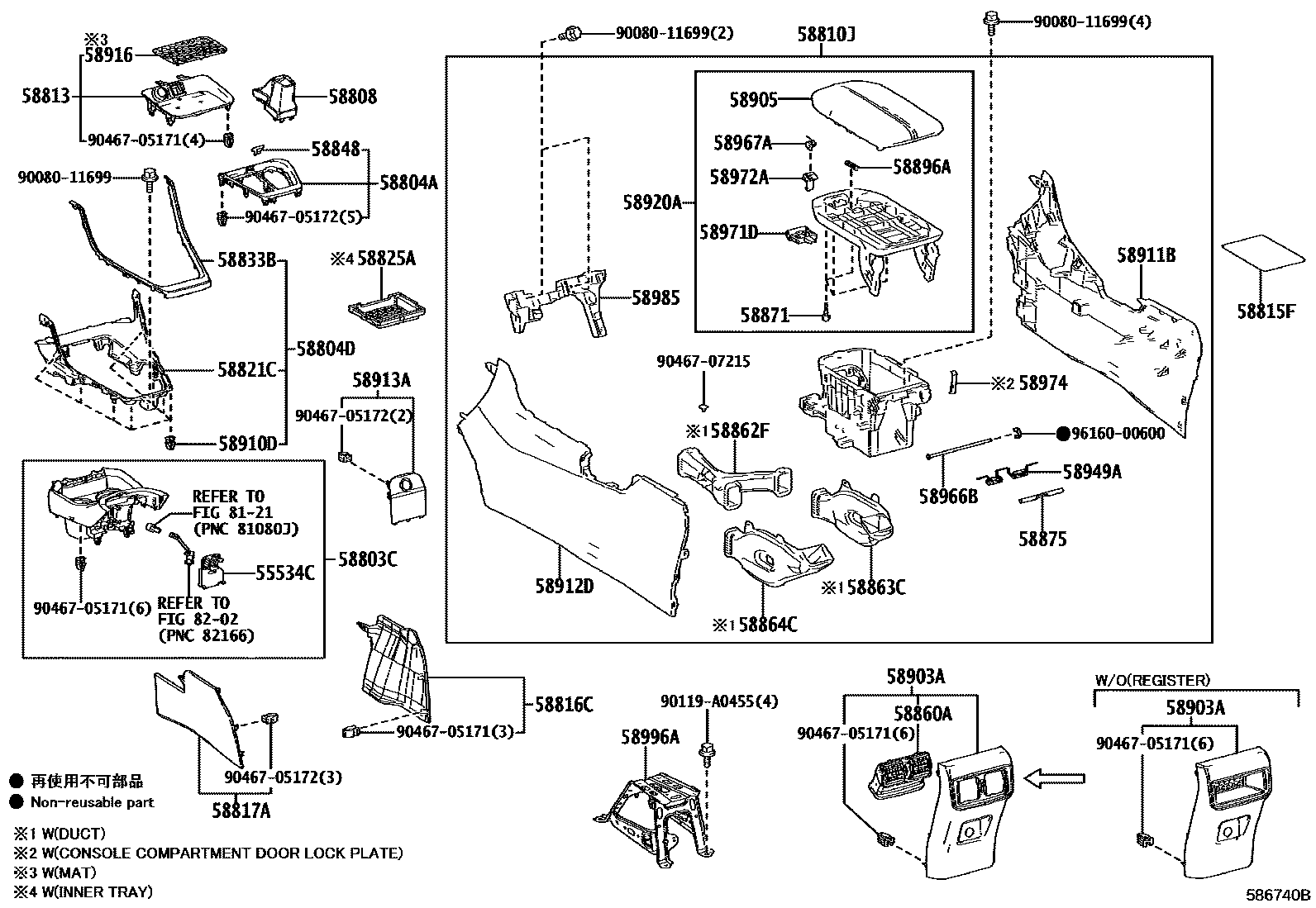

CONSOLE BOX & BRACKET
55534CCOVER, ILLUMINATION LAMP HOLE
WITH(BODY STRIPE)
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
BLACK, BLACK,TRIM2#,4#
BLACK, BLACK,TRIM1#,2#,4#
BLACK, DK. BROWN,TRIM1#,2#,4#
BLACK, ORANGE,TRIM20,4#
BLACK, ORANGE,TRIM2#,4#
BLACK/SENSUAL RED,TRIM20
BLACK, BLACK,TRIM2#,4#
BLACK, BLACK,TRIM2#
BLACK, BLACK,TRIM1#,2#,4#
BLACK/BLACK,TRIM2#
BLACK/SENSUAL RED,TRIM20
BLACK/DK.BROWN,TRIM1#,2#,4#
BLACK/ORANGE,TRIM20,4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
AUDIO-6PEAKER & 8INCH DISPLAY & XM,BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL(SYNTHETIC LEATHER),BLACK, BLACK,TRIM1#,2#,4#
BLACK, BLACK,TRIM2#,4#
BLACK, BLACK,TRIM1#,2#,4#
BLACK, BLACK,TRIM2#
58813BOX, CONSOLE, UPPER
SEAT COVER MATERIAL(SYNTHETIC LEATHER),BLACK,TRIM1#,2#,4#
WIRELESS CHARGER-WITH,BLACK,TRIM20
BLACK,TRIM20
WIRELESS CHARGER-WITH,BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SENSUAL RED,TRIM20
WIRELESS CHARGER-WITH,BLACK/SENSUAL RED,TRIM20
WIRELESS CHARGER-WITH,BLACK/ORANGE,TRIM20,4#
BLACK/ORANGE,TRIM20,4#
WIRELESS CHARGER-WITH,DK.BROUN,TRIM1#,2#,4#
DK.BROUN,TRIM1#,2#,4#
ORANGE,TRIM20,4#
WIRELESS CHARGER-WITH,ORANGE,TRIM20,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
SEAT COVER MATERIAL(SYNTHETIC LEATHER)&WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#,4#
WIRELESS CHARGER-WITH,BLACK,TRIM2#,4#
WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
WIRELESS CHARGER-WITH,BLACK,TRIM2#
58815FCARPET, CONSOLE BOX
58816CINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
58821CPANEL, CONSOLE, UPPER
58825APOCKET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58848COVER, SHIFT LEVER HOLE
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
AUDIO-6PEAKER & 8INCH DISPLAY & XM,BLACK,TRIM1#,2#,4#
58862FDUCT, CONSOLE BOX, NO.2
AUDIO-6PEAKER & 8INCH DISPLAY & XM
58863CDUCT, CONSOLE BOX, NO.3
AUDIO-6PEAKER & 8INCH DISPLAY & XM
58864CDUCT, CONSOLE BOX, NO.4
AUDIO-6PEAKER & 8INCH DISPLAY & XM
58871CUSHION, CONSOLE BOX
58875SPACER, CONSOLE BOX
58896ASPRING, TRASH BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
AUDIO-6PEAKER & 8INCH DISPLAY & XM,BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
AUDIO-6PEAKER & 8INCH DISPLAY & XM,BLACK,TRIM1#,2#,4#
AUDIO JACK-FRONT:USB3,REAR:USB2,BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK, BLACK,TRIM1#,2#,4#
BLACK, BLACK,TRIM2#,4#
SEAT COVER MATERIAL(SYNTHETIC LEATHER),BLACK, BLACK,TRIM1#,2#,4#
BLACK, BLACK,TRIM2#
58910DCLIP(FOR CONSOLE BOX)
58911BPANEL, BOX, NO.1
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58912DPANEL, BOX, NO.2
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58913APANEL, BOX, NO.3
AUDIO-6PEAKER & 8INCH DISPLAY & XM
58916MAT, BOX BOTTOM
WIRELESS CHARGER-WITH,BLACK,TRIM2#
BLACK,TRIM20
SEAT COVER MATERIAL(SYNTHETIC LEATHER),BLACK,TRIM10,20,40
WIRELESS CHARGER-WITH,BLACK,TRIM20
BLACK,TRIM2#,4#
BLACK,TRIM2#
SEAT COVER MATERIAL(SYNTHETIC LEATHER),BLACK,TRIM1#,2#,4#
WIRELESS CHARGER-WITH,BLACK,TRIM2#,4#
BLACK,TRIM20,41
WITH(BODY STRIPE),BLACK,TRIM1#,2#,4#
WIRELESS CHARGER-WITH,BLACK,TRIM20,41
SEAT COVER MATERIAL(SYNTHETIC LEATHER),DK.BROUN,TRIM10,20,40
WIRELESS CHARGER-WITH,DK.BROUN,TRIM1#,2#,4#
DK.BROUN,TRIM1#,2#,4#
ORANGE,TRIM20,4#
WIRELESS CHARGER-WITH,ORANGE,TRIM20,4#
WIRELESS CHARGER-WITH,ORANGE,TRIM20,41
ORANGE,TRIM20,41
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL(SYNTHETIC LEATHER),BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
SEAT COVER MATERIAL(SYNTHETIC LEATHER)
58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER
58967ASPRING, CONSOLE DOOR STOPPER
58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58972ABASE, CONSOLE COMPARTMENT DOOR LOCK
58974PLATE, CONSOLE COMPARTMENT DOOR LOCK
SEAT COVER MATERIAL(SYNTHETIC LEATHER)
58985RETAINER, CONSOLE BOX
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
8202
9008011699
main90080-11699
90119A0455
main90119-A0455
9046705171
main90467-05171
9046705172
main90467-05172
9046707215
main90467-07215
9616000600
main96160-00600
45 parts on this diagram · 1 diagram in section
