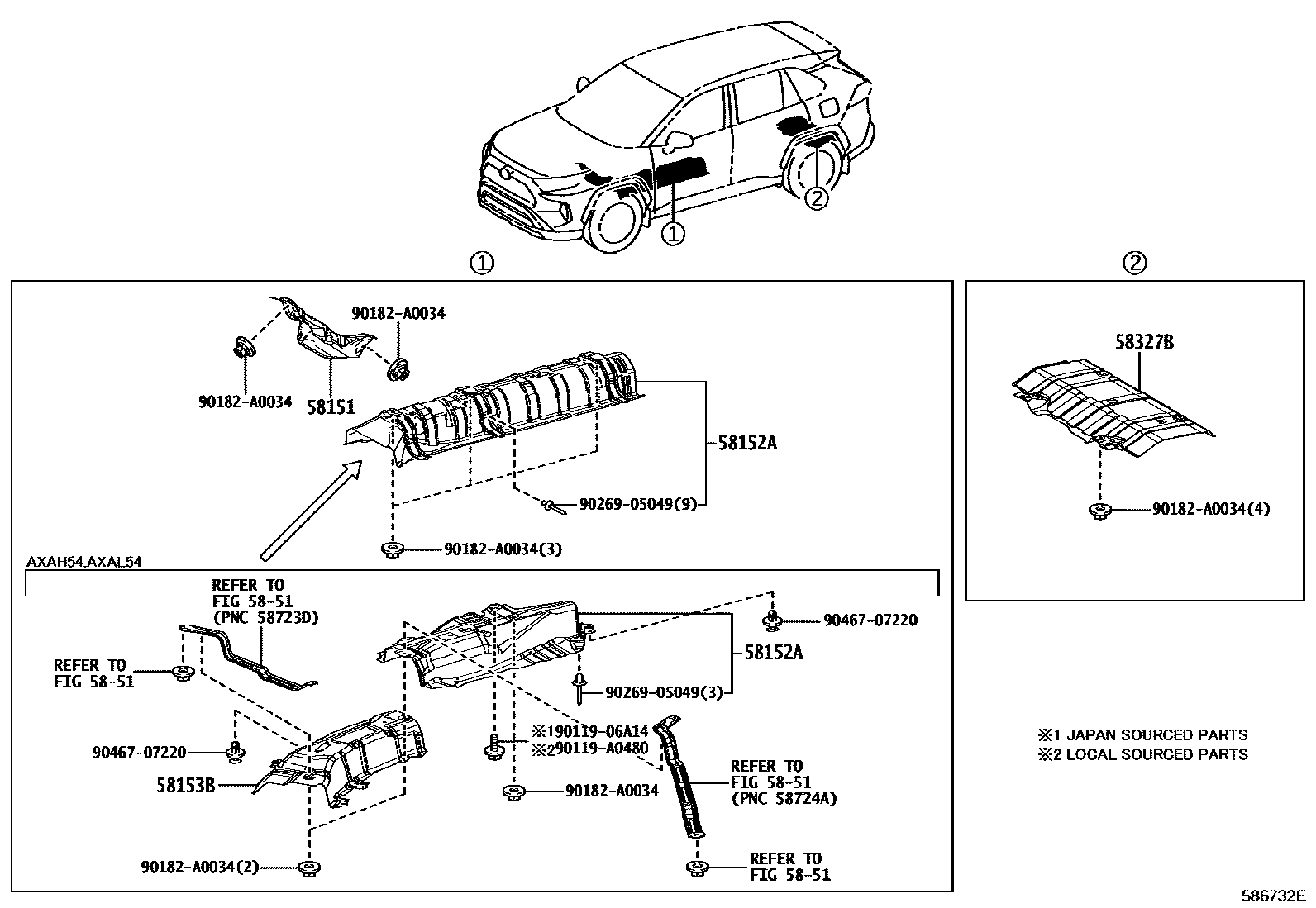

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0R020iAXAA5#,AXAH54,AXAL54201812-202009

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-0R060iAXAH54,AXAL54202211

main58720-0R010iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-0R020iAXAH54,AXAL54201903-202009

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0R030iAXAA5#,AXAH54,AXAL54201812-202009

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9011906A14

main90119-06A14

90119A0480

main90119-A0480

90182A0034

main90182-A0034

9026905049

main90269-05049

9046707220

main90467-07220

10 parts on this diagram · 1 diagram in section
