INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

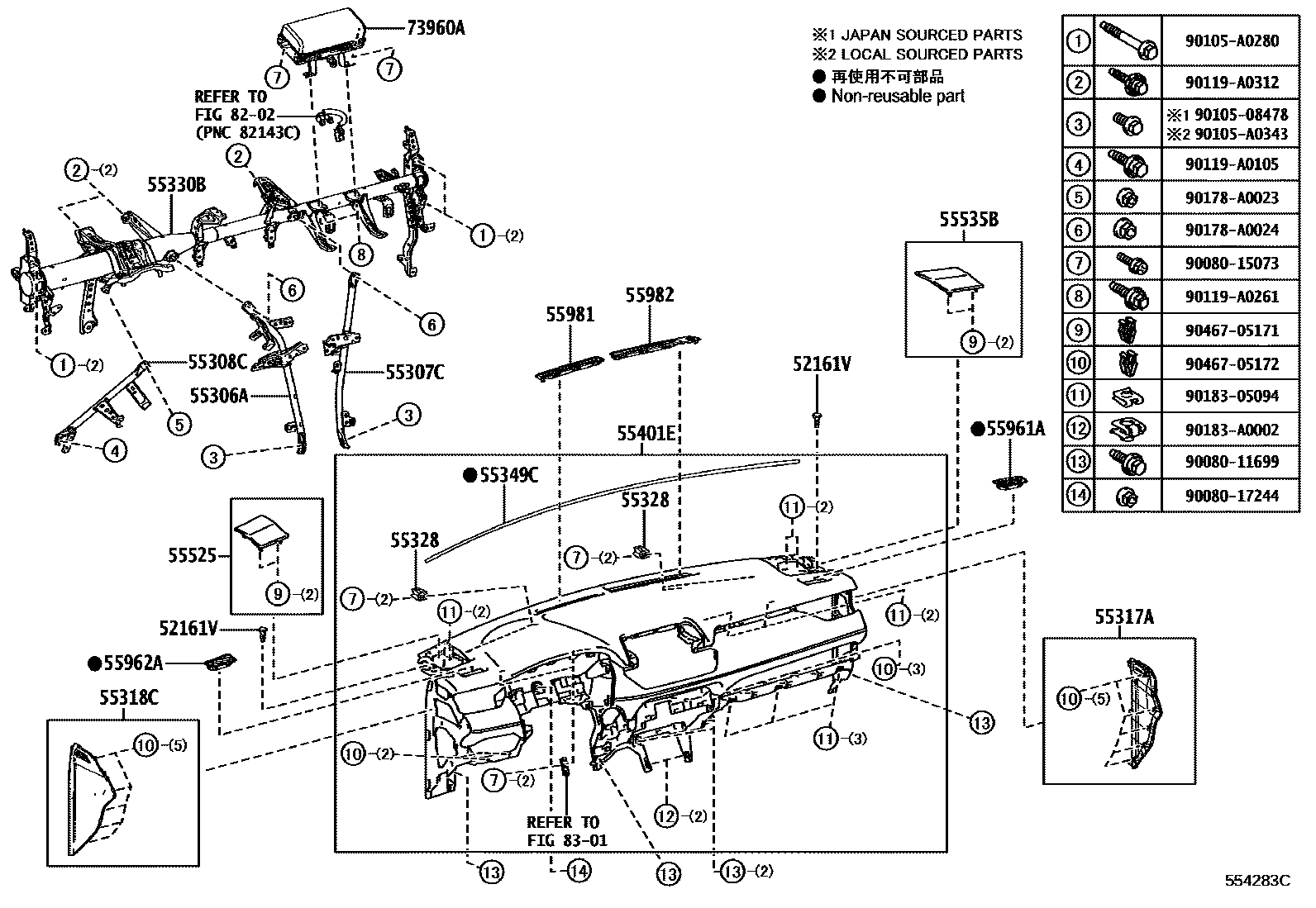

52161VPIECE, INSTRUMENT PANEL

main52161-02020×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

(J)

main52161-16010×2iAXAA52..M..CND202009

(L)

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0R070iAXAA52..M..CND202009

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0R040iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0R010iAXAA52..M..CND202009

55317APANEL, INSTRUMENT SIDE, RH

main55317-0R050-C0iAXAA5#,AXAH54,AXAL54..V,X; AXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M; AXAH54,AXAL54..P,S202211

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0R020-C0iAXAA5#,AXAH54,AXAL54..V,X; AXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M; AXAH54,AXAL54..P,S202211

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0R100iAXAA5#,AXAH54,AXAL54201812-202009

55349CCUSHION, INSTRUMENT PANEL

main55349-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0R010-21iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..G,M,X202009-202211

SOFT BLACK/GALLANTB/CAMEL,TRIM4#

main55401-0R010-22iAXAH54,AXAL54..M201903-202009

SOFT BLACK/SOFT BLAC/BLUE,TRIM20

main55401-0R010-23iAXAA54..G,M,X;AXAA52..M..USA;AXAA52,AXAH54,AXAL54..G,X; AXAH54,AXAL54..M202009-202211

SOFT BLACK/SOFT B/LT.GRAY,TRIM2#; SOFT BLACK/SOFT B/LT.GRAY,TRIM20

main55401-0R010-24iAXAA54..V201910-202009

SOFT BLACK/SOFTBLA/ORANGE,TRIM20

main55401-0R010-25iAXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M202009-202211

SOFT BLACK/LT.GRAY/CAMEL,TRIM1#

main55401-0R010-26iAXAA54..V202211

SOFT BLACK/LT.GRAY/ORANGE,TRIM4#

main55401-0R010-27iAXAA54..V201910-202009

SOFT BLACK/SOFT BLACK/RED,TRIM20

55525COVER, SPEAKER HOLE, NO.1

main55525-0R050-C0iAXAA5#,AXAH54,AXAL54..V,X; AXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M; AXAH54,AXAL54..P,S202211

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-0R050-C0iAXAA5#,AXAH54,AXAL54..V,X; AXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M; AXAH54,AXAL54..P,S202211

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

55961ANOZZLE, SIDE DEFROSTER, RH

main55962-0R010-C0iAXAA5#,AXAH54,AXAL54..V,X; AXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M; AXAH54,AXAL54..P,S202211

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

55962ANOZZLE, SIDE DEFROSTER, LH

main55961-0R010-C0iAXAA54..V;AXAL54..X; AXAL54..G,M;AXAA5#,AXAH54..G,M,X201812-202009

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0R010-C0iAXAA5#,AXAH54,AXAL54..V,X; AXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M; AXAH54,AXAL54..P,S202211

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-0R010-C0iAXAA54..V;AXAL54..X; AXAL54..G,M;AXAA5#,AXAH54..G,M,X201812-202009

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0R060iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

8202WIRING & CLAMP

→ Go to FIG 82-02

8301METER

→ Go to FIG 83-01

9008011699

main90080-11699

9008015073

main90080-15073

9008017244

main90080-17244

9010508478

main90105-08478

90105A0280

main90105-A0280

90105A0343

main90105-A0343

90119A0105

main90119-A0105

90119A0261

main90119-A0261

90119A0312

main90119-A0312

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9018305094

main90183-05094

90183A0002

main90183-A0002

9046705171

main90467-05171

9046705172

main90467-05172

34 parts on this diagram · 4 diagrams in section
