FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1AIRGUIDE & RADIATOR SUPPORT C0004 1AIRGUIDE & RADIATOR SUPPORT C0005 1RADIATOR SUPPORT & FENDER APR0006 1RADIATOR SUPPORT & FENDER APR0007 1RADIATOR SUPPORT & FENDER APR0008 1RADIATOR SUPPORT & FENDER APR0009 1DASH PANEL

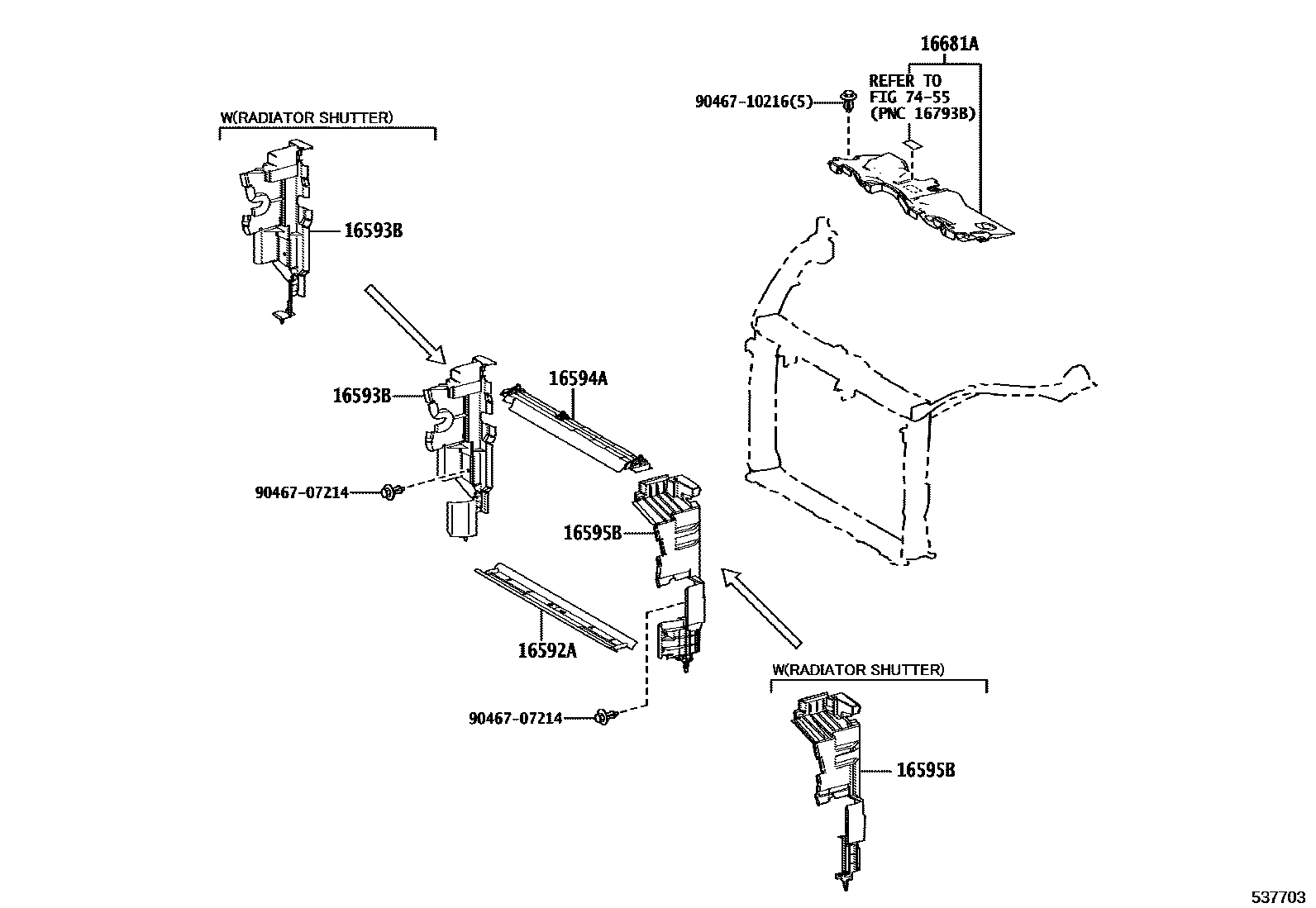

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0080iA25AFKS..AXAA52..M..CND202009

main16592-F0090iA25AFXS..AXAH54,AXAL54201903-202009

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0130iA25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54202009-202112

main16593-F0140iA25AFKS..AXAA5#..M,X201812-202009

main16593-F0550iA25AFKS..AXAA52..G202211-202310

main16593-F0560iA25#..AXAA54,AXAH54..(G,V)..USA; A25AFKS..AXAA52..X;A25AFKS..AXAA54..M,X;A25AFKS..AXAA52..M..USA202112-202211

MEXICO SPEC

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0080iA25#..AXAA5#,AXAH54,AXAL54201812-202009

main16594-F0150iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202112-202211

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0130iA25AFXS..AXAH54,AXAL54201903-202009

main16595-F0140iA25#..AXAA54,AXAH54..(G,V)..USA; A25AFKS..AXAA5#..M,X202009-202112

MEXICO SPEC

main16595-F0220iA25AFKS..AXAA5#..G,V202009-202112

main16595-F0570iA25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54202112-202211

main16595-F0580iA25AFKS..AXAA52..M..CND202112

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-F0020iA25AFKS..AXAA52..M..CND202009

main16681-F0030iA25AFXS..AXAH54,AXAL54201903-202009

7455CAUTION PLATE

→ Go to FIG 74-55

9046707214

main90467-07214

9046710216

main90467-10216

8 parts on this diagram · 9 diagrams in section
