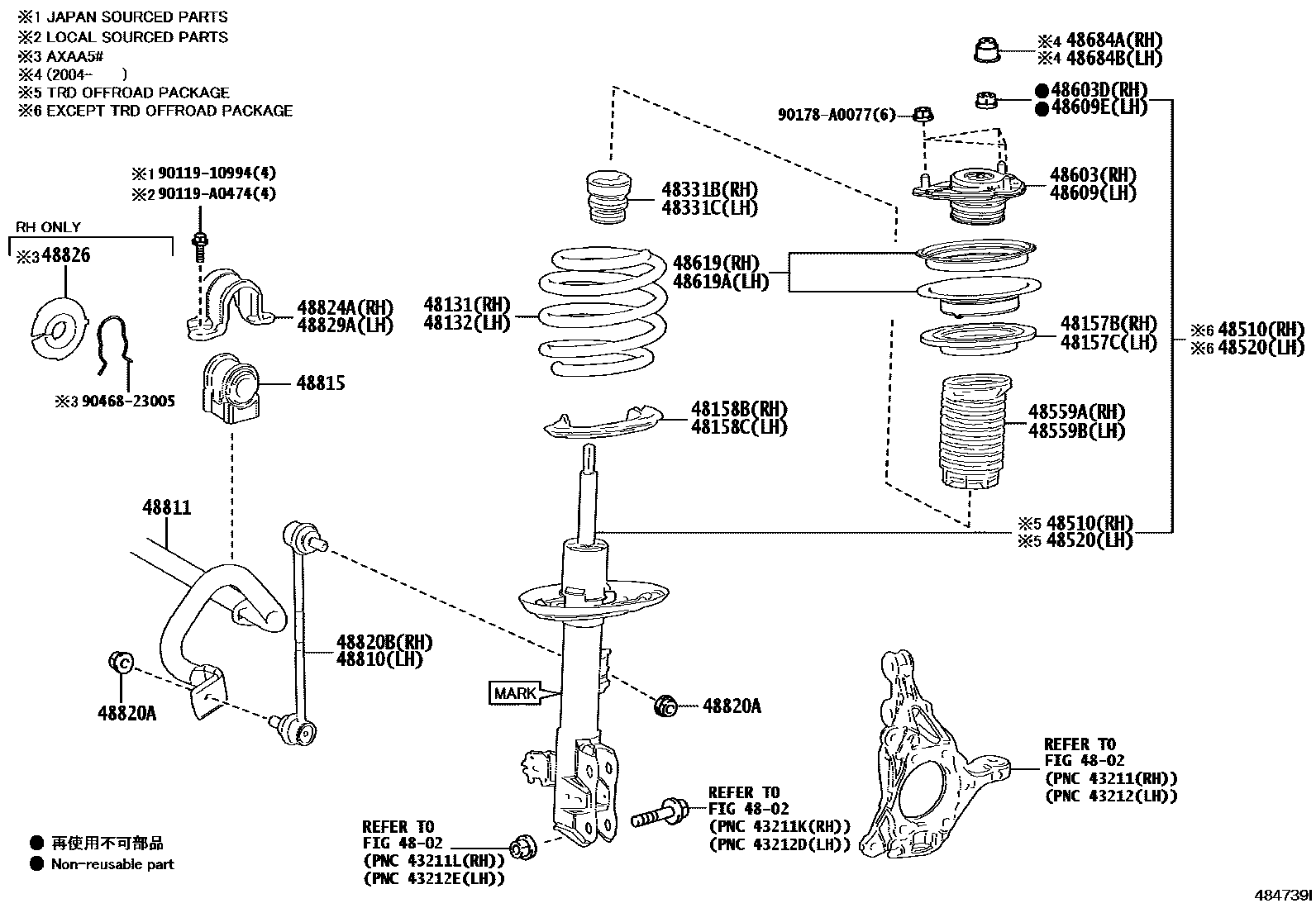

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-0R200iAXAA52..M,X201812-202112

main48131-0R250iAXAA54..X;AXAA52..G,X;AXAA52..M..USA201812-202211

main48131-0R260iAXAA54..G,V201812-202211

main48131-0R310iAXAH54,AXAL54..G,M,X201903-202211

main48131-0R470iAXAH54,AXAL54..P,S202112-202211

48132SPRING, FRONT COIL, LH

main48131-0R200iAXAA52..M,X201812-202112

main48131-0R250iAXAA52..X;AXAA52..M..USA201812-202211

main48131-0R260iAXAA54..G,V201812-202211

main48131-0R310iAXAH54,AXAL54..G,M,X201903-202211

main48131-0R470iAXAH54,AXAL54..P,S202112-202211

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06220iAXAA5#,AXAH54,AXAL54201812-202211

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06220iAXAA52..M..CND201812-202211

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06260iAXAA5#,AXAH54,AXAL54201812-202211

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06260iAXAA5#,AXAH54,AXAL54201812-202211

48331BBUMPER, FRONT SPRING, RH

main48331-0R050iAXAA52..M..CND201812-202211

48331CBUMPER, FRONT SPRING, LH

main48331-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z375iAXAA5#201812-202211

MARK 48510-0R170

main48510-8Z376iAXAH54,AXAL54..G,M,X201903-202211

MARK 48510-0R180

main48510-8Z377iAXAH54,AXAL54..P,S202112-202211

MARK 48510-0R250

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z227iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202211

MARK 48520-0R170

main48520-8Z228iAXAH54,AXAL54..G,M,X201903-202211

MARK 48520-0R180

main48520-8Z229iAXAH54,AXAL54..P,S202112-202211

MARK 48520-0R250

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-0R030iAXAA5#,AXAH54,AXAL54201812-202211

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-0R030iAXAA5#,AXAH54,AXAL54201812-202211

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0R050iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAXAA52..M..CND201812-202211

(J)

main90177-A0019iAXAA5#,AXAH54,AXAL54201812-202211

(L)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

(J)

main90177-A0019iAXAA5#,AXAH54,AXAL54201812-202211

(L)

48619BEARING, STRUT MOUNTING, RH

main48619-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48619ABEARING, STRUT MOUNTING, LH

main48619-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iAXAA5#,AXAH54,AXAL54202004-202211

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iAXAA52..M..CND202004-202211

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0R050iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

48811BAR, STABILIZER, FRONT

main48811-0R060iAXAA5#,AXAH54,AXAL54201812-202211

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06260iAXAA5#,AXAH54,AXAL54201812-202211

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-A0080iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

(L)

main94151-21241iAXAA52..M..CND201812-202211

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06040iAXAA52..M..CND201812-202211

48826PROTECTOR, FRONT STABILIZER BAR

main48826-0R010iAXAA5#201812-202211

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06040iAXAA5#,AXAH54,AXAL54201812-202211

9011910994

main90119-10994

90119A0474

main90119-A0474

90178A0077

main90178-A0077

9046823005

main90468-23005

33 parts on this diagram · 1 diagram in section
