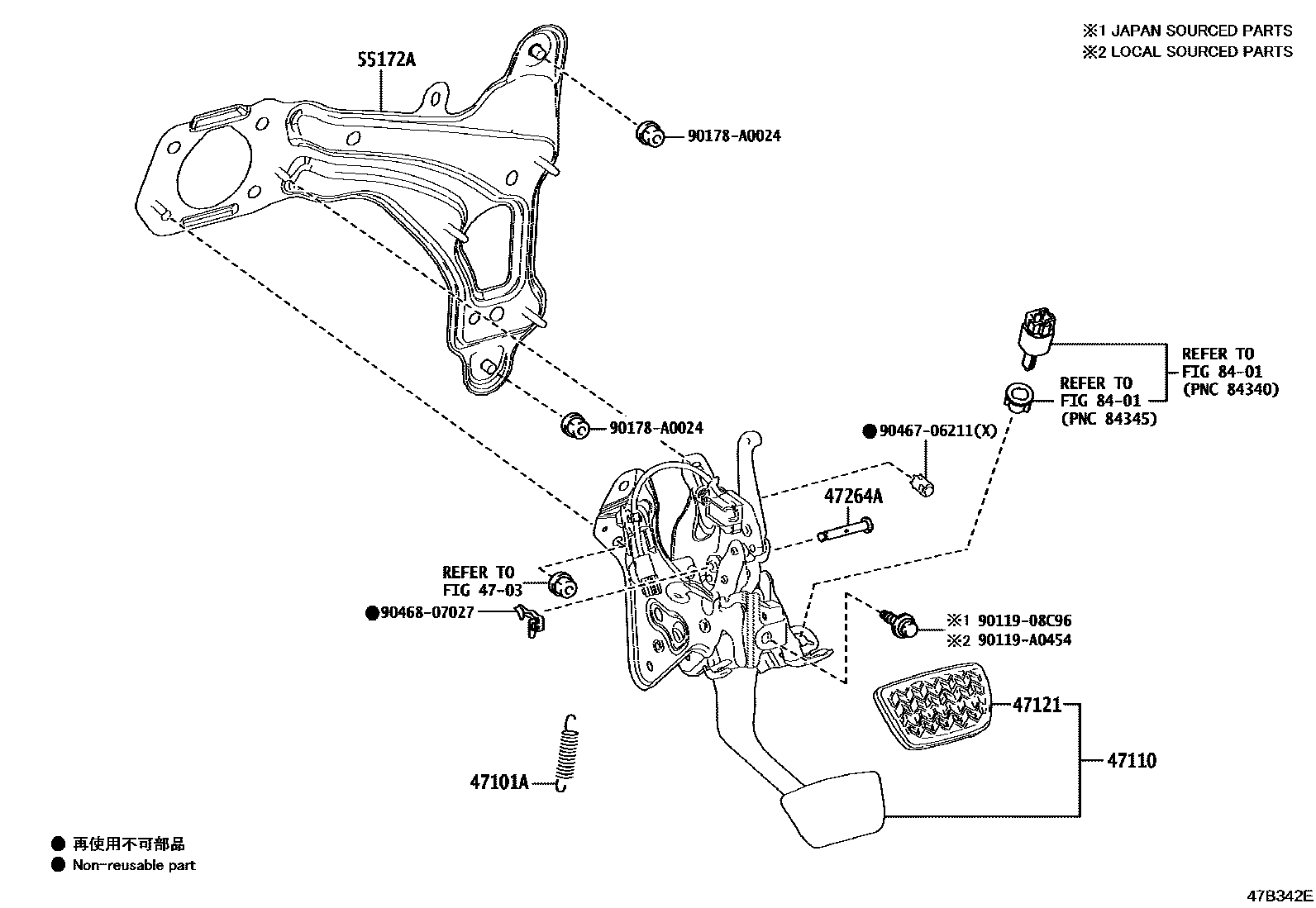

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXAA5#,AXAH54,AXAL54201812-202009

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R110iAXAA5#202009-202112

main47110-0R120iAXAH54,AXAL54202009-202112

main47110-0R200iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

main47110-0R220iAXAH54,AXAL54202112-202211

47121PAD, BRAKE PEDAL

main47121-48010iAXAA5#,AXAH54,AXAL54202009-202112

main47121-62010iAXAA52..M..CND202112

47264APIN(FOR PUSH ROD)

main90240-06028iAXAA52..M..CND202009

main90240-08082iAXAH54,AXAL54202211

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0R010iAXAA52..M..CND202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

90119A0454

main90119-A0454

90178A0024

main90178-A0024

9046706211

main90467-06211

9046807027

main90468-07027
