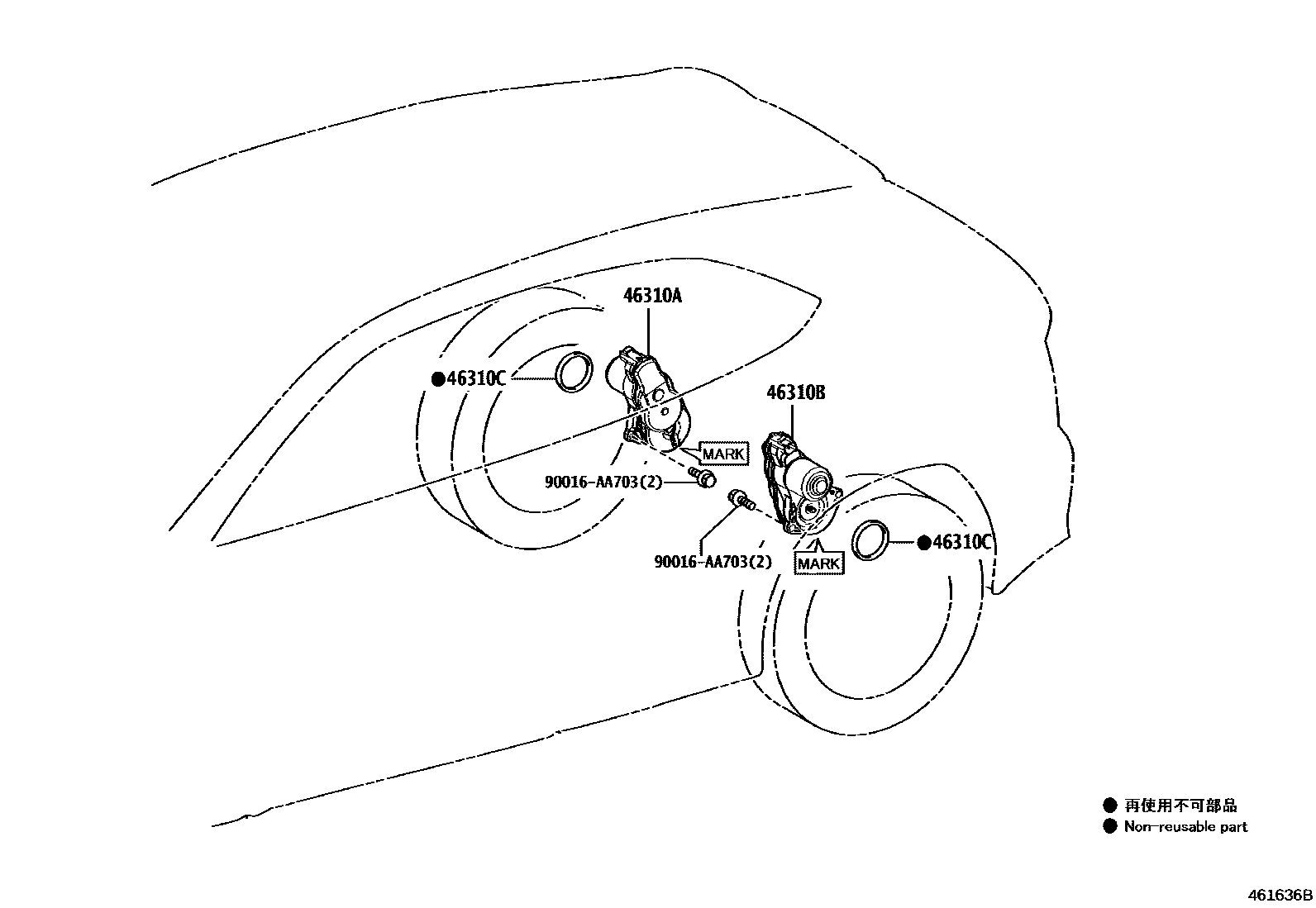

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-07010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202406

MARK 46310-07010

main46310-0A010iAXAA54,AXAH54,AXAL54202311

MARK 46310-0A010

main46310-33010iAXAA52..M..CND202009

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-07010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202406

MARK 46310-07010

main46310-0A010iAXAA52..G,X;AXAA52..M..USA202310

MARK 46310-0A010

main46310-33010iAXAA5#,AXAH54,AXAL54202009

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005×2iAXAA5#,AXAH54,AXAL54201812-202009

90016AA703

main90016-AA703

4 parts on this diagram · 1 diagram in section
